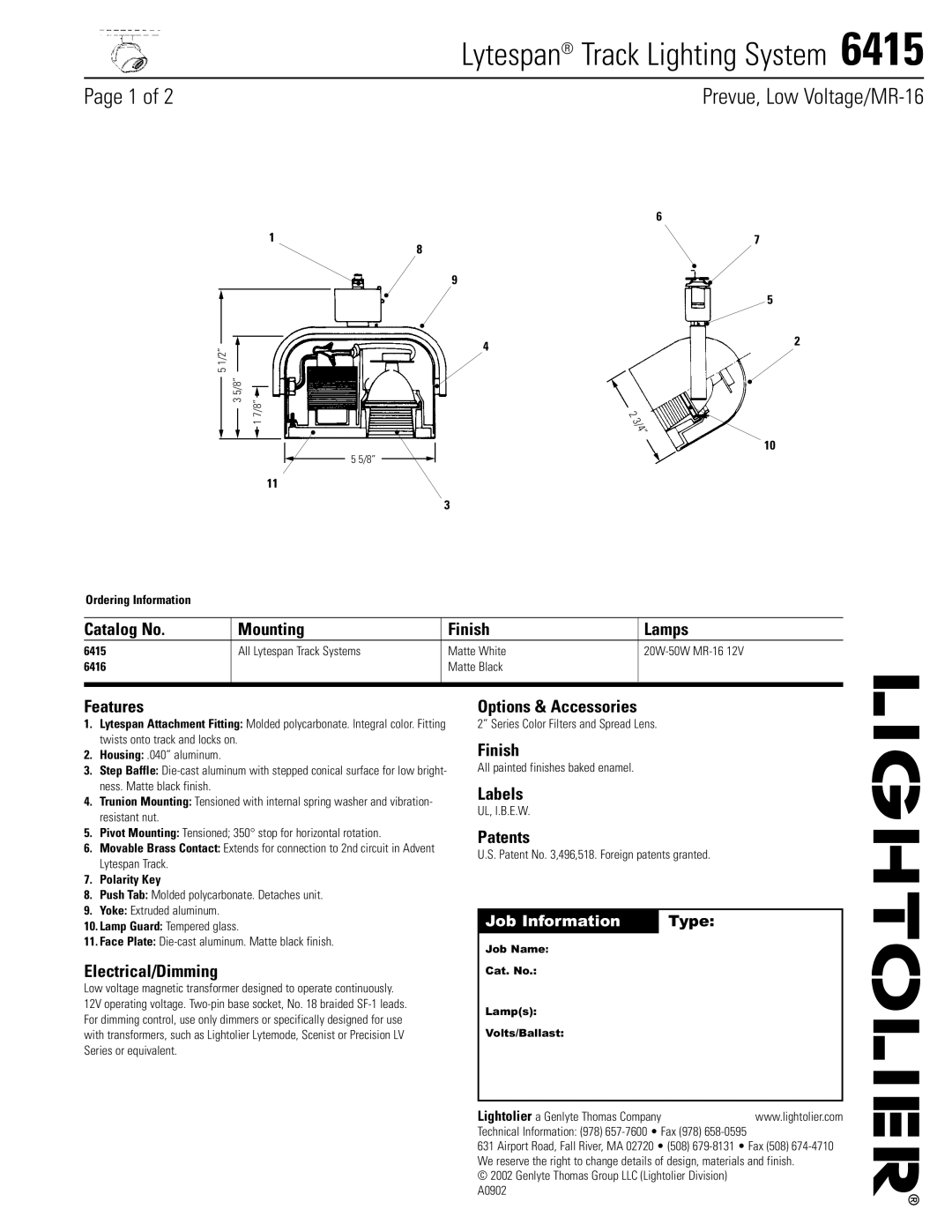

Lytespan® Track Lighting System 6415

Page 1 of 2 Prevue, Low Voltage/MR-16

5 1/2”

	6
1	7

8
9
	5
4	2

5/8”
3
	7/8”
	1

10

5 5/8”

11

3

Ordering Information

Catalog No.	Mounting	Finish	Lamps
6415	All Lytespan Track Systems	Matte White	20W-50W MR-16 12V
6416		Matte Black

Features

1.Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Fitting twists onto track and locks on.

2.Housing: .040” aluminum.

3.Step Baffle: Die-cast aluminum with stepped conical surface for low bright- ness. Matte black finish.

4.Trunion Mounting: Tensioned with internal spring washer and vibration- resistant nut.

5.Pivot Mounting: Tensioned; 350° stop for horizontal rotation.

6.Movable Brass Contact: Extends for connection to 2nd circuit in Advent Lytespan Track.

7.Polarity Key

8.Push Tab: Molded polycarbonate. Detaches unit.

9.Yoke: Extruded aluminum.

10.Lamp Guard: Tempered glass.

11.Face Plate: Die-cast aluminum. Matte black finish.

Electrical/Dimming

Low voltage magnetic transformer designed to operate continuously. 12V operating voltage. Two-pin base socket, No. 18 braided SF-1 leads. For dimming control, use only dimmers or specifically designed for use with transformers, such as Lightolier Lytemode, Scenist or Precision LV Series or equivalent.

Options & Accessories

2” Series Color Filters and Spread Lens.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Patents

U.S. Patent No. 3,496,518. Foreign patents granted.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Companywww.lightolier.com Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) A0902
