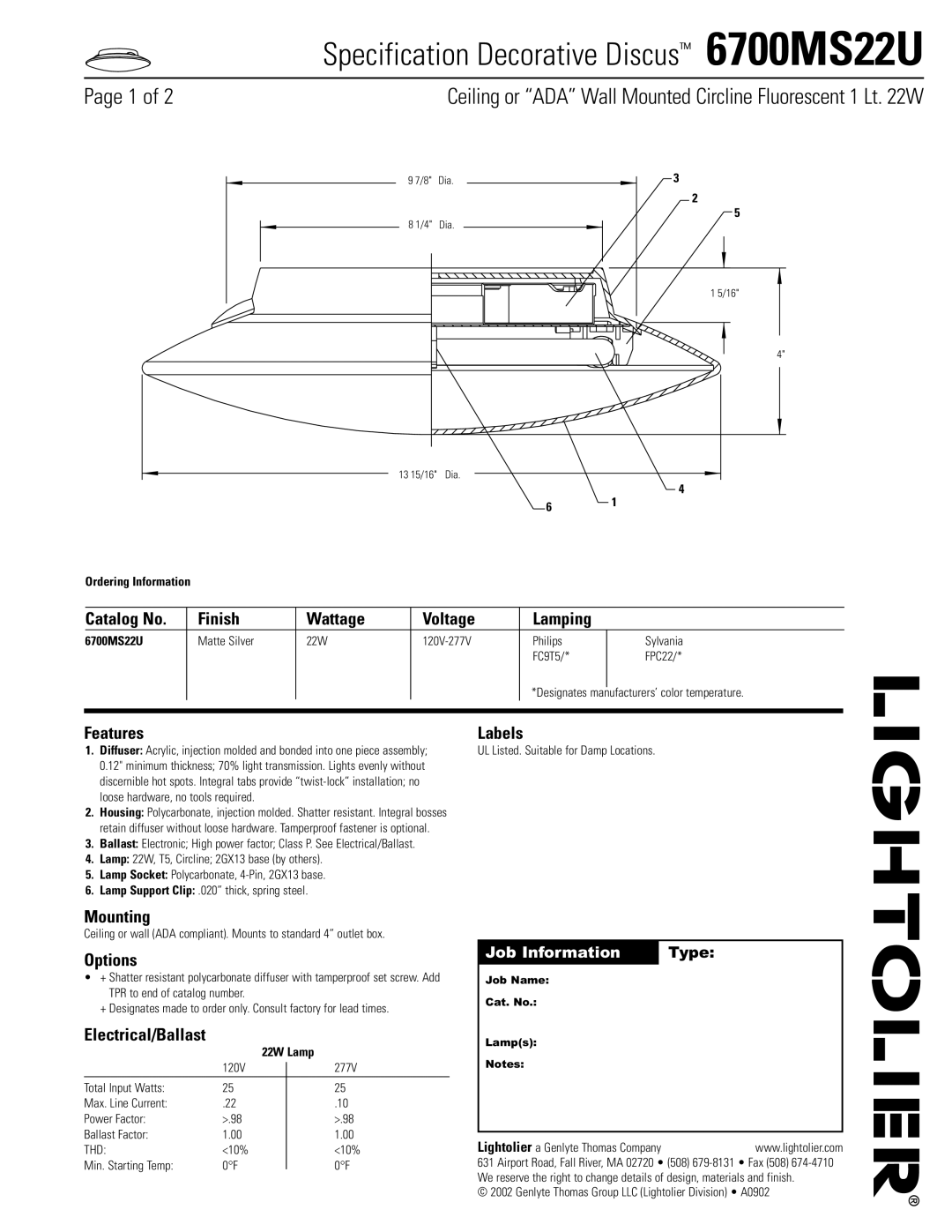

Specification Decorative Discus™ 6700MS22U

Page 1 of 2 Ceiling or “ADA” Wall Mounted Circline Fluorescent 1 Lt. 22W

9 7/8"	Dia.	3
		2
8 1/4"	Dia.	5
		1 5/16"

		4"
13 15/16"	Dia.
		4
	6	1

Ordering Information

Catalog No.	Finish	Wattage	Voltage		Lamping
6700MS22U	Matte Silver	22W	120V-277V		Philips	Sylvania
					FC9T5/*	FPC22/*
					*Designates
						manufacturers’ color temperature.
Features				Labels

1.Diffuser: Acrylic, injection molded and bonded into one piece assembly; 0.12" minimum thickness; 70% light transmission. Lights evenly without discernible hot spots. Integral tabs provide “twist-lock” installation; no loose hardware, no tools required.

2.Housing: Polycarbonate, injection molded. Shatter resistant. Integral bosses retain diffuser without loose hardware. Tamperproof fastener is optional.

3.Ballast: Electronic; High power factor; Class P. See Electrical/Ballast.

4.Lamp: 22W, T5, Circline; 2GX13 base (by others).

5.Lamp Socket: Polycarbonate, 4-Pin, 2GX13 base.

6.Lamp Support Clip: .020” thick, spring steel.

UL Listed. Suitable for Damp Locations.

Mounting

Ceiling or wall (ADA compliant). Mounts to standard 4” outlet box.

Options

•+ Shatter resistant polycarbonate diffuser with tamperproof set screw. Add TPR to end of catalog number.

+Designates made to order only. Consult factory for lead times.

Electrical/Ballast

		22W Lamp
	120V		277V
Total Input Watts:	25		25
Max. Line Current:	.22		.10
Power Factor:	>.98		>.98
Ballast Factor:	1.00		1.00
THD:	<10%		<10%
Min. Starting Temp:	0°F		0°F

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
