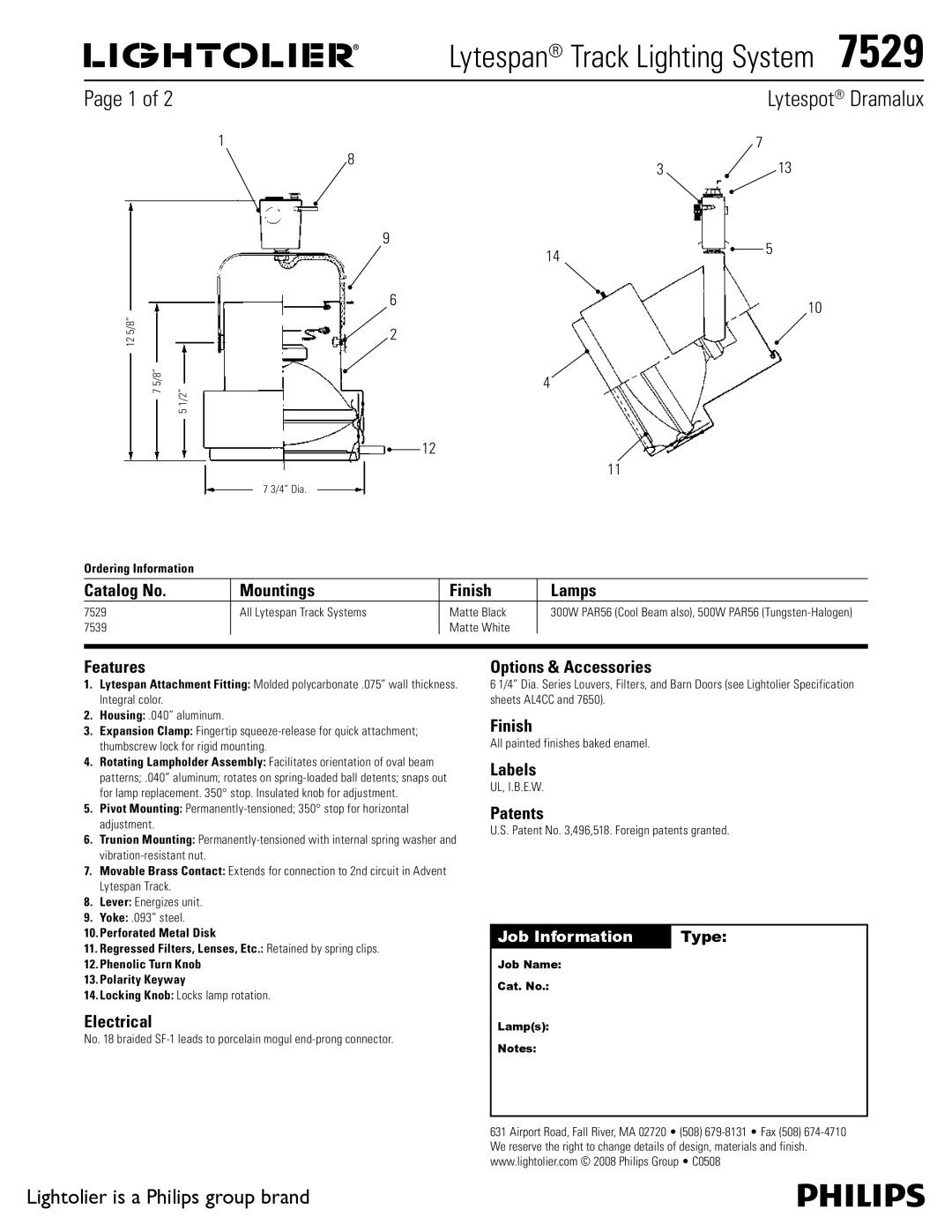

	Lytespan® Track Lighting System  7529
Page 1 of 2	Lytespot® Dramalux

12 5/8”

7 5/8”
	1/2”
	5

Ordering Information

Catalog No.

7529

7539

1		7
8	3	13

9		14		5
	6		10
	2
		4

12

11

7 3/4” Dia.

Mountings	Finish	Lamps
All Lytespan Track Systems	Matte Black	300W PAR56 (Cool Beam also), 500W PAR56 (Tungsten-Halogen)
	Matte White

Features

1.Lytespan Attachment Fitting: Molded polycarbonate .075” wall thickness.

Integral color.

2.Housing: .040” aluminum.

3.Expansion Clamp: Fingertip squeeze-release for quick attachment; thumbscrew lock for rigid mounting.

4.Rotating Lampholder Assembly: Facilitates orientation of oval beam patterns; .040” aluminum; rotates on spring-loaded ball detents; snaps out for lamp replacement. 350° stop. Insulated knob for adjustment.

5.Pivot Mounting: Permanently-tensioned; 350° stop for horizontal adjustment.

6.Trunion Mounting: Permanently-tensioned with internal spring washer and vibration-resistant nut.

7.Movable Brass Contact: Extends for connection to 2nd circuit in Advent

Lytespan Track.

8.Lever: Energizes unit.

9.Yoke: .093” steel.

10.Perforated Metal Disk

11.Regressed Filters, Lenses, Etc.: Retained by spring clips.

12.Phenolic Turn Knob

13.Polarity Keyway

14.Locking Knob: Locks lamp rotation.

Electrical

No. 18 braided SF-1 leads to porcelain mogul end-prong connector.

Options & Accessories

6 1/4” Dia. Series Louvers, Filters, and Barn Doors (see Lightolier Specification sheets AL4CC and 7650).

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Patents

U.S. Patent No. 3,496,518. Foreign patents granted.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • C0508
