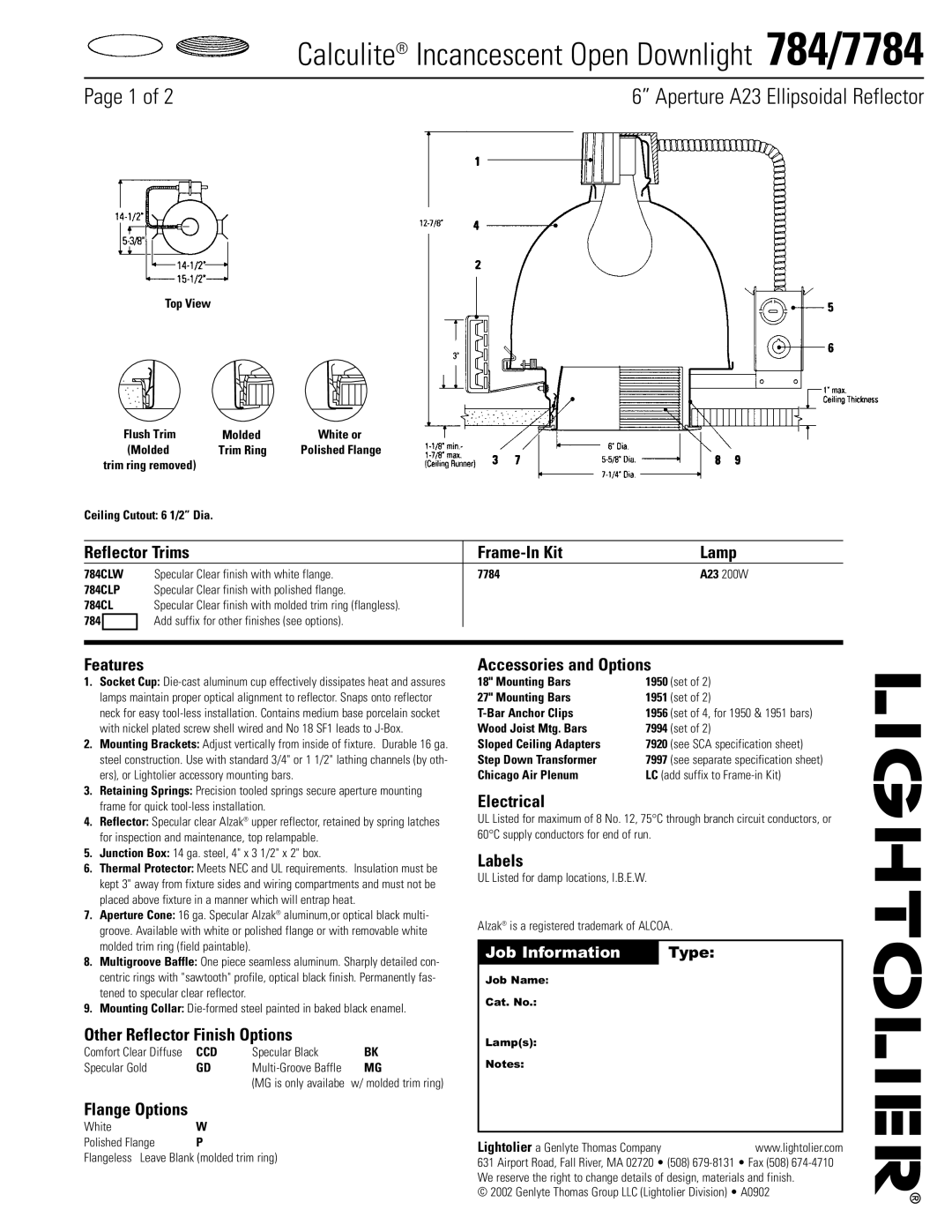

Calculite® Incancescent Open Downlight 784/7784

Page 1 of 2

6” Aperture A23 Ellipsoidal Reflector

Top View





Flush Trim

Molded

White or









(Molded

Trim Ring

Polished Flange







trim ring removed)









Ceiling Cutout: 6 1/2” Dia.























Reflector Trims





Frame-In Kit

Lamp

784CLW



Specular Clear finish with white flange.

7784

A23 200W

784CLP



Specular Clear finish with polished flange.





784CL



Specular Clear finish with molded trim ring (flangless).





784





Add suffix for other finishes (see options).





































Features

1.Socket Cup: Die-cast aluminum cup effectively dissipates heat and assures lamps maintain proper optical alignment to reflector. Snaps onto reflector neck for easy tool-less installation. Contains medium base porcelain socket with nickel plated screw shell wired and No 18 SF1 leads to J-Box.

2.Mounting Brackets: Adjust vertically from inside of fixture. Durable 16 ga. steel construction. Use with standard 3/4" or 1 1/2" lathing channels (by oth- ers), or Lightolier accessory mounting bars.

3.Retaining Springs: Precision tooled springs secure aperture mounting frame for quick tool-less installation.

4.Reflector: Specular clear Alzak® upper reflector, retained by spring latches for inspection and maintenance, top relampable.

5.Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box.

6.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

7.Aperture Cone: 16 ga. Specular Alzak® aluminum,or optical black multi- groove. Available with white or polished flange or with removable white molded trim ring (field paintable).

8.Multigroove Baffle: One piece seamless aluminum. Sharply detailed con- centric rings with "sawtooth" profile, optical black finish. Permanently fas- tened to specular clear reflector.

9.Mounting Collar: Die-formed steel painted in baked black enamel.

Other Reflector Finish Options

Comfort Clear Diffuse

CCD

Specular Black

BK

Specular Gold

GD

Multi-Groove Baffle

MG





(MG is only availabe

w/ molded trim ring)

Flange Options

White

W

Polished Flange

P

Flangeless Leave Blank (molded trim ring)

Accessories and Options

18" Mounting Bars

1950

(set of 2)

27" Mounting Bars

1951

(set of 2)

T-Bar Anchor Clips

1956

(set of 4, for 1950 & 1951 bars)

Wood Joist Mtg. Bars

7994

(set of 2)

Sloped Ceiling Adapters

7920

(see SCA specification sheet)

Step Down Transformer

7997

(see separate specification sheet)

Chicago Air Plenum

LC (add suffix to Frame-in Kit)

Electrical

UL Listed for maximum of 8 No. 12, 75°C through branch circuit conductors, or 60°C supply conductors for end of run.

Labels

UL Listed for damp locations, I.B.E.W.

Alzak® is a registered trademark of ALCOA.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

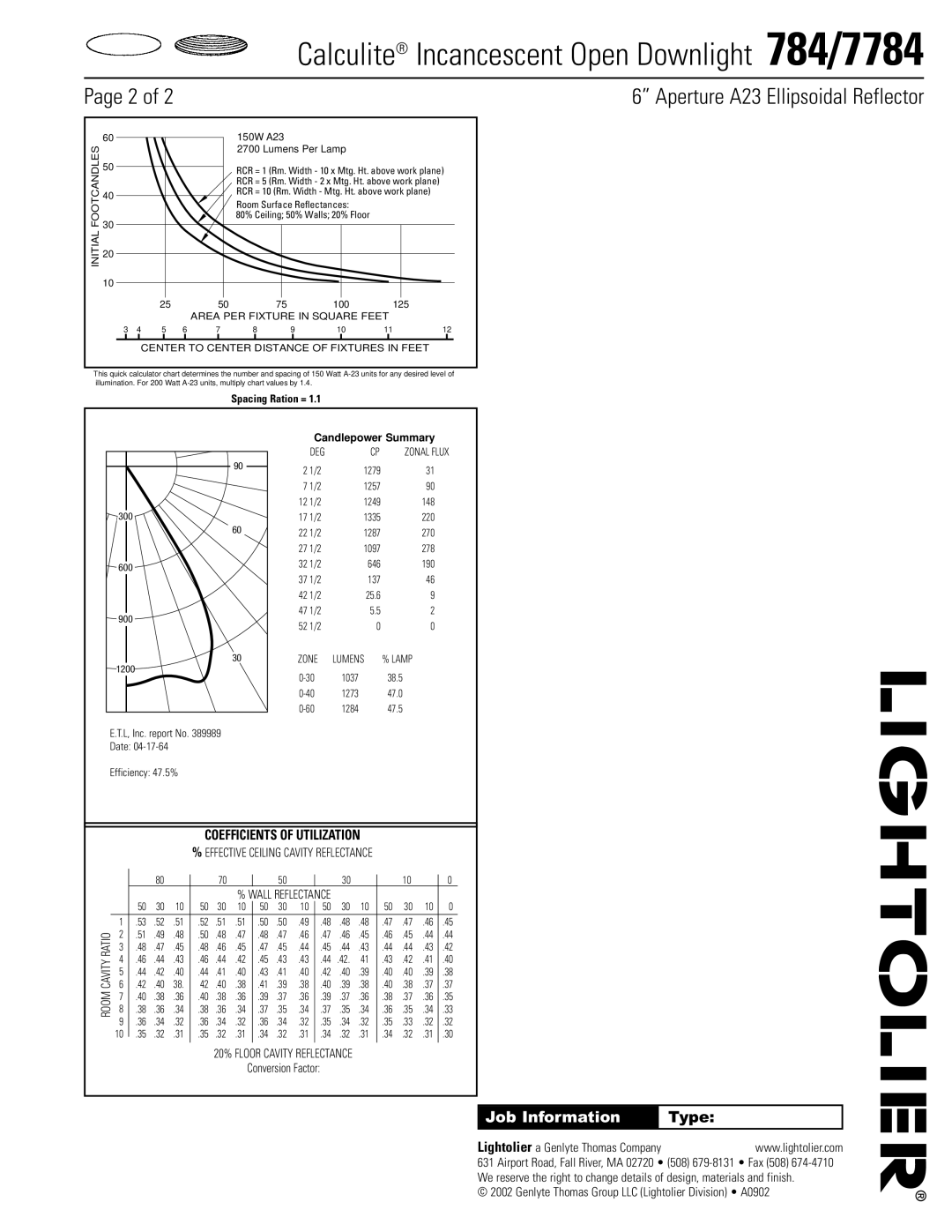

Notes:
