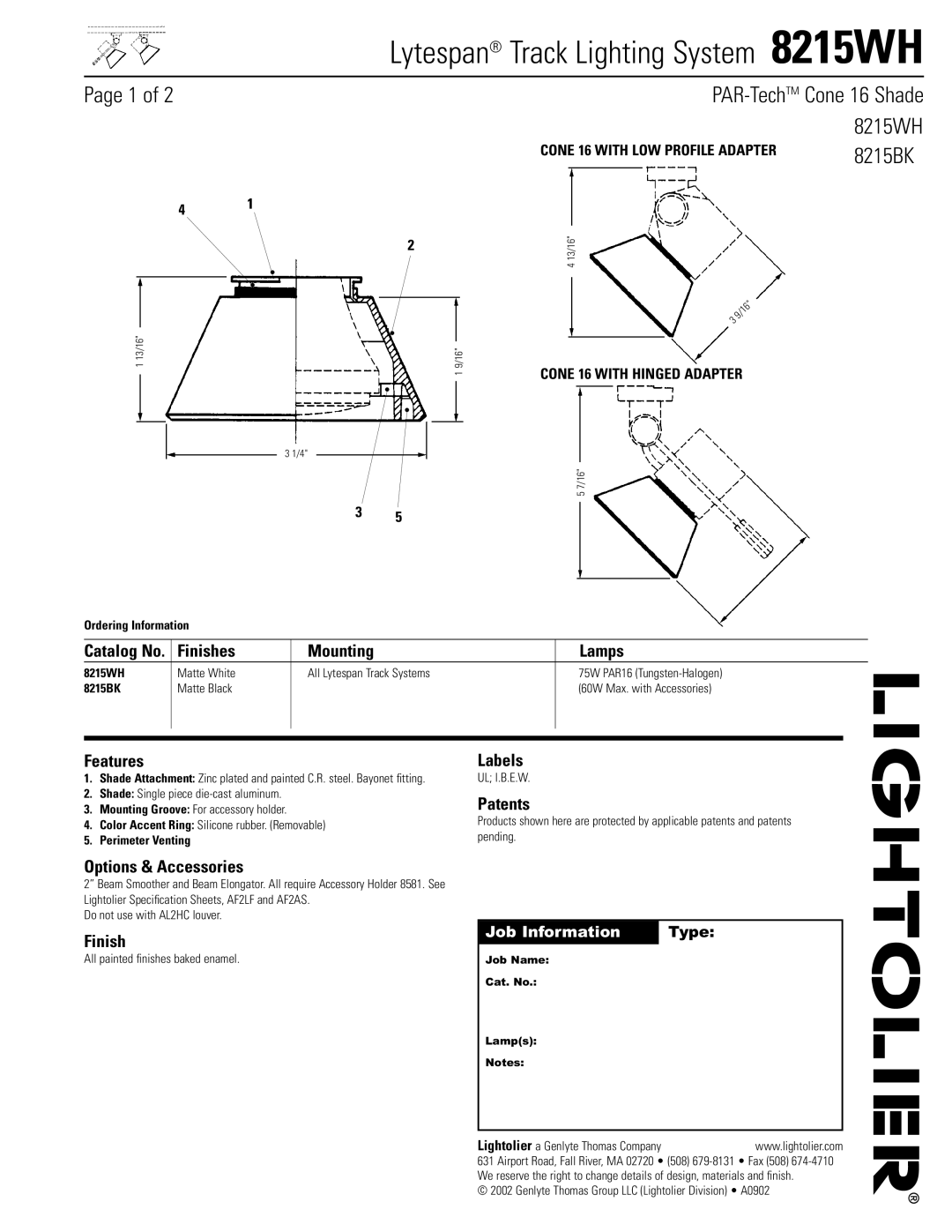

Lytespan® Track Lighting System 8215WH

Page 1 of 2

4 1

2

1 13/16"
	9/16"
	1

3 1/4"

3 5

Ordering Information

Catalog No.	Finishes	Mounting
8215WH	Matte White	All Lytespan Track Systems
8215BK	Matte Black

PAR-TechTMCone 16 Shade 8215WH

CONE 16 WITH LOW PROFILE ADAPTER 8215BK

4 13/16"

CONE 16 WITH HINGED ADAPTER

5 7/16"

Lamps

75W PAR16 (Tungsten-Halogen)

(60W Max. with Accessories)

Features

1.Shade Attachment: Zinc plated and painted C.R. steel. Bayonet fitting.

2.Shade: Single piece die-cast aluminum.

3.Mounting Groove: For accessory holder.

4.Color Accent Ring: Silicone rubber. (Removable)

5.Perimeter Venting

Options & Accessories

2” Beam Smoother and Beam Elongator. All require Accessory Holder 8581. See Lightolier Specification Sheets, AF2LF and AF2AS.

Do not use with AL2HC louver.

Finish

All painted finishes baked enamel.

Labels

UL; I.B.E.W.

Patents

Products shown here are protected by applicable patents and patents pending.

Job Information Type:

Job Name: Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
