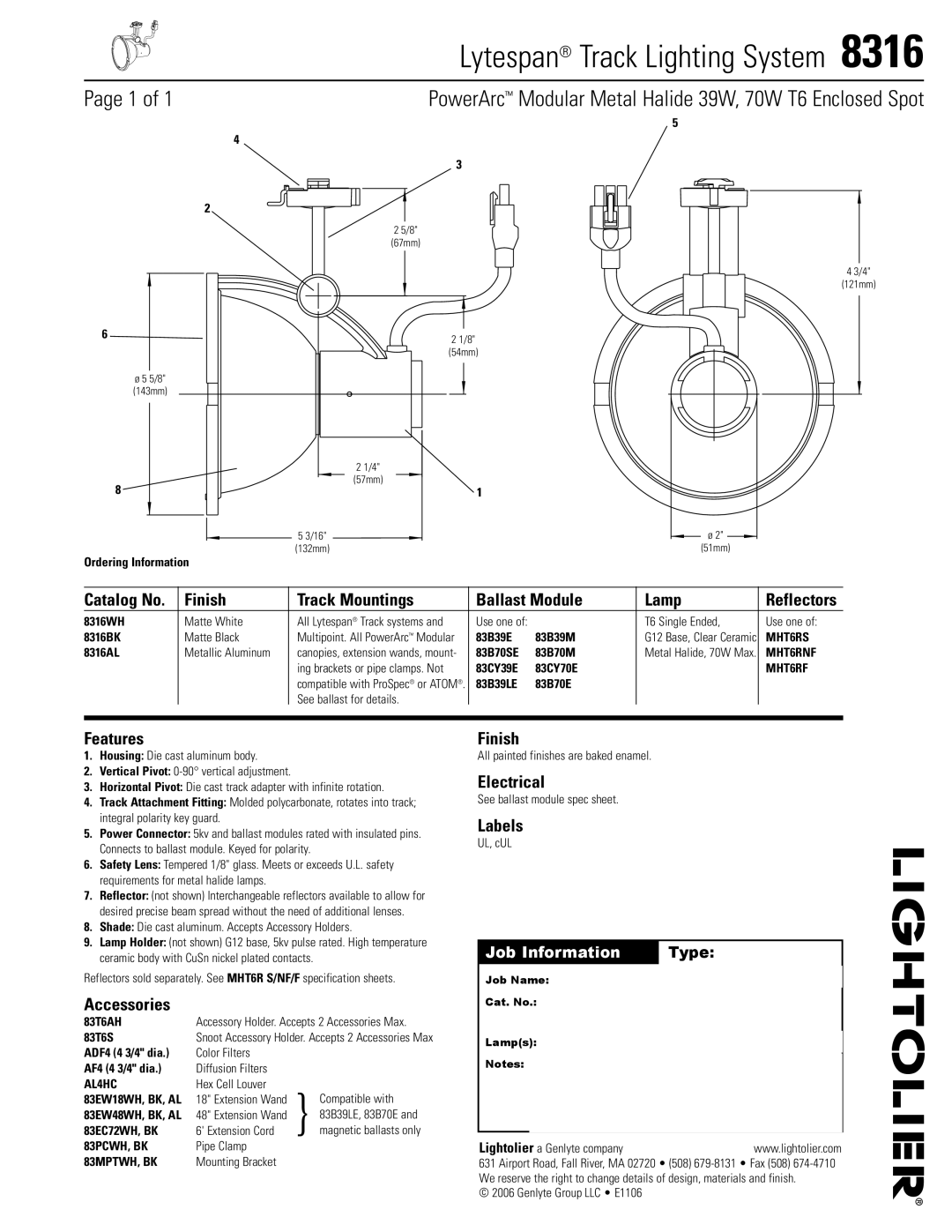

	Lytespan® Track Lighting System  8316
Page 1 of 1	PowerArc™ Modular Metal Halide 39W, 70W T6 Enclosed Spot

4

3

2

2 5/8"

(67mm)

6	2 1/8"
	(54mm)

ø5 5/8" (143mm)

	2 1/4"
8	(57mm)
	1

5 3/16"

(132mm)

Ordering Information

5

4 3/4"

(121mm)

ø 2"

(51mm)

Catalog No.	Finish	Track Mountings	Ballast Module		Lamp	Reflectors
8316WH	Matte White	All Lytespan® Track systems and	Use one of:		T6 Single Ended,	Use one of:
8316BK	Matte Black	Multipoint. All PowerArc™ Modular	83B39E	83B39M	G12 Base, Clear Ceramic	MHT6RS
8316AL	Metallic Aluminum	canopies, extension wands, mount-	83B70SE	83B70M	Metal Halide, 70W Max.	MHT6RNF
		ing brackets or pipe clamps. Not	83CY39E	83CY70E		MHT6RF
		compatible with ProSpec® or ATOM®.	83B39LE	83B70E
		See ballast for details.

Features

1.Housing: Die cast aluminum body.

2.Vertical Pivot: 0-90° vertical adjustment.

3.Horizontal Pivot: Die cast track adapter with infinite rotation.

4.Track Attachment Fitting: Molded polycarbonate, rotates into track; integral polarity key guard.

5.Power Connector: 5kv and ballast modules rated with insulated pins. Connects to ballast module. Keyed for polarity.

6.Safety Lens: Tempered 1/8" glass. Meets or exceeds U.L. safety requirements for metal halide lamps.

7.Reflector: (not shown) Interchangeable reflectors available to allow for desired precise beam spread without the need of additional lenses.

8.Shade: Die cast aluminum. Accepts Accessory Holders.

9.Lamp Holder: (not shown) G12 base, 5kv pulse rated. High temperature ceramic body with CuSn nickel plated contacts.

Reflectors sold separately. See MHT6R S/NF/F specification sheets.

Accessories

83T6AH	Accessory Holder. Accepts 2 Accessories Max.
83T6S	Snoot Accessory Holder. Accepts 2 Accessories Max
ADF4 (4 3/4" dia.)	Color Filters
AF4 (4 3/4" dia.)	Diffusion Filters
AL4HC	Hex Cell Louver
83EW18WH, BK, AL	18" Extension Wand	Compatible with
83EW48WH, BK, AL	48" Extension Wand	83B39LE, 83B70E and
83EC72WH, BK	6' Extension Cord	} magnetic ballasts only
83PCWH, BK	Pipe Clamp
83MPTWH, BK	Mounting Bracket

Finish

All painted finishes are baked enamel.

Electrical

See ballast module spec sheet.

Labels

UL, cUL

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • E1106
