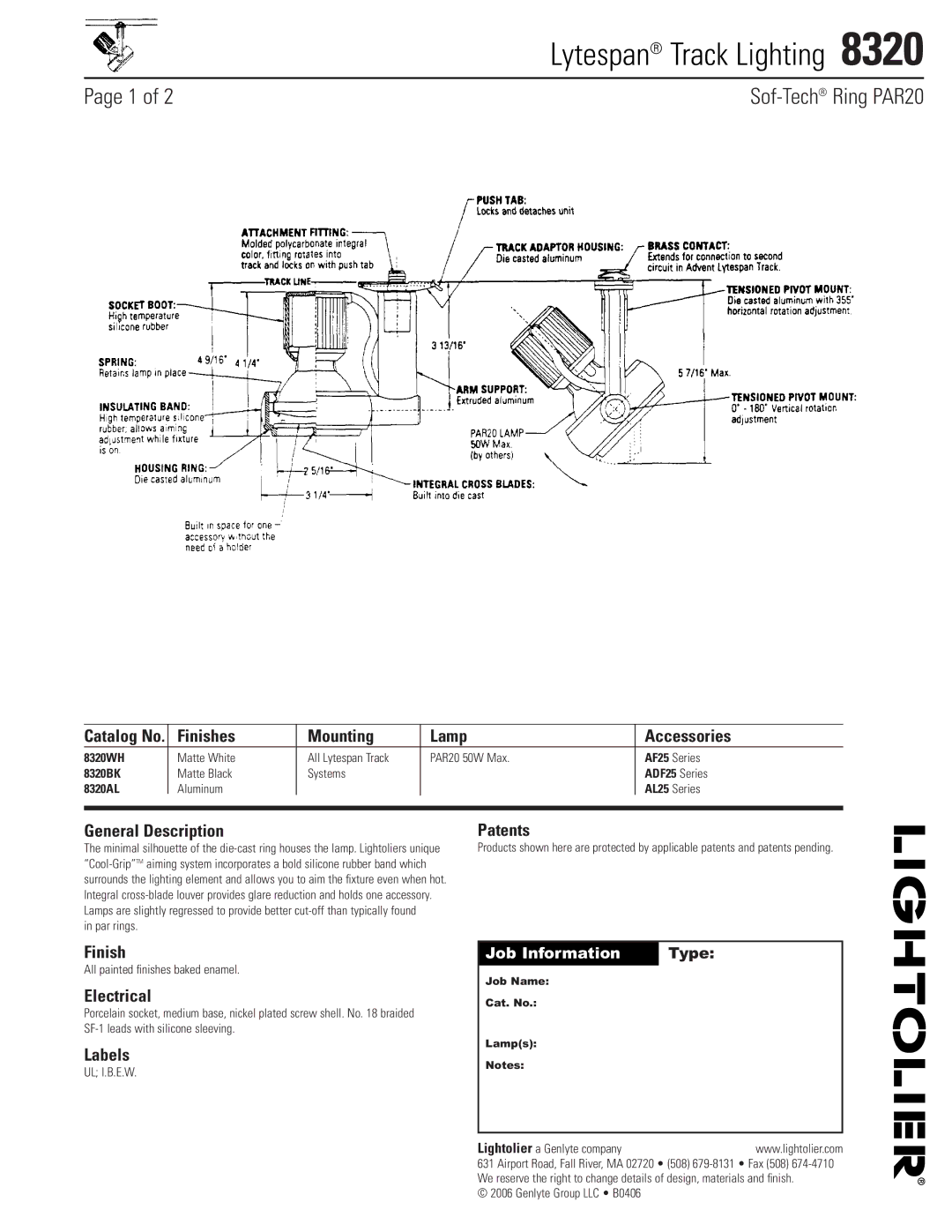

Lytespan® Track Lighting 8320

Page 1 of 2

Sof-Tech®Ring PAR20

Catalog No.

Finishes

Mounting

Lamp

Accessories

8320WH

Matte White

All Lytespan Track

PAR20 50W Max.

AF25 Series

8320BK

Matte Black

Systems



ADF25 Series

8320AL

Aluminum





AL25 Series











General Description

The minimal silhouette of the die-cast ring houses the lamp. Lightoliers unique “Cool-Grip”TMaiming system incorporates a bold silicone rubber band which surrounds the lighting element and allows you to aim the fixture even when hot. Integral cross-blade louver provides glare reduction and holds one accessory. Lamps are slightly regressed to provide better cut-off than typically found

in par rings.

Finish

All painted finishes baked enamel.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads with silicone sleeving.

Labels

UL; I.B.E.W.

Patents

Products shown here are protected by applicable patents and patents pending.

Job Information

Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B0406

Page 1
Image 1
Lightolier 8320 manual Finishes Mounting Lamp Accessories, General Description, Electrical, Labels, Patents

8320 specifications

The Lightolier 8320 is a versatile and efficient lighting fixture that has become a popular choice for both residential and commercial spaces. Renowned for its sleek design and advanced features, the 8320 serves not only as a source of illumination but also as a statement piece in any environment.

One of the key features of the Lightolier 8320 is its energy efficiency. Utilizing LED technology, this fixture offers significant energy savings compared to traditional incandescent or fluorescent lights. The LEDs used in the 8320 are designed to last longer, reducing the frequency of bulb replacements and contributing to lower maintenance costs over time. This energy-efficient design aligns with modern sustainability goals, making it an ideal choice for eco-conscious consumers.

Another standout characteristic of the Lightolier 8320 is its exceptional brightness and quality of light. The fixture delivers a high lumen output while maintaining a high Color Rendering Index (CRI), which allows colors to appear more vibrant and true to life. This quality of light is particularly valuable in spaces such as art galleries, retail environments, and residential areas where color accuracy is crucial.

The Lightolier 8320 also boasts adjustable features that enhance its versatility. Many models come with options for tilt and rotation, allowing users to direct light where it is needed most. This adjustability makes the 8320 suitable for a variety of applications, from accent lighting to general illumination. The ability to focus light on specific areas helps create mood and ambiance, making it a favorite among interior designers.

In terms of aesthetics, the Lightolier 8320 offers a contemporary design that seamlessly blends with various decor styles. Available in multiple finishes, including matte black, white, and brushed nickel, it caters to diverse design preferences. The minimalist form factor ensures that the fixture does not overpower the room while still providing a modern touch.

Finally, the installation of the Lightolier 8320 is straightforward, allowing for easy integration into existing lighting setups. Compatible with standard electrical systems, it can be mounted on walls or ceilings with ease, making it a flexible option for both new constructions and renovations.

In summary, the Lightolier 8320 stands out in the lighting industry due to its energy efficiency, high-quality illumination, adjustable features, appealing design, and easy installation. It's a reliable lighting solution that meets the demands of modern spaces, enhancing both functionality and aesthetics.
