Lytespan® Track Lighting 8330

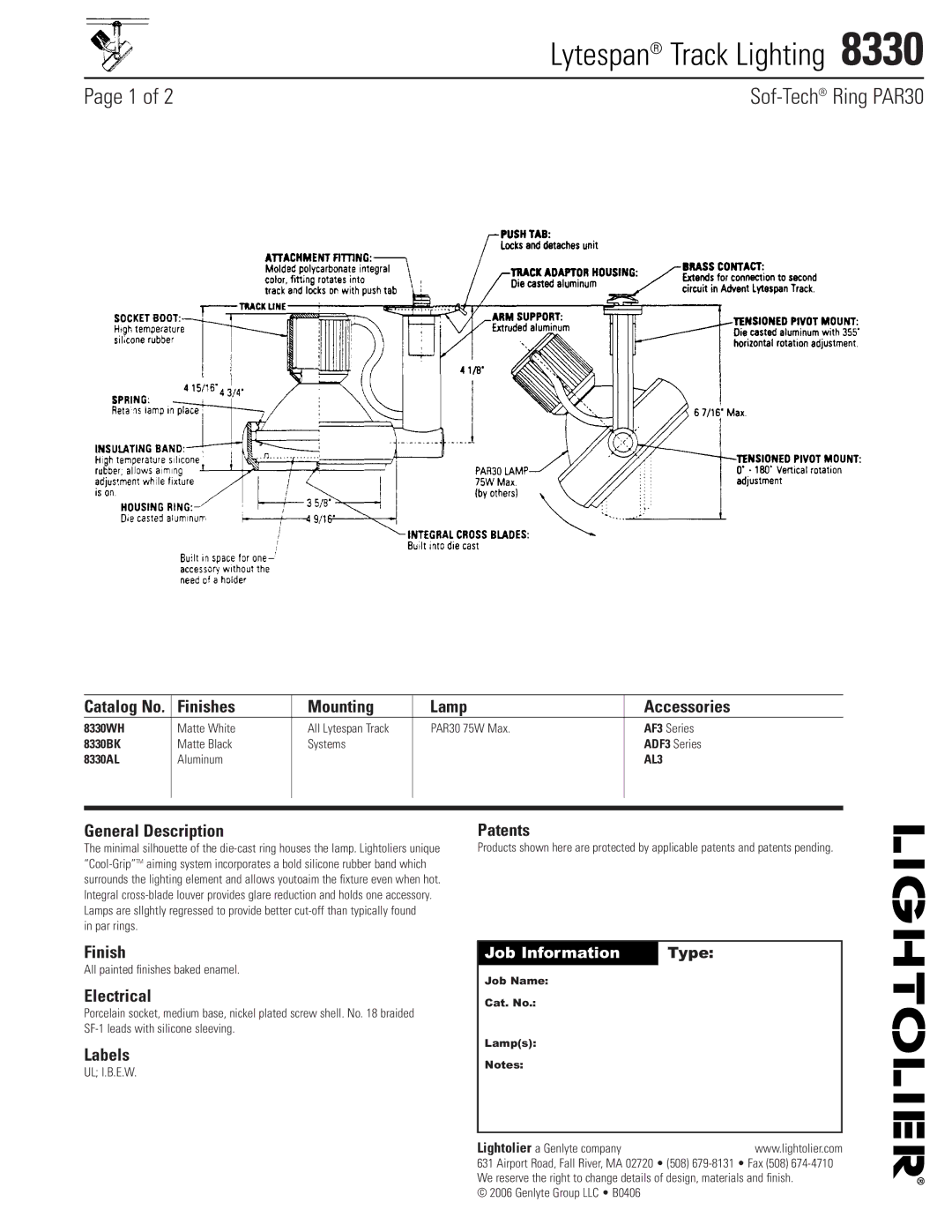

Page 1 of 2 Sof-Tech®Ring PAR30

Catalog No.	Finishes	Mounting	Lamp	Accessories
8330WH	Matte White	All Lytespan Track	PAR30 75W Max.	AF3 Series
8330BK	Matte Black	Systems		ADF3 Series
8330AL	Aluminum			AL3

General Description

The minimal silhouette of the die-cast ring houses the lamp. Lightoliers unique “Cool-Grip”TMaiming system incorporates a bold silicone rubber band which surrounds the lighting element and allows youtoaim the fixture even when hot. Integral cross-blade louver provides glare reduction and holds one accessory. Lamps are sllghtly regressed to provide better cut-off than typically found

in par rings.

Finish

All painted finishes baked enamel.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads with silicone sleeving.

Labels

UL; I.B.E.W.

Patents

Products shown here are protected by applicable patents and patents pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B0406
