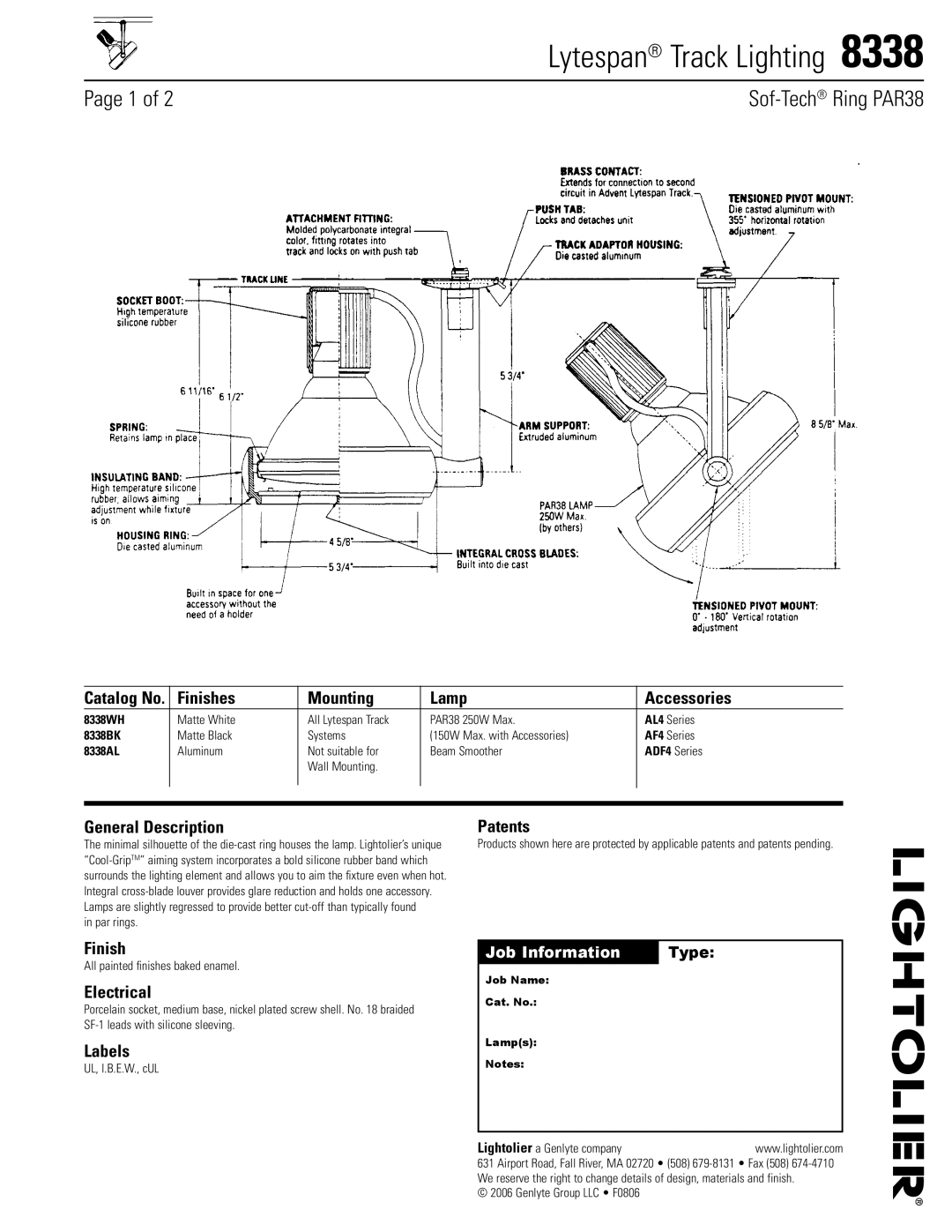

	Lytespan® Track Lighting  8338
Page of 2	Sof-Tech®Ring PAR38

Catalog No.	Finishes	Mounting	Lamp	Accessories
8338WH	Matte White	All Lytespan Track	PAR38 250W Max.	AL4 Series
8338BK	Matte Black	Systems	(150W Max. with Accessories)	AF4 Series
8338AL	Aluminum	Not suitable for	Beam Smoother	ADF4 Series
		Wall Mounting.

General Description

The minimal silhouette of the die-cast ring houses the lamp. Lightolier’s unique “Cool-GripTM” aiming system incorporates a bold silicone rubber band which surrounds the lighting element and allows you to aim the fixture even when hot. Integral cross-blade louver provides glare reduction and holds one accessory. Lamps are slightly regressed to provide better cut-off than typically found

in par rings.

Patents

Products shown here are protected by applicable patents and patents pending.

Finish

All painted finishes baked enamel.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads with silicone sleeving.

Labels

UL, I.B.E.W., cUL

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • F0806
