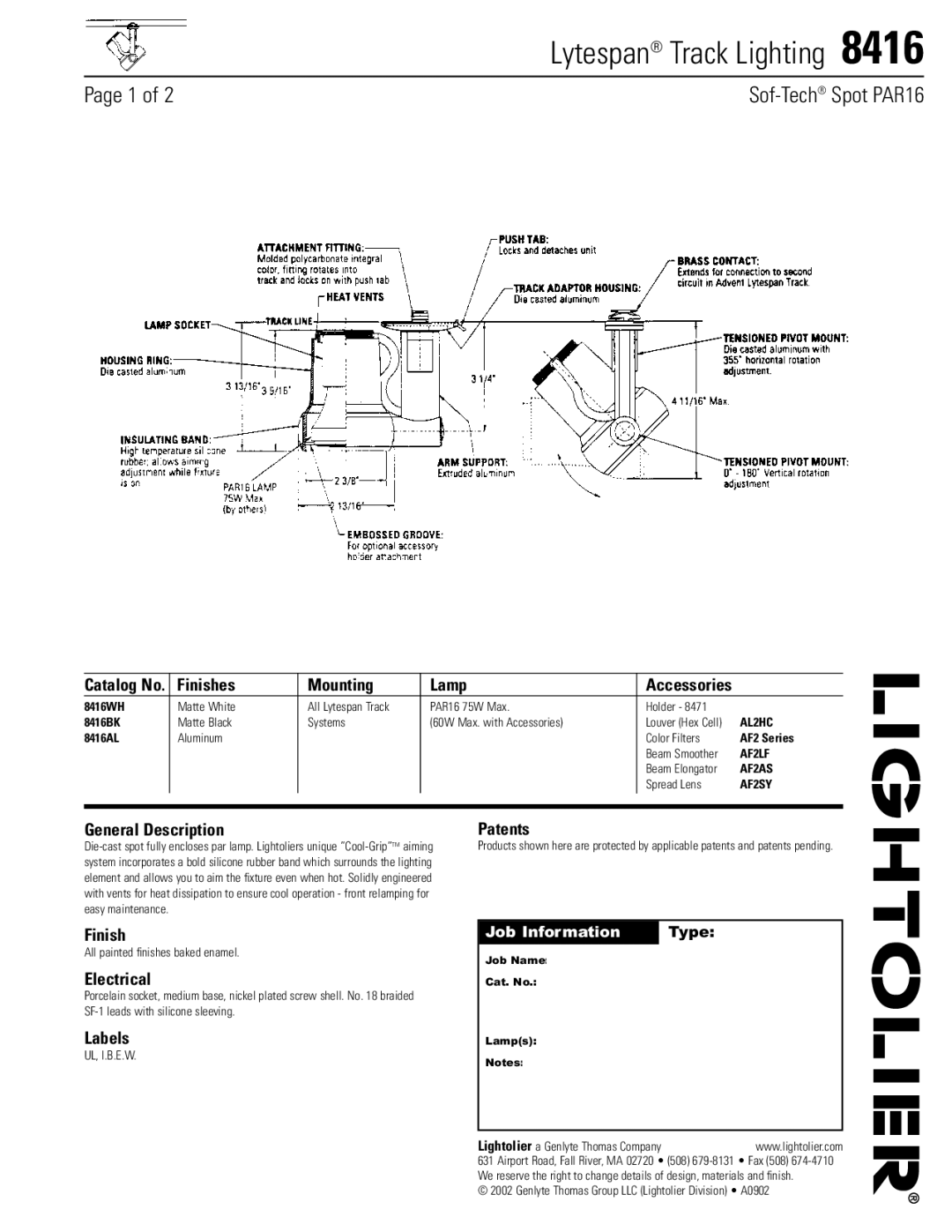

Lytespan® Track Lighting 8416

Page 1 of 2 Sof-Tech®Spot PAR16

Catalog No.	Finishes	Mounting	Lamp	Accessories
8416WH	Matte White	All Lytespan Track	PAR16 75W Max.	Holder - 8471
8416BK	Matte Black	Systems	(60W Max. with Accessories)	Louver (Hex Cell)	AL2HC
8416AL	Aluminum			Color Filters	AF2 Series
				Beam Smoother	AF2LF
				Beam Elongator	AF2AS
				Spread Lens	AF2SY

General Description

Die-cast spot fully encloses par lamp. Lightoliers unique ”Cool-Grip”TMaiming system incorporates a bold silicone rubber band which surrounds the lighting element and allows you to aim the fixture even when hot. Solidly engineered with vents for heat dissipation to ensure cool operation - front relamping for easy maintenance.

Finish

All painted finishes baked enamel.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads with silicone sleeving.

Labels

UL, I.B.E.W.

Patents

Products shown here are protected by applicable patents and patents pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
