Lightolier 8430 manual Lytespan Track Lighting, Page 1 of, Sof-Tech Spot PAR30, Finishes, Lamp

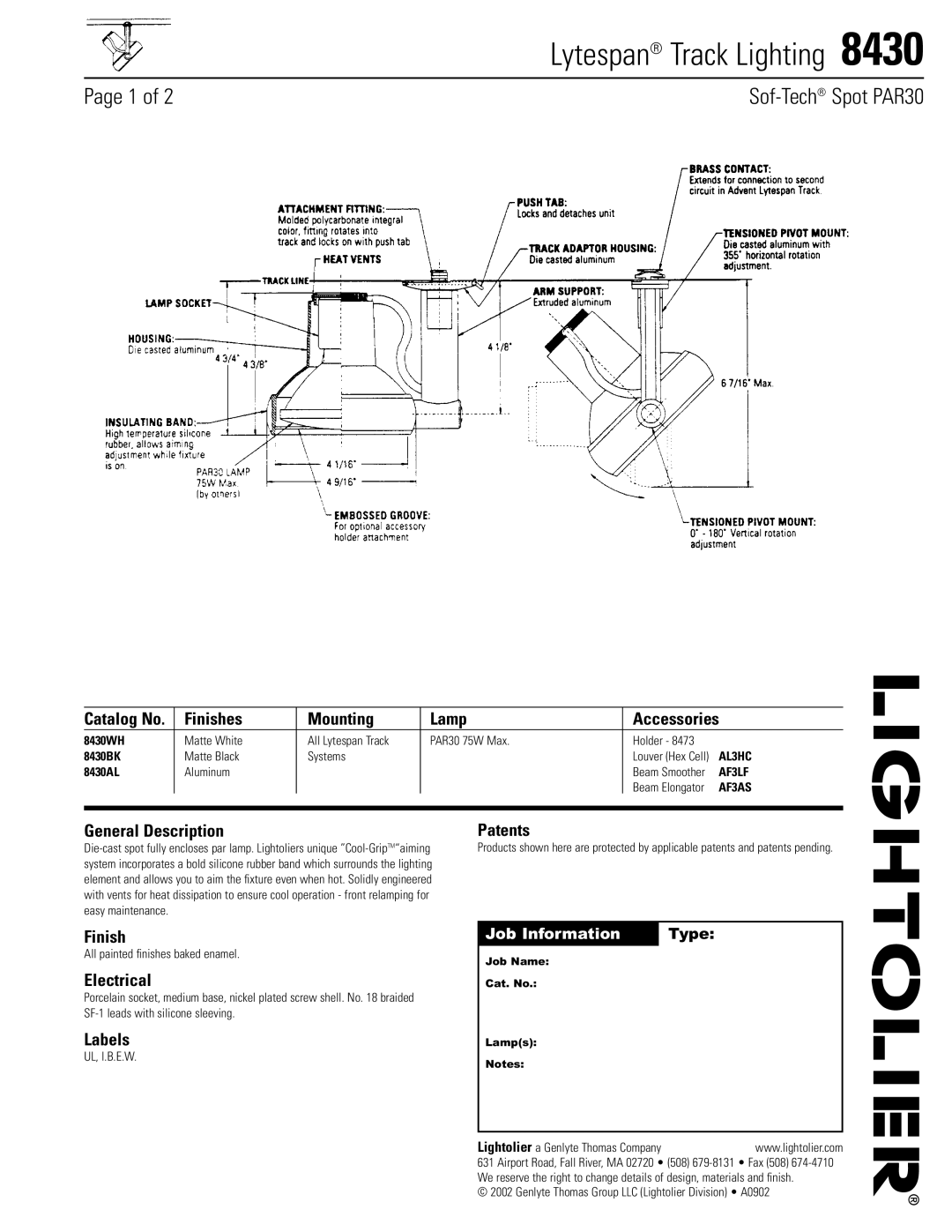

Lytespan® Track Lighting 8430

Page 1 of 2 Sof-Tech®Spot PAR30

Catalog No.	Finishes	Mounting	Lamp	Accessories
8430WH	Matte White	All Lytespan Track	PAR30 75W Max.	Holder - 8473
8430BK	Matte Black	Systems		Louver (Hex Cell)	AL3HC
8430AL	Aluminum			Beam Smoother	AF3LF
				Beam Elongator	AF3AS

General Description

Die-cast spot fully encloses par lamp. Lightoliers unique ”Cool-GripTM“aiming system incorporates a bold silicone rubber band which surrounds the lighting element and allows you to aim the fixture even when hot. Solidly engineered with vents for heat dissipation to ensure cool operation - front relamping for easy maintenance.

Patents

Products shown here are protected by applicable patents and patents pending.

Finish

All painted finishes baked enamel.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads with silicone sleeving.

Labels

UL, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
