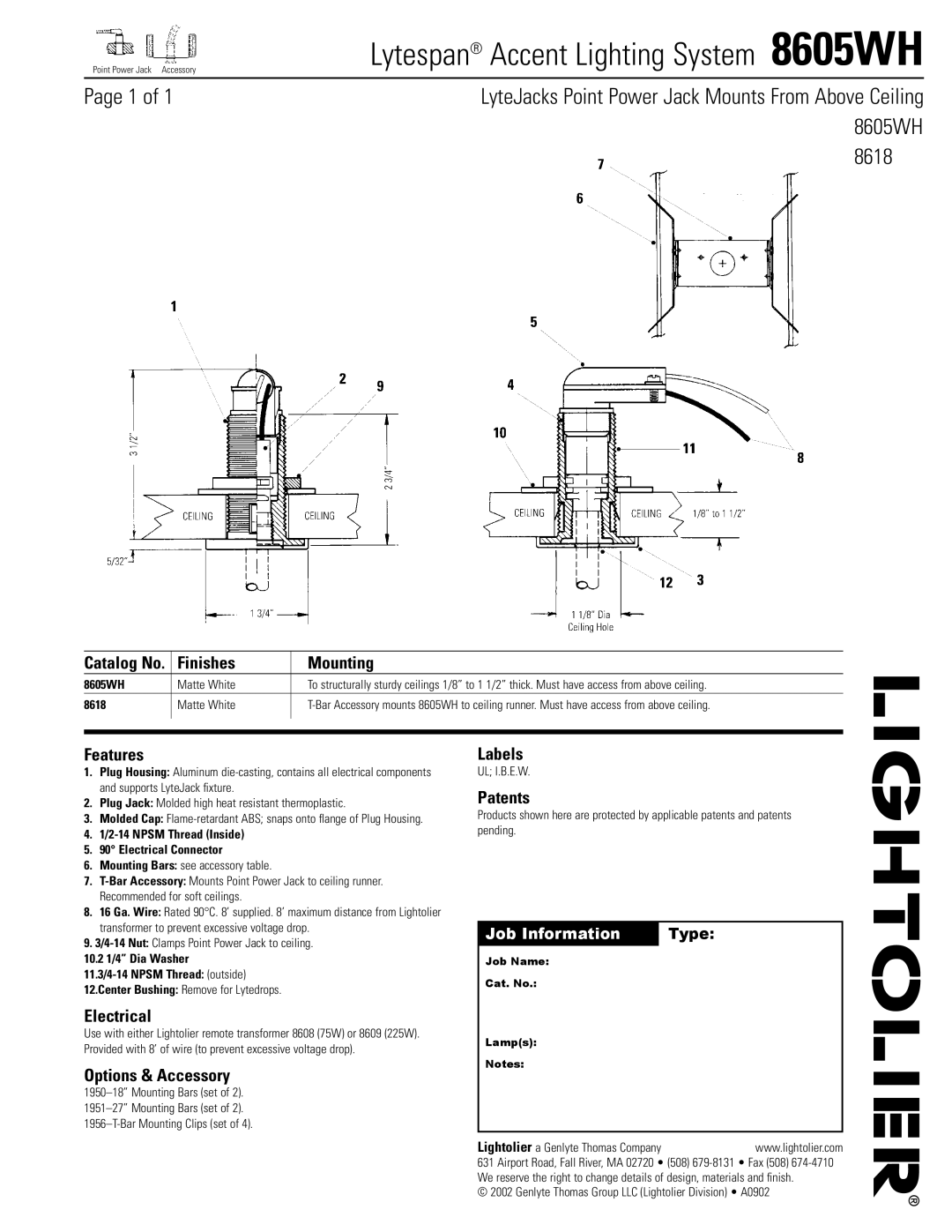

Lightolier manual Lytespan Accent Lighting System 8605WH, Page 1 of, 8618, Finishes, Mounting

Point Power Jack Accessory	Lytespan® Accent Lighting System 8605WH
Page 1 of 1	LyteJacks Point Power Jack Mounts From Above Ceiling
	8605WH
	8618

Catalog No.	Finishes	Mounting
8605WH	Matte White	To structurally sturdy ceilings 1/8” to 1 1/2” thick. Must have access from above ceiling.
8618	Matte White	T-Bar Accessory mounts 8605WH to ceiling runner. Must have access from above ceiling.

Features

1.Plug Housing: Aluminum die-casting, contains all electrical components and supports LyteJack fixture.

2.Plug Jack: Molded high heat resistant thermoplastic.

3.Molded Cap: Flame-retardant ABS; snaps onto flange of Plug Housing.

4.1/2-14 NPSM Thread (Inside)5.90° Electrical Connector

6.Mounting Bars: see accessory table.

7.T-Bar Accessory: Mounts Point Power Jack to ceiling runner. Recommended for soft ceilings.

8.16 Ga. Wire: Rated 90°C. 8’ supplied. 8’ maximum distance from Lightolier transformer to prevent excessive voltage drop.

9.3/4-14 Nut: Clamps Point Power Jack to ceiling.

10.2 1/4” Dia Washer 11.3/4-14 NPSM Thread: (outside) 12.Center Bushing: Remove for Lytedrops.

Electrical

Use with either Lightolier remote transformer 8608 (75W) or 8609 (225W). Provided with 8’ of wire (to prevent excessive voltage drop).

Options & Accessory

1950–18” Mounting Bars (set of 2).

1951–27” Mounting Bars (set of 2).

1956–T-Bar Mounting Clips (set of 4).

Labels

UL; I.B.E.W.

Patents

Products shown here are protected by applicable patents and patents pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
