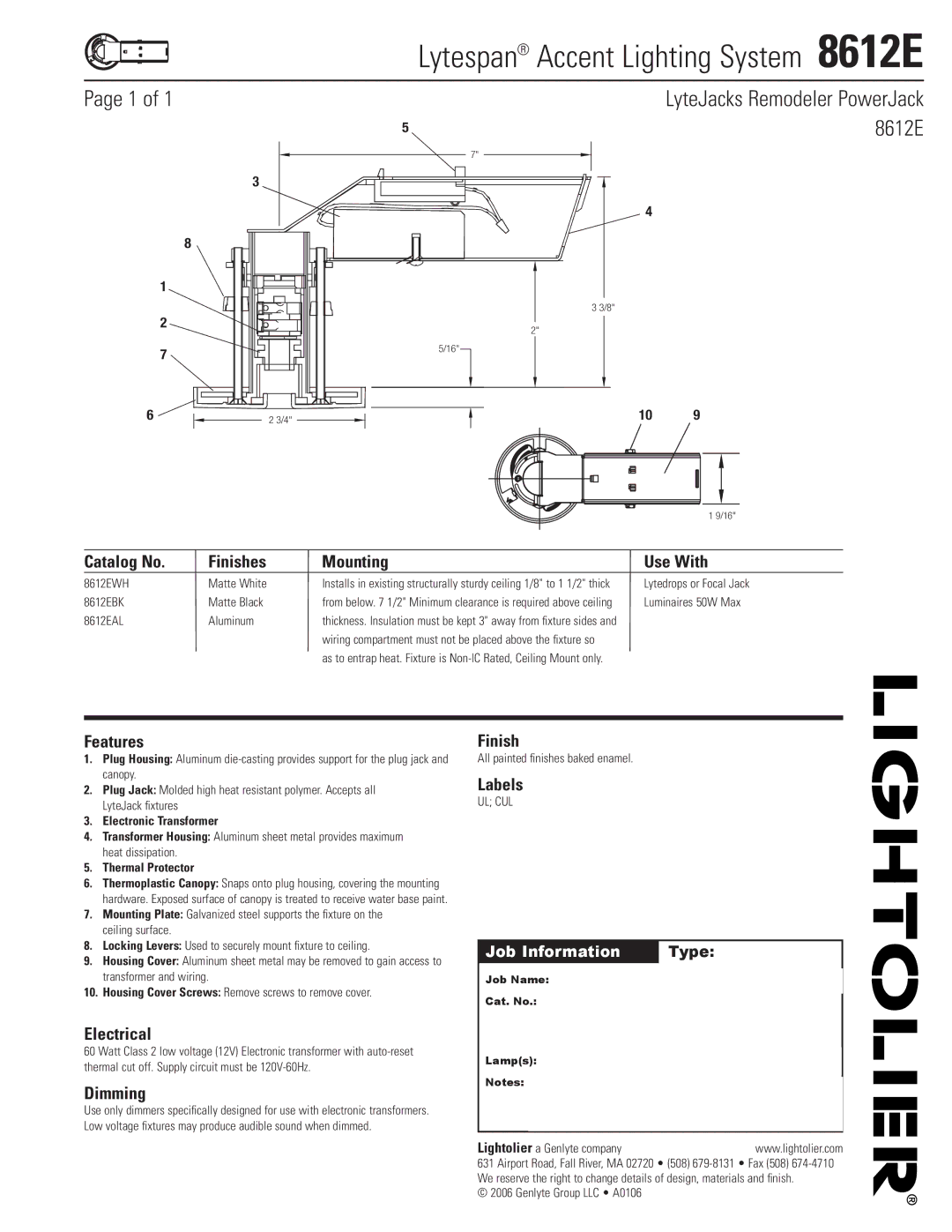

Lytespan® Accent Lighting System  8612E

Page 1 of 1

3

8

1

2

7

5

7"

4

3 3/8"

2"

5/16"

LyteJacks Remodeler PowerJack 8612E

6

2 3/4"

10

9







1 9/16"









Catalog No.

Finishes

Mounting

Use With

8612EWH

Matte White

lnstalls in existing structurally sturdy ceiling 1/8" to 1 1/2" thick

Lytedrops or Focal Jack

8612EBK

Matte Black

from below. 7 1/2" Minimum clearance is required above ceiling

Luminaires 50W Max

8612EAL

Aluminum

thickness. Insulation must be kept 3" away from fixture sides and







wiring compartment must not be placed above the fixture so







as to entrap heat. Fixture is Non-IC Rated, Ceiling Mount only.



Features

1.Plug Housing: Aluminum die-casting provides support for the plug jack and canopy.

2.Plug Jack: Molded high heat resistant polymer. Accepts all LyteJack fixtures

3.Electronic Transformer

4.Transformer Housing: Aluminum sheet metal provides maximum heat dissipation.

5.Thermal Protector

6.Thermoplastic Canopy: Snaps onto plug housing, covering the mounting hardware. Exposed surface of canopy is treated to receive water base paint.

7.Mounting Plate: Galvanized steel supports the fixture on the ceiling surface.

8.Locking Levers: Used to securely mount fixture to ceiling.

9.Housing Cover: Aluminum sheet metal may be removed to gain access to transformer and wiring.

10.Housing Cover Screws: Remove screws to remove cover.

Electrical

60 Watt Class 2 low voltage (12V) Electronic transformer with auto-reset thermal cut off. Supply circuit must be 120V-60Hz.

Dimming

Use only dimmers specifically designed for use with electronic transformers. Low voltage fixtures may produce audible sound when dimmed.

Finish

All painted finishes baked enamel.

Labels

UL; CUL

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • A0106
