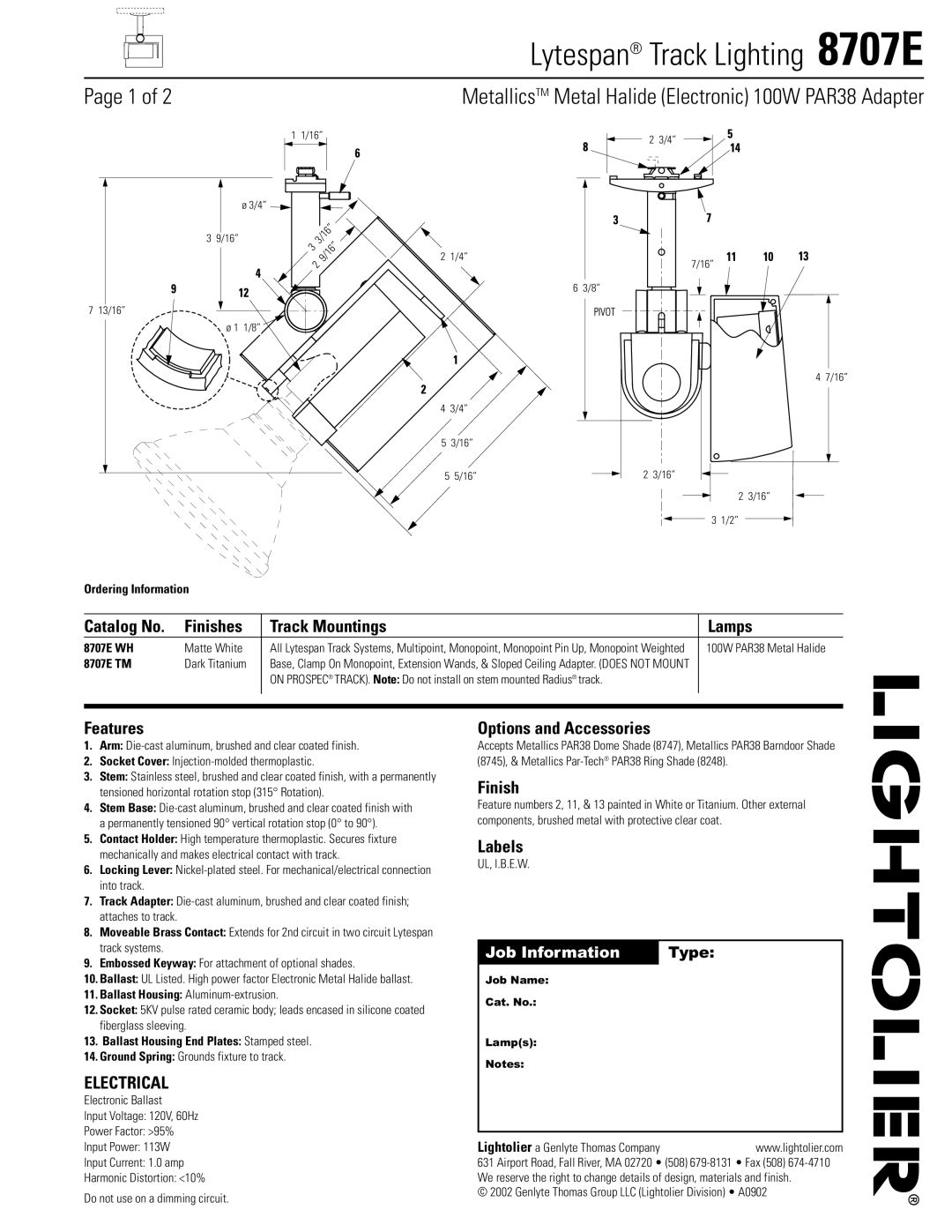

Lytespan® Track Lighting 8707E

Page 1 of 2

1 1/16”

ø 3/4”

3 9/16”

MetallicsTM Metal Halide (Electronic) 100W PAR38 Adapter

2 3/4”

3	9/16”
2

7 13/16”

ø 1 1/8”

2 1/4”

6 3/8”

43/4”

53/16”

5 5/16”

7/16”

4 7/16”

2 3/16”

2 3/16”

3 1/2”

Ordering Information

Catalog No.	Finishes	Track Mountings	Lamps
8707E WH	Matte White	All Lytespan Track Systems, Multipoint, Monopoint, Monopoint Pin Up, Monopoint Weighted	100W PAR38 Metal Halide
8707E TM	Dark Titanium	Base, Clamp On Monopoint, Extension Wands, & Sloped Ceiling Adapter. (DOES NOT MOUNT
		ON PROSPEC® TRACK). Note: Do not install on stem mounted Radius® track.

Features

1.Arm: Die-cast aluminum, brushed and clear coated finish.

2.Socket Cover: Injection-molded thermoplastic.

3.Stem: Stainless steel, brushed and clear coated finish, with a permanently tensioned horizontal rotation stop (315° Rotation).

4.Stem Base: Die-cast aluminum, brushed and clear coated finish with a permanently tensioned 90° vertical rotation stop (0° to 90°).

5.Contact Holder: High temperature thermoplastic. Secures fixture mechanically and makes electrical contact with track.

6.Locking Lever: Nickel-plated steel. For mechanical/electrical connection into track.

7.Track Adapter: Die-cast aluminum, brushed and clear coated finish; attaches to track.

8.Moveable Brass Contact: Extends for 2nd circuit in two circuit Lytespan track systems.

9.Embossed Keyway: For attachment of optional shades.

10.Ballast: UL Listed. High power factor Electronic Metal Halide ballast.

11.Ballast Housing: Aluminum-extrusion.

12.Socket: 5KV pulse rated ceramic body; leads encased in silicone coated fiberglass sleeving.

13.Ballast Housing End Plates: Stamped steel.

14.Ground Spring: Grounds fixture to track.

ELECTRICAL

Electronic Ballast

Input Voltage: 120V, 60Hz

Power Factor: >95%

Input Power: 113W

Input Current: 1.0 amp

Harmonic Distortion: <10%

Do not use on a dimming circuit.

Options and Accessories

Accepts Metallics PAR38 Dome Shade (8747), Metallics PAR38 Barndoor Shade (8745), & Metallics Par-Tech®PAR38 Ring Shade (8248).

Finish

Feature numbers 2, 11, & 13 painted in White or Titanium. Other external components, brushed metal with protective clear coat.

Labels

UL, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
