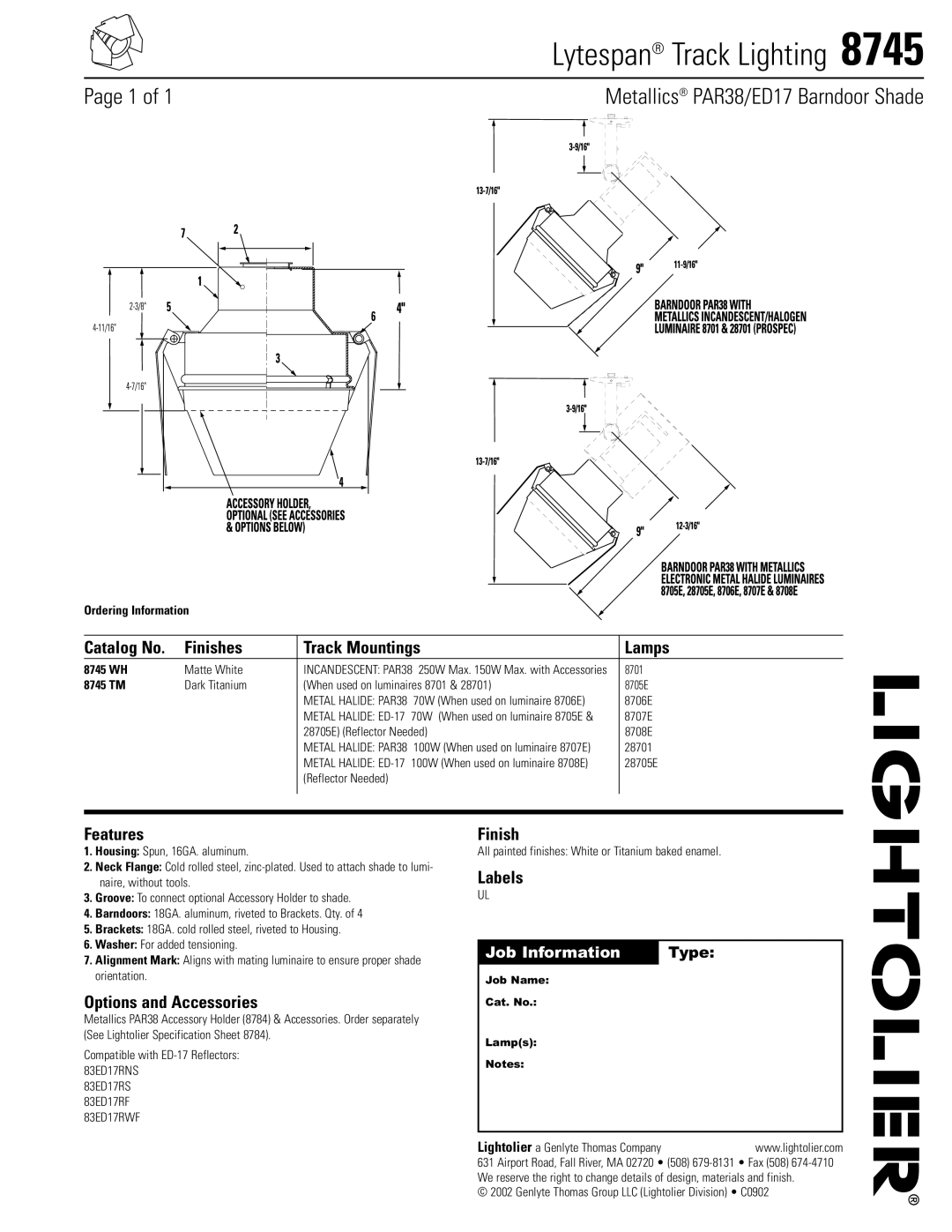

Lytespan® Track Lighting 8745

Page 1 of 1 Metallics® PAR38/ED17 Barndoor Shade

Ordering Information

Catalog No.	Finishes	Track Mountings	Lamps
8745 WH	Matte White	INCANDESCENT: PAR38 250W Max. 150W Max. with Accessories	8701
8745 TM	Dark Titanium	(When used on luminaires 8701 & 28701)	8705E
		METAL HALIDE: PAR38 70W (When used on luminaire 8706E)	8706E
		METAL HALIDE: ED-17 70W (When used on luminaire 8705E &	8707E
		28705E) (Reflector Needed)	8708E
		METAL HALIDE: PAR38 100W (When used on luminaire 8707E)	28701
		METAL HALIDE: ED-17 100W (When used on luminaire 8708E)	28705E
		(Reflector Needed)

Features

1.Housing: Spun, 16GA. aluminum.

2.Neck Flange: Cold rolled steel, zinc-plated. Used to attach shade to lumi- naire, without tools.

3.Groove: To connect optional Accessory Holder to shade.

4.Barndoors: 18GA. aluminum, riveted to Brackets. Qty. of 4

5.Brackets: 18GA. cold rolled steel, riveted to Housing.

6.Washer: For added tensioning.

7.Alignment Mark: Aligns with mating luminaire to ensure proper shade orientation.

Options and Accessories

Metallics PAR38 Accessory Holder (8784) & Accessories. Order separately (See Lightolier Specification Sheet 8784).

Compatible with ED-17 Reflectors: 83ED17RNS

83ED17RS

83ED17RF

83ED17RWF

Finish

All painted finishes: White or Titanium baked enamel.

Labels

UL

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • C0902
