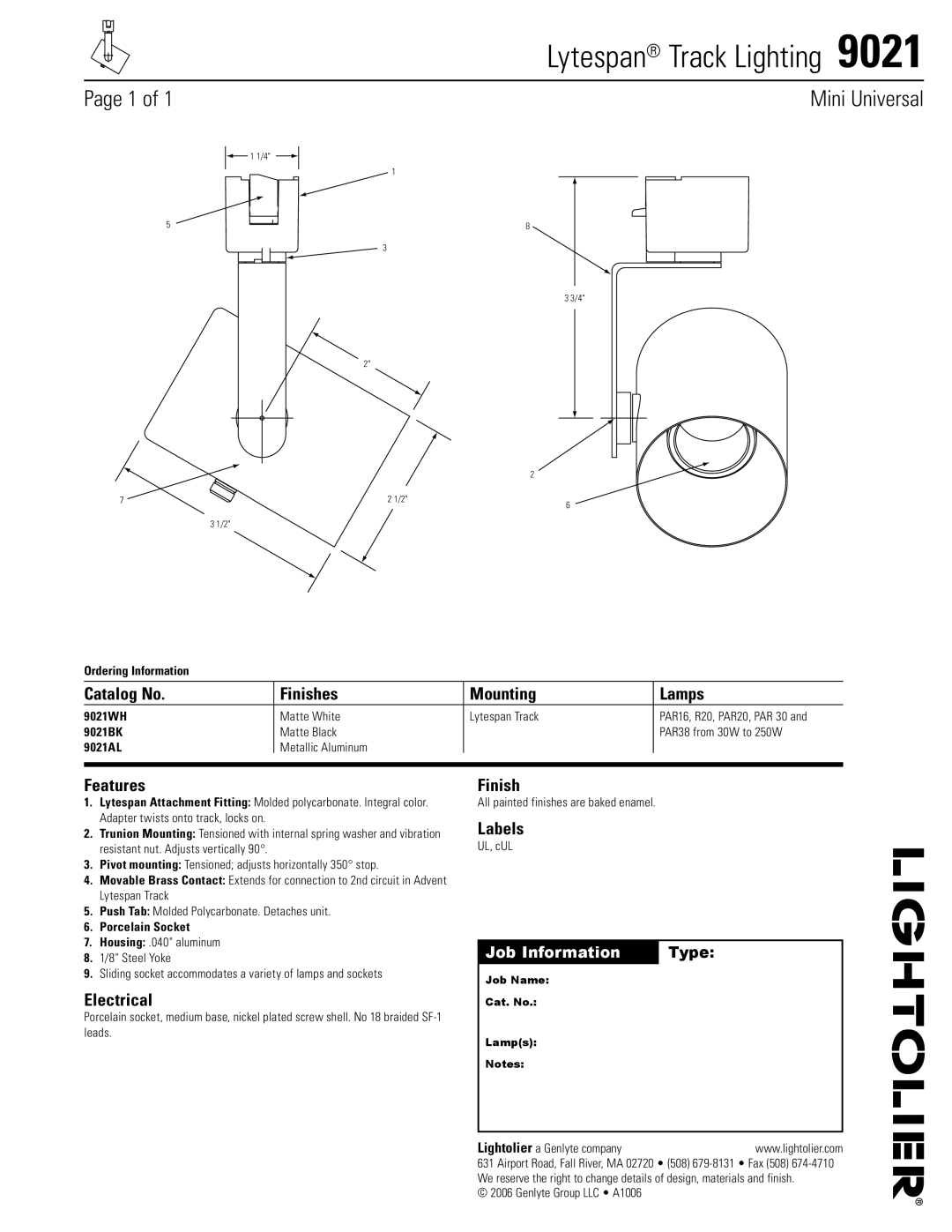

Lytespan® Track Lighting  9021

Page of 1

1 1/4"

5

7

3 1/2"

Mini Universal

1

8

3

3 3/4"

2"

	2
2 1/2"	6

Ordering Information

Catalog No.	Finishes	Mounting	Lamps
9021WH	Matte White	Lytespan Track	PAR16, R20, PAR20, PAR 30 and
9021BK	Matte Black		PAR38 from 30W to 250W
9021AL	Metallic Aluminum

Features

1.Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Adapter twists onto track, locks on.

2.Trunion Mounting: Tensioned with internal spring washer and vibration resistant nut. Adjusts vertically 90°.

3.Pivot mounting: Tensioned; adjusts horizontally 350° stop.

4.Movable Brass Contact: Extends for connection to 2nd circuit in Advent Lytespan Track

5.Push Tab: Molded Polycarbonate. Detaches unit.

6.Porcelain Socket

7.Housing: .040" aluminum

8.1/8" Steel Yoke

9.Sliding socket accommodates a variety of lamps and sockets

Electrical

Porcelain socket, medium base, nickel plated screw shell. No 18 braided SF-1 leads.

Finish

All painted finishes are baked enamel.

Labels

UL, cUL

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • A1006
