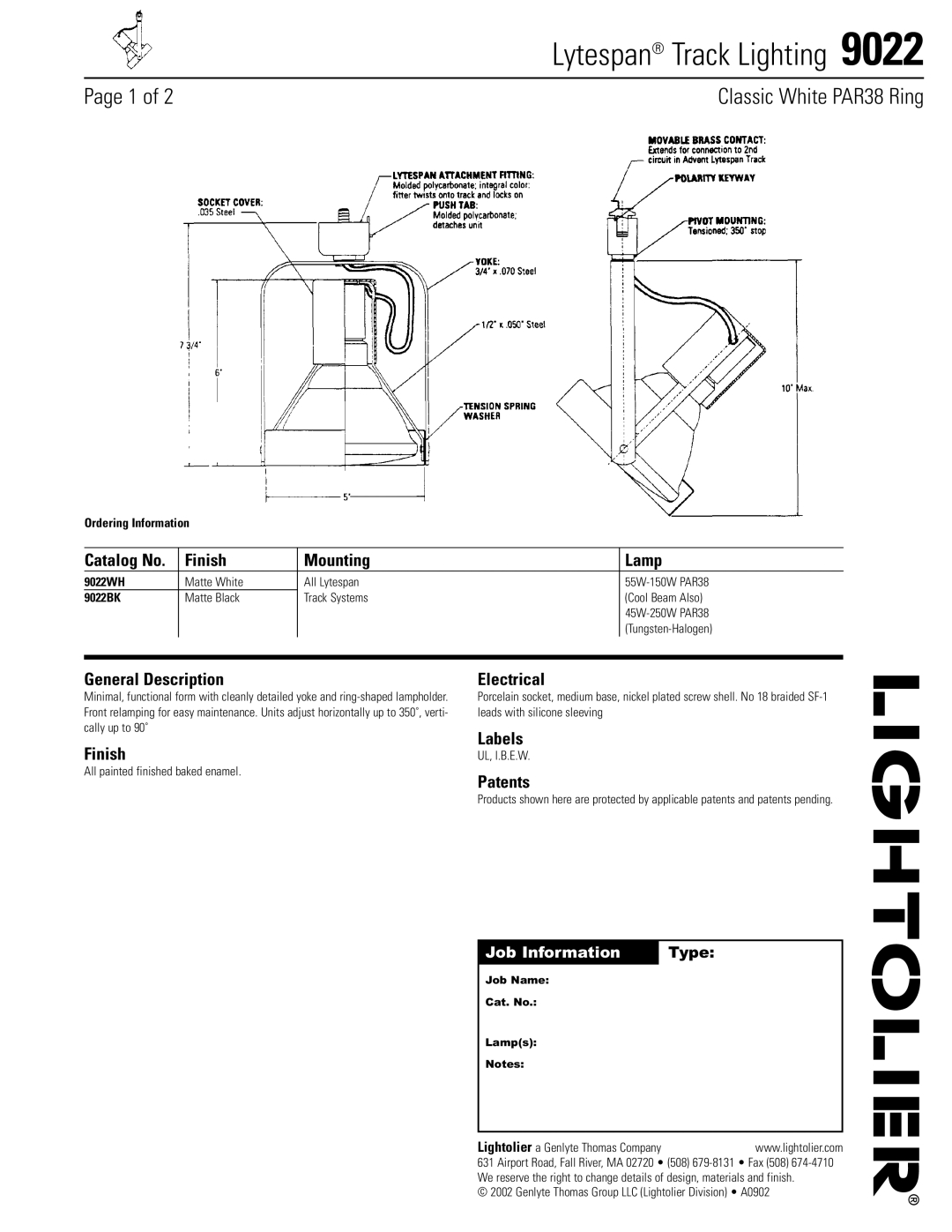

Lytespan® Track Lighting 9022

Page 1 of 2 Classic White PAR38 Ring

Ordering Information

Catalog No.	Finish	Mounting		Lamp
9022WH	Matte White	All Lytespan		55W-150W PAR38
9022BK	Matte Black	Track Systems		(Cool Beam Also)
				45W-250W PAR38
				(Tungsten-Halogen)
General Description			Electrical

Minimal, functional form with cleanly detailed yoke and ring-shaped lampholder. Front relamping for easy maintenance. Units adjust horizontally up to 350˚, verti- cally up to 90˚

Finish

All painted finished baked enamel.

Porcelain socket, medium base, nickel plated screw shell. No 18 braided SF-1 leads with silicone sleeving

Labels

UL, I.B.E.W.

Patents

Products shown here are protected by applicable patents and patents pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
