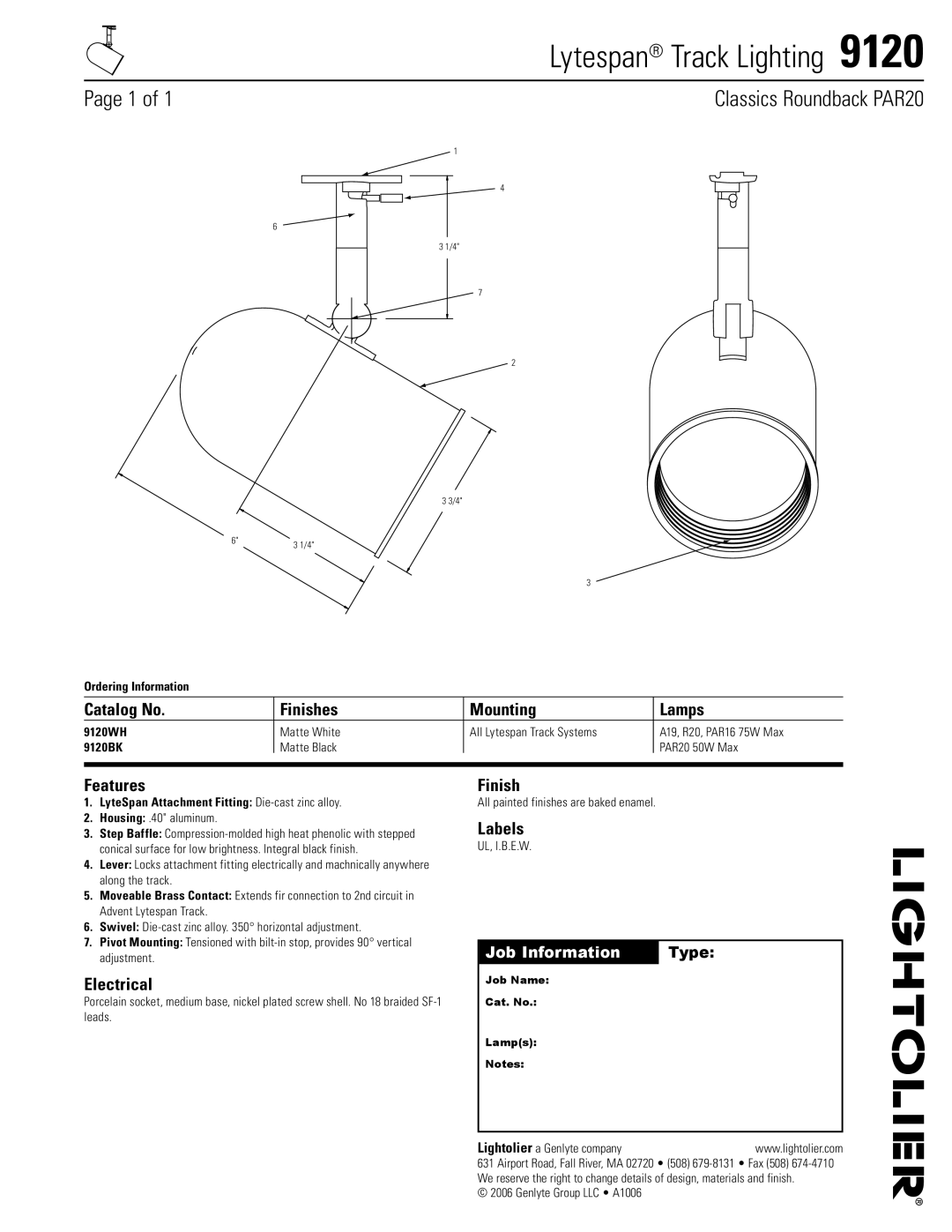

	Lytespan® Track Lighting  9120
Page of 1	Classics Roundback PAR20

1

4

6

3 1/4"

7

2

3 3/4"

6" 3 1/4"

3

Ordering Information

Catalog No.	Finishes	Mounting	Lamps
9120WH	Matte White	All Lytespan Track Systems	A19, R20, PAR16 75W Max
9120BK	Matte Black		PAR20 50W Max

Features

1.LyteSpan Attachment Fitting: Die-cast zinc alloy.

2.Housing: .40" aluminum.

3.Step Baffle: Compression-molded high heat phenolic with stepped conical surface for low brightness. Integral black finish.

4.Lever: Locks attachment fitting electrically and machnically anywhere along the track.

5.Moveable Brass Contact: Extends fir connection to 2nd circuit in Advent Lytespan Track.

6.Swivel: Die-cast zinc alloy. 350° horizontal adjustment.

7.Pivot Mounting: Tensioned with bilt-in stop, provides 90° vertical adjustment.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No 18 braided SF-1 leads.

Finish

All painted finishes are baked enamel.

Labels

UL, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
