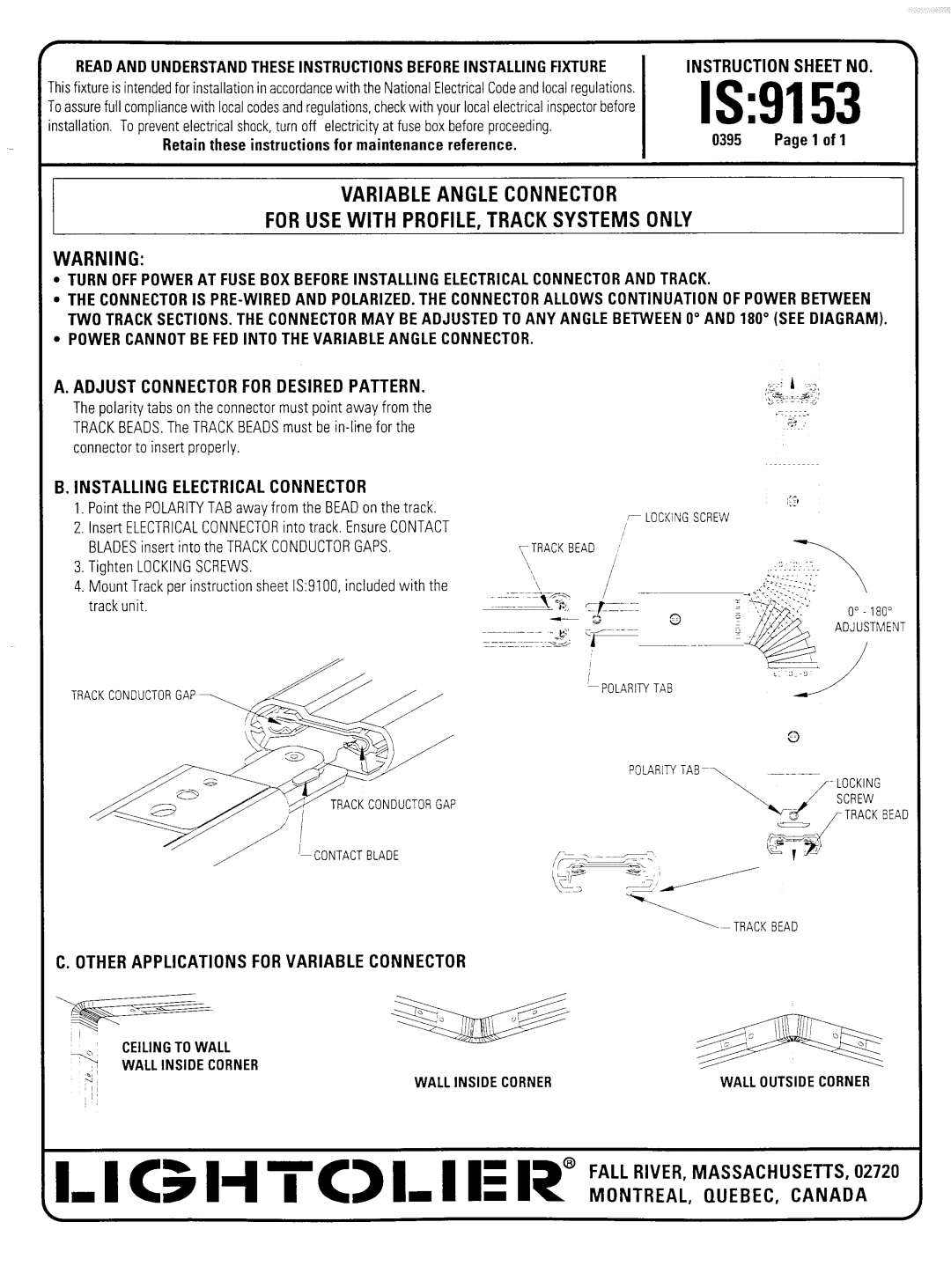

Lightolier instruction sheet IS9153

.

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

“his fixture is intended for installation in accordance with the National Electrical Code and local regulations, ‘o assure full compliance with local codes and regulations, check with your local electrical inspector before wtallation. Toprevent electrical shock, turnoff electricity at fuse box before proceeding.

T

INSTRUCTION SHEET NO.

IS:9153

Retain these instructions for maintenance reference.

0395 Page 1 of 1

VARIABLEANGLE CONNECTOR

FOR USE WITH PROFILE,TRACKSYSTEMS ONLY

WARNING:

●TURN OFF POWER AT FUSE BOX BEFORE INSTALLING ELECTRICAL CONNECTOR AND TRACK.

●THE CONNECTOR IS PRE-WIRED AND POLARIZED. THE CONNECTOR ALLOWS CONTINUATION OF POWER BETWEEN TWO TRACK SECTIONS. THE CONNECTOR MAY BE ADJUSTED TO ANY ANGLE BETWEEN 0° AND 180° (SEE DIAGRAM).

●POWER CANNOT BE FED INTO THE VARIABLE ANGLE CONNECTOR.

A. ADJUST CONNECTOR FOR DESIRED PATTERN.

The polarity tabs on the connector must point away from the

TRACK BEADS. The TRACK BEADS must be in-line for the

connector to insert properly.

B. INSTALLING ELECTRICAL CONNECTOR

1.Point the POLARITY TAB away from the BEAD on the track.

2.Insert ELECTRICAL CONNECTOR into track. Ensure CONTACT BLADES insert into the TRACK CONDUCTOR GAPS.

3.Tighten LOCKING SCREWS.

4.Mount Track per instruction sheet IS:91OO, included with the track unit.

TRACK CONDUCTOR GAP

‘—CONTACT BLAOE

,:= A ,,,

,.>=.=...x_<,:-,

. .... ....3

. ... . ...

,:.+

::;,

,~ LOCKINGSCREW

/

~TRACK BE

\

‘,

.___ J_,

:1:: --:s”-~,

180”

TMENT

9

,oAR~TAB->~BEAD

—

. —=

,

-—–- . ,ffi_:=:-~-

k:? s“~

%- TRACK BEAD

C. OTHER APPLICATIONS FOR VARIABLE CONNECTOR

--$	CEILING TO WALL
	WALL	INSIDE CDRNER		+-
~’
			WALL INSIDE CORNER	WALL OUTSIDE CORNER
,,
~,

				@ FALL RIVER,	MASSACHUSETTS,		02720
1.1	C>l+icml	1:	1?	MONTREAL,	QUEBEC,	CANADA
