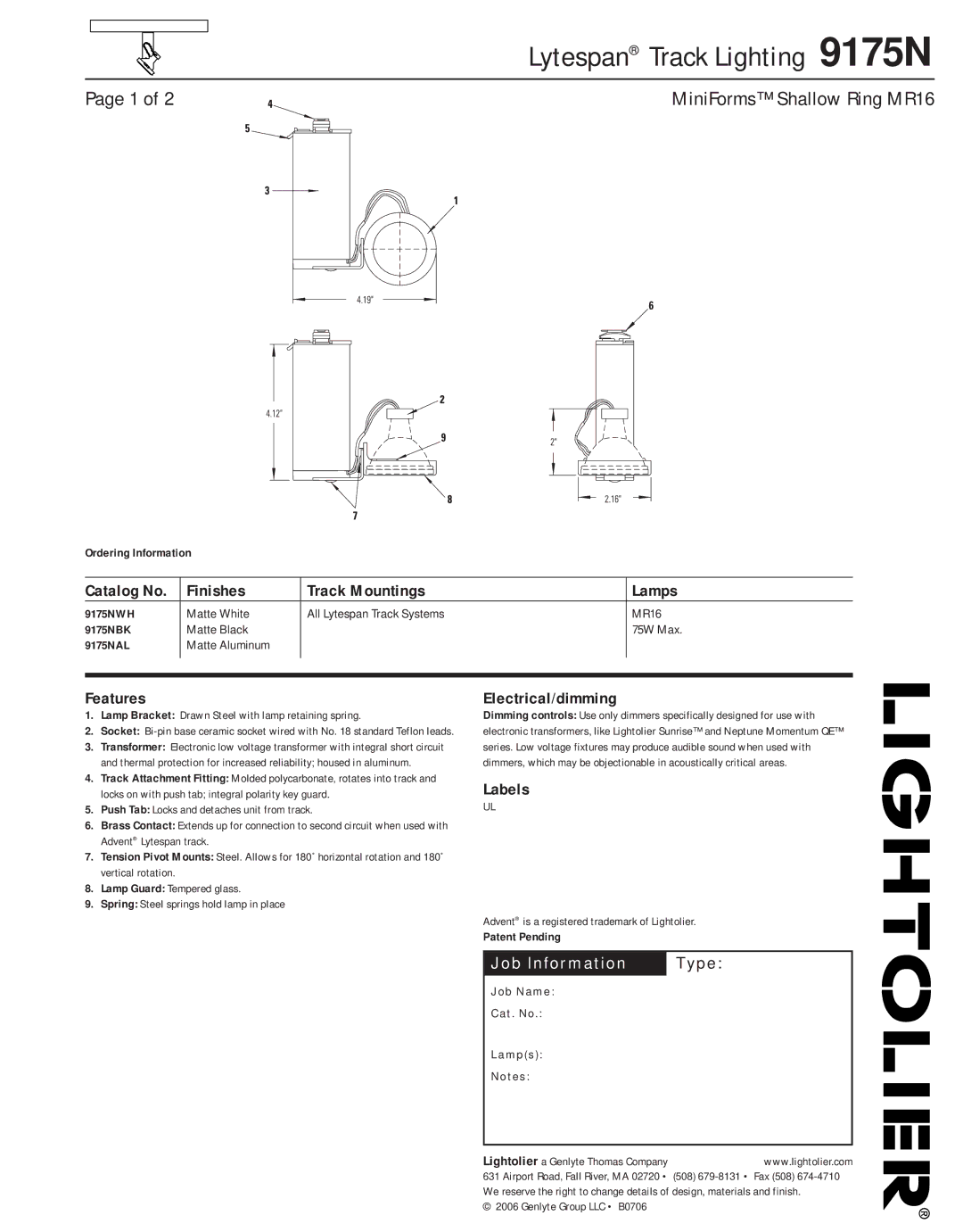

Lytespan® Track Lighting 9175N

Page 1 of 2 MiniForms™ Shallow Ring MR16

Ordering Information

Catalog No.	Finishes	Track Mountings	Lamps
9175NWH	Matte White	All Lytespan Track Systems	MR16
9175NBK	Matte Black		75W Max.
9175NAL	Matte Aluminum

Features

1.Lamp Bracket: Drawn Steel with lamp retaining spring.

2.Socket: Bi-pin base ceramic socket wired with No. 18 standard Teflon leads.

3.Transformer: Electronic low voltage transformer with integral short circuit and thermal protection for increased reliability; housed in aluminum.

4.Track Attachment Fitting: Molded polycarbonate, rotates into track and locks on with push tab; integral polarity key guard.

5.Push Tab: Locks and detaches unit from track.

6.Brass Contact: Extends up for connection to second circuit when used with Advent® Lytespan track.

7.Tension Pivot Mounts: Steel. Allows for 180˚ horizontal rotation and 180˚ vertical rotation.

8.Lamp Guard: Tempered glass.

9.Spring: Steel springs hold lamp in place

Electrical/dimming

Dimming controls: Use only dimmers specifically designed for use with electronic transformers, like Lightolier Sunrise™ and Neptune Momentum QE™ series. Low voltage fixtures may produce audible sound when used with dimmers, which may be objectionable in acoustically critical areas.

Labels

UL

Advent® is a registered trademark of Lightolier.

Patent Pending
