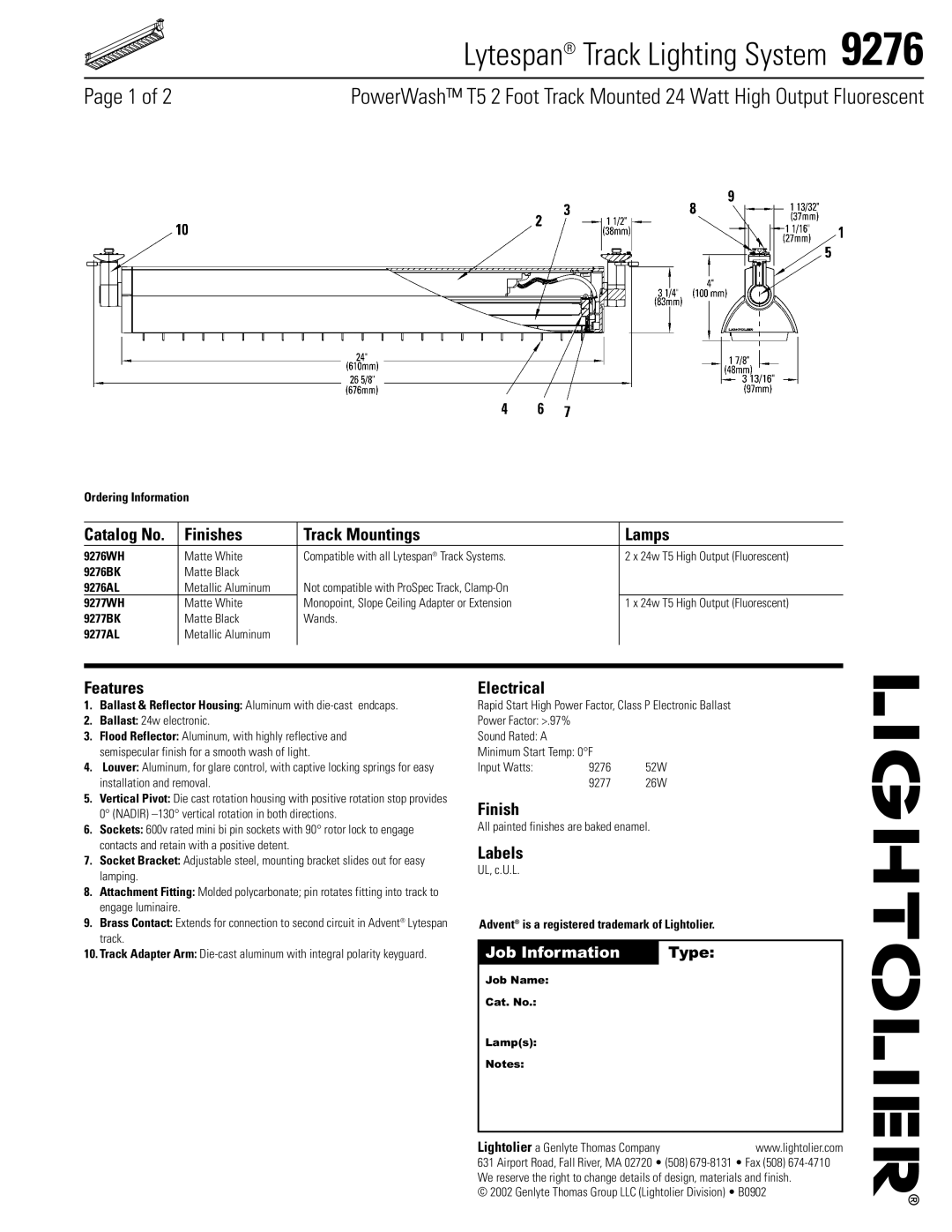

Lytespan® Track Lighting System 9276

Page 1 of 2

PowerWash™ T5 2 Foot Track Mounted 24 Watt High Output Fluorescent

Ordering Information

Catalog No.

Finishes

Track Mountings

Lamps

9276WH

Matte White

Compatible with all Lytespan® Track Systems.

2 x 24w T5 High Output (Fluorescent)

9276BK

Matte Black





9276AL

Metallic Aluminum

Not compatible with ProSpec Track, Clamp-On



9277WH

Matte White

Monopoint, Slope Ceiling Adapter or Extension

1 x 24w T5 High Output (Fluorescent)

9277BK

Matte Black

Wands.



9277AL

Metallic Aluminum













Features

1.Ballast & Reflector Housing: Aluminum with die-cast endcaps.

2.Ballast: 24w electronic.

3.Flood Reflector: Aluminum, with highly reflective and semispecular finish for a smooth wash of light.

4.Louver: Aluminum, for glare control, with captive locking springs for easy installation and removal.

5.Vertical Pivot: Die cast rotation housing with positive rotation stop provides 0° (NADIR) –130° vertical rotation in both directions.

6.Sockets: 600v rated mini bi pin sockets with 90° rotor lock to engage contacts and retain with a positive detent.

7.Socket Bracket: Adjustable steel, mounting bracket slides out for easy lamping.

8.Attachment Fitting: Molded polycarbonate; pin rotates fitting into track to engage luminaire.

9.Brass Contact: Extends for connection to second circuit in Advent® Lytespan track.

10.Track Adapter Arm: Die-cast aluminum with integral polarity keyguard.

Electrical

Rapid Start High Power Factor, Class P Electronic Ballast

Power Factor: >.97%

Sound Rated: A

Minimum Start Temp: 0°F

Input Watts:9276 52W

9277 26W

Finish

All painted finishes are baked enamel.

Labels

UL, c.U.L.

Advent® is a registered trademark of Lightolier.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • B0902

Page 1
