Lightolier 9538 manual Lytespan Track Lighting, Page of, Classics Roundback PAR38, Catalog No

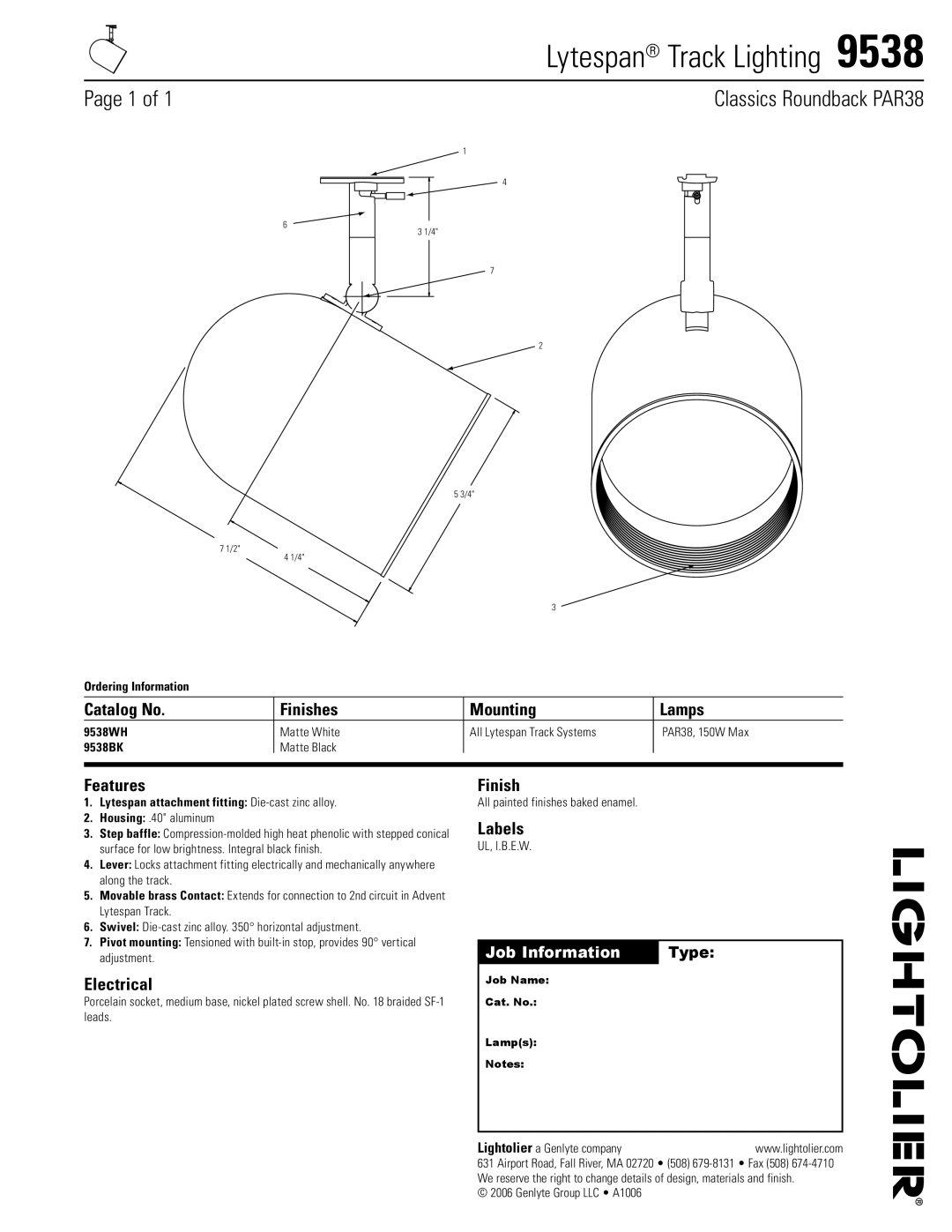

	Lytespan® Track Lighting  9538
Page of 1	Classics Roundback PAR38

6

1

4

3 1/4"

7

2

5 3/4"

7 1/2"

Ordering Information

4 1/4"

3

Catalog No.	Finishes	Mounting	Lamps
9538WH	Matte White	All Lytespan Track Systems	PAR38, 150W Max
9538BK	Matte Black

Features

1.Lytespan attachment fitting: Die-cast zinc alloy.

2.Housing: .40" aluminum

3.Step baffle: Compression-molded high heat phenolic with stepped conical surface for low brightness. Integral black finish.

4.Lever: Locks attachment fitting electrically and mechanically anywhere along the track.

5.Movable brass Contact: Extends for connection to 2nd circuit in Advent Lytespan Track.

6.Swivel: Die-cast zinc alloy. 350° horizontal adjustment.

7.Pivot mounting: Tensioned with built-in stop, provides 90° vertical adjustment.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • A1006
