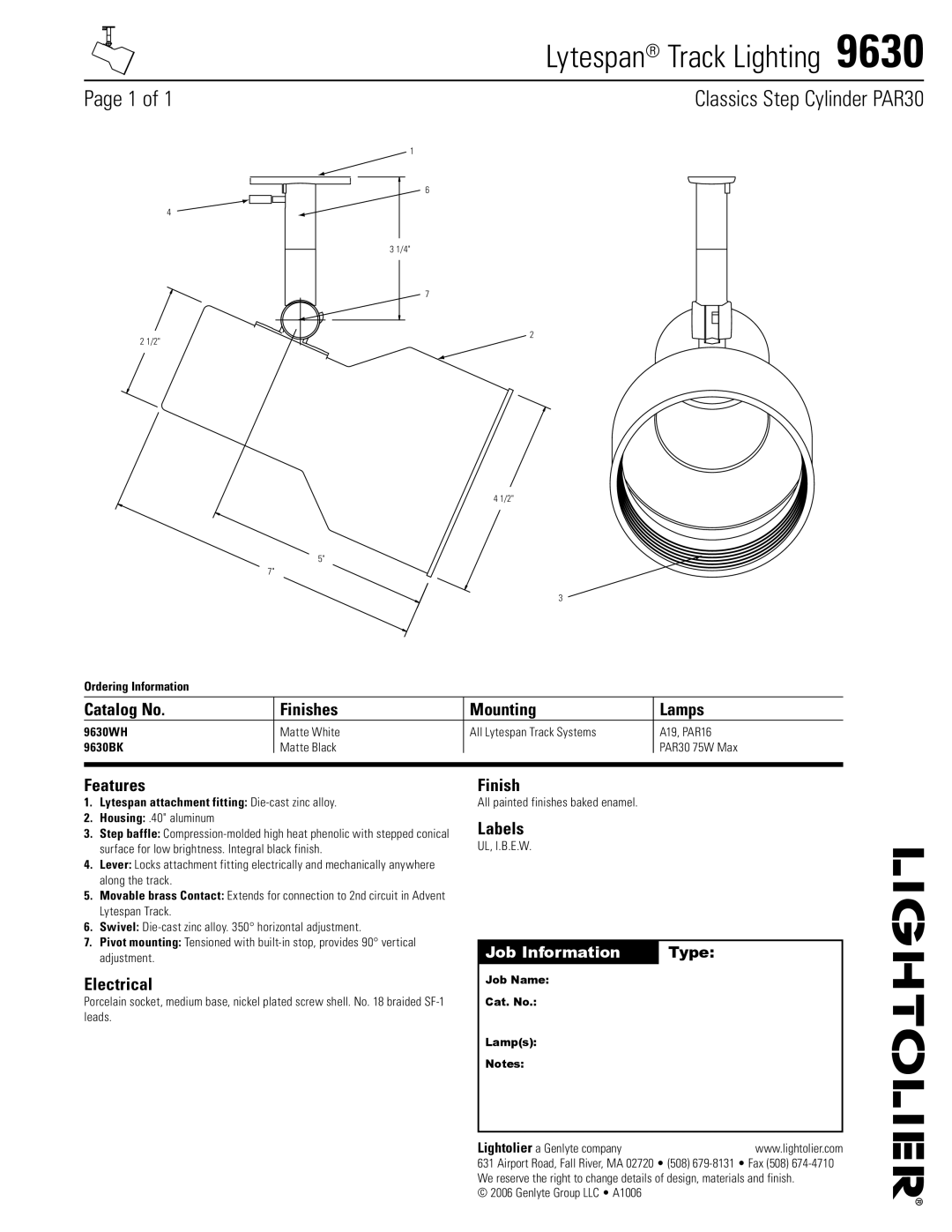

Lytespan® Track Lighting  9630

Page of 1

Classics Step Cylinder PAR30

1

6

4

3 1/4"

7

2 1/2"

2

4 1/2"

5"

7"

3

Ordering Information

Catalog No.

Finishes

Mounting

Lamps

9630WH

Matte White

All Lytespan Track Systems

A19, PAR16

9630BK

Matte Black



PAR30 75W Max









Features

1.Lytespan attachment fitting: Die-cast zinc alloy.

2.Housing: .40" aluminum

3.Step baffle: Compression-molded high heat phenolic with stepped conical surface for low brightness. Integral black finish.

4.Lever: Locks attachment fitting electrically and mechanically anywhere along the track.

5.Movable brass Contact: Extends for connection to 2nd circuit in Advent Lytespan Track.

6.Swivel: Die-cast zinc alloy. 350° horizontal adjustment.

7.Pivot mounting: Tensioned with built-in stop, provides 90° vertical adjustment.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • A1006

Page 1
