Lightolier ADS8G16MS140 manual Performance, Materials, Louver, Finish, Electrical, Labels

Section 2/Folio G09-10

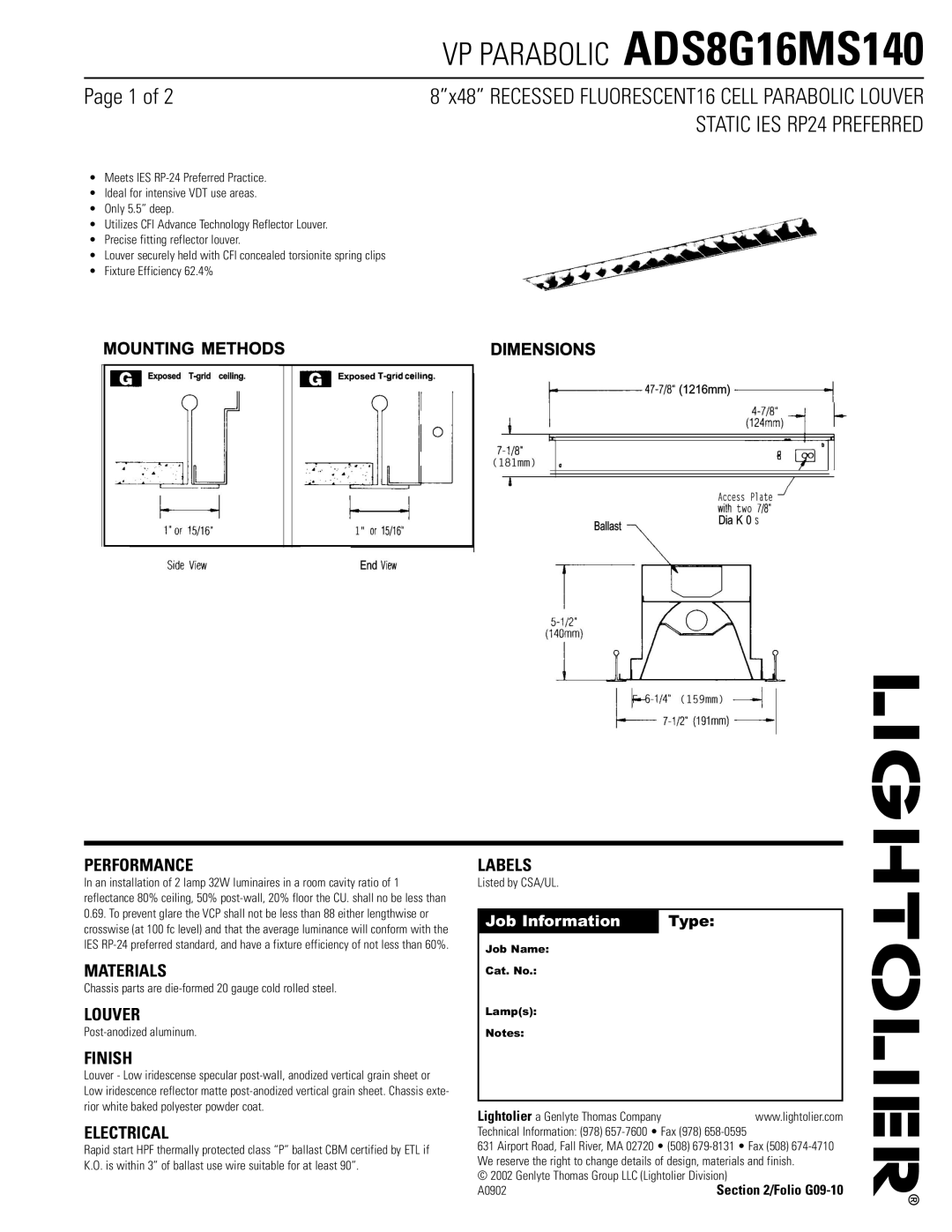

	VP PARABOLIC ADS8G16MS140
Page 1 of 2	8”x48” RECESSED FLUORESCENT16 CELL PARABOLIC LOUVER
	STATIC IES RP24 PREFERRED

•Meets IES RP-24 Preferred Practice.

•Ideal for intensive VDT use areas.

•Only 5.5” deep.

•Utilizes CFI Advance Technology Reflector Louver.

•Precise fitting reflector louver.

•Louver securely held with CFI concealed torsionite spring clips

•Fixture Efficiency 62.4%

PERFORMANCE

In an installation of 2 lamp 32W luminaires in a room cavity ratio of 1 reflectance 80% ceiling, 50% post-wall, 20% floor the CU. shall no be less than

0.69.To prevent glare the VCP shall not be less than 88 either lengthwise or crosswise (at 100 fc level) and that the average luminance will conform with the IES RP-24 preferred standard, and have a fixture efficiency of not less than 60%.

MATERIALS

Chassis parts are die-formed 20 gauge cold rolled steel.

LOUVER

Post-anodized aluminum.

FINISH

Louver - Low iridescense specular post-wall, anodized vertical grain sheet or Low iridescence reflector matte post-anodized vertical grain sheet. Chassis exte- rior white baked polyester powder coat.

ELECTRICAL

Rapid start HPF thermally protected class “P” ballast CBM certified by ETL if K.O. is within 3” of ballast use wire suitable for at least 90”.

LABELS

Listed by CSA/UL.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) A0902
