Lightolier specifications Lighting Systems Baselyte-BSL6, Page  of, Ordering Information

Lighting Systems  Baselyte-BSL6

Page  of 8

angled lamp

3 Light T5 HO Direct/Indirect

Ordering Information

Weight = 3.0 lb./ft





Family	Distribution
BSL	6
	6 = Direct/
	Indirect

Lamp Type	No. of Lamps
H		03
H = T5 HO	03 = 3 Light

Housing

CN

CN = Cutout w/baffles

	Module Length				Wiring		Voltage		Ballast
	04	= 4’		1 = 1cct.		D = Dual 120V		E = Standard
08		= 8’		2 = 2cct.			& 277V		<10% THD
12		= 12’		3 = 1cct. w/EC/NL		1 = 120V		F = Standard
			4		= 2cct. w/EC/NL	2 = 277V			<10% THD
			5		= 1cct. w/EM Battery				w/fusing
			6		= 2cct. w/EM Battery
			7		= 1cct. w/Dimming		Note: Option‘D’ is
			8		= 1cct. w/1cct.		standard. Voltage
			9		Thru wire		options 1 and 2 are
					= 2cct. w/1cct.		only available with
					Thru wire		EM Battery and
				Note: Please consult			Dimming wiring
				wiring section of spec			options.

sheets for more wiring options.

Finish

C = Custom Color

W = Standard

White

Specifications

Features

1.Housing: die-formed 20ga. cold rolled steel

2.End Set: die-cast metal with baked powder coat finish

3.Lamping: three T5 HO lamps

4.Configuration: 4’, 8’ and 12’ module lengths or continuous rows

5.Ballasts: electronic 120V or 277V

Finish

High-quality white powder coat with textured matte finish.

Custom colors available. Consult factory.

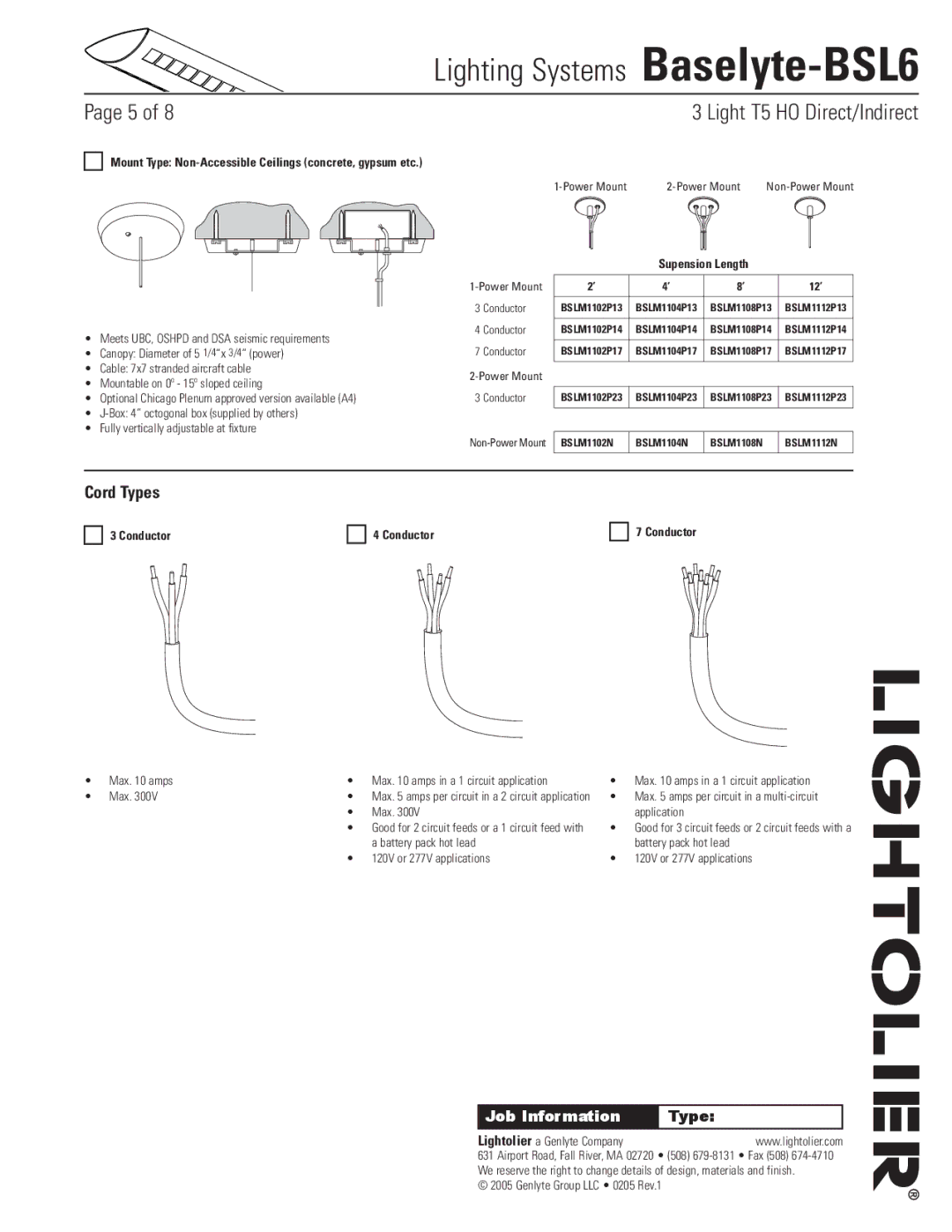

Mounting

Aircraft cable gripper is tamper-resistant and provides infinite vertical adjustment capability. Aircraft cable, crimp and cable gripper independently tested to meet stringent safety requirements.

Electrical

All luminaires are factory pre-wired to module ends with quick-wire connectors.

Joints & Intersections

Self-aligning joining system with hands-free pre-joining wire access.

Labels

UL, CSA standards.

Ordering Instructions

Individual Fixtures

1.Determine the number of individual modules required

2.Order one end set per module

3.Order one non-power mount per module

4.Order one power mount per module

Continuous Rows*

1.Determine run length

2.Order the appropriate number and length of modules for complete run

3.Order one end set for each run

4.Order one non-power mount for each module

5.Order one power mount per run

6.Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)

*Note: Some runs may require additional power mounts. Please see the ‘Run Configuration’ table on the next page for more details.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2005 Genlyte Group LLC • 0205 Rev.1
