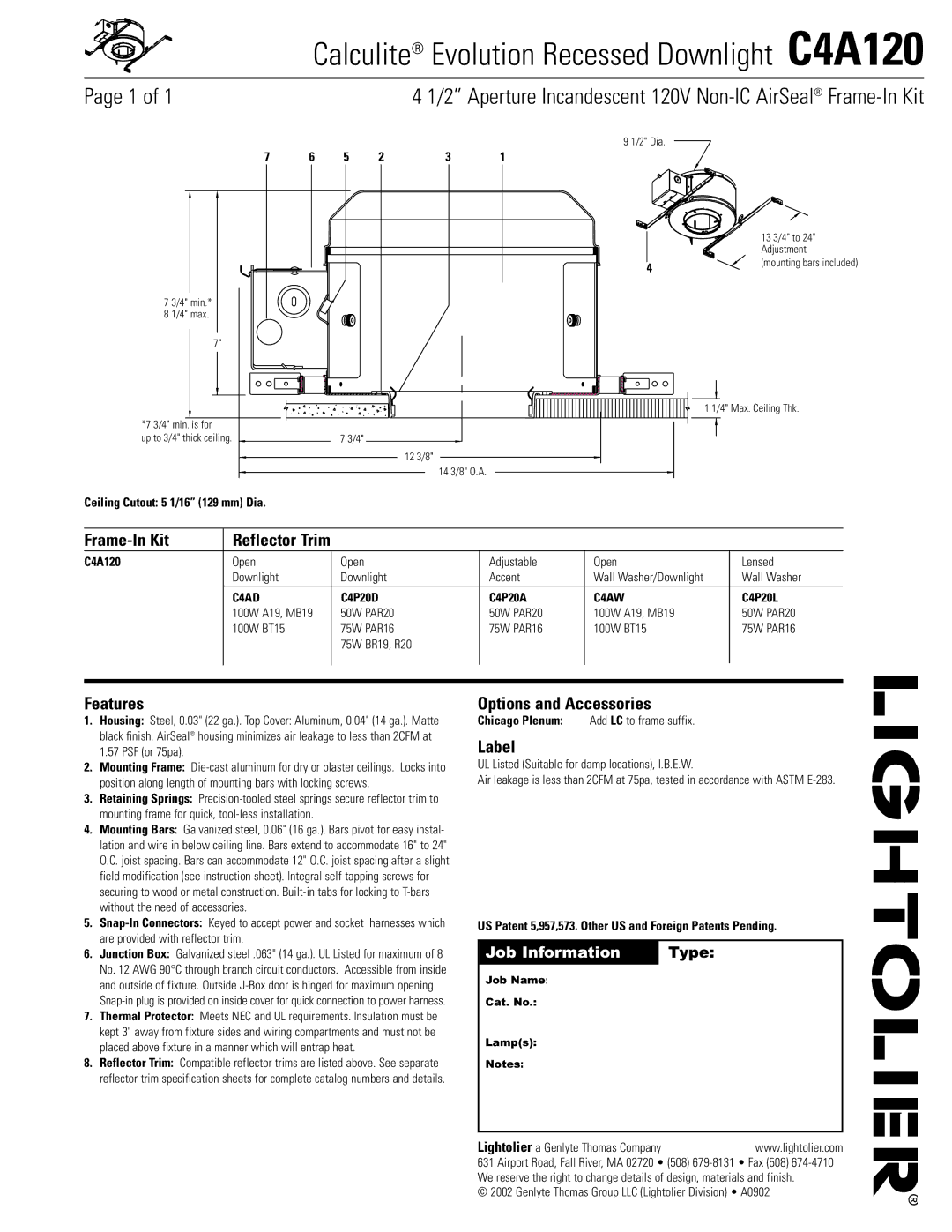

Calculite® Evolution Recessed Downlight C4A120

Page 1 of 1







4 1/2” Aperture Incandescent 120V Non-IC AirSeal® Frame-In Kit













9 1/2" Dia.

7

6

5

2

3

1















7

3/4" min.*



8

1/4" max.





7"



*7 3/4" min. is for



up to 3/4" thick ceiling.

7 3/4"





12 3/8"





14 3/8" O.A.

13 3/4" to 24" Adjustment

4

(mounting bars included)



1 1/4" Max. Ceiling Thk.

Ceiling Cutout: 5 1/16” (129 mm) Dia.

Frame-In Kit

Reflector Trim









C4A120

Open

Open

Adjustable

Open

Lensed



Downlight

Downlight

Accent

Wall Washer/Downlight

Wall Washer



C4AD

C4P20D

C4P20A

C4AW

C4P20L



100W A19, MB19

50W PAR20

50W PAR20

100W A19, MB19

50W PAR20



100W BT15

75W PAR16

75W PAR16

100W BT15

75W PAR16





75W BR19, R20































Features

1.Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte black finish. AirSeal® housing minimizes air leakage to less than 2CFM at 1.57 PSF (or 75pa).

2.Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into position along length of mounting bars with locking screws.

3.Retaining Springs: Precision-tooled steel springs secure reflector trim to mounting frame for quick, tool-less installation.

4.Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy instal- lation and wire in below ceiling line. Bars extend to accommodate 16" to 24" O.C. joist spacing. Bars can accommodate 12" O.C. joist spacing after a slight field modification (see instruction sheet). Integral self-tapping screws for securing to wood or metal construction. Built-in tabs for locking to T-bars without the need of accessories.

5.Snap-In Connectors: Keyed to accept power and socket harnesses which are provided with reflector trim.

6.Junction Box: Galvanized steel .063" (14 ga.). UL Listed for maximum of 8 No. 12 AWG 90°C through branch circuit conductors. Accessible from inside and outside of fixture. Outside J-Box door is hinged for maximum opening.

Snap-in plug is provided on inside cover for quick connection to power harness.

7.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

8.Reflector Trim: Compatible reflector trims are listed above. See separate reflector trim specification sheets for complete catalog numbers and details.

Options and Accessories

Chicago Plenum:

Add LC to frame suffix.

Label

UL Listed (Suitable for damp locations), I.B.E.W.

Air leakage is less than 2CFM at 75pa, tested in accordance with ASTM E-283.

US Patent 5,957,573. Other US and Foreign Patents Pending.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
