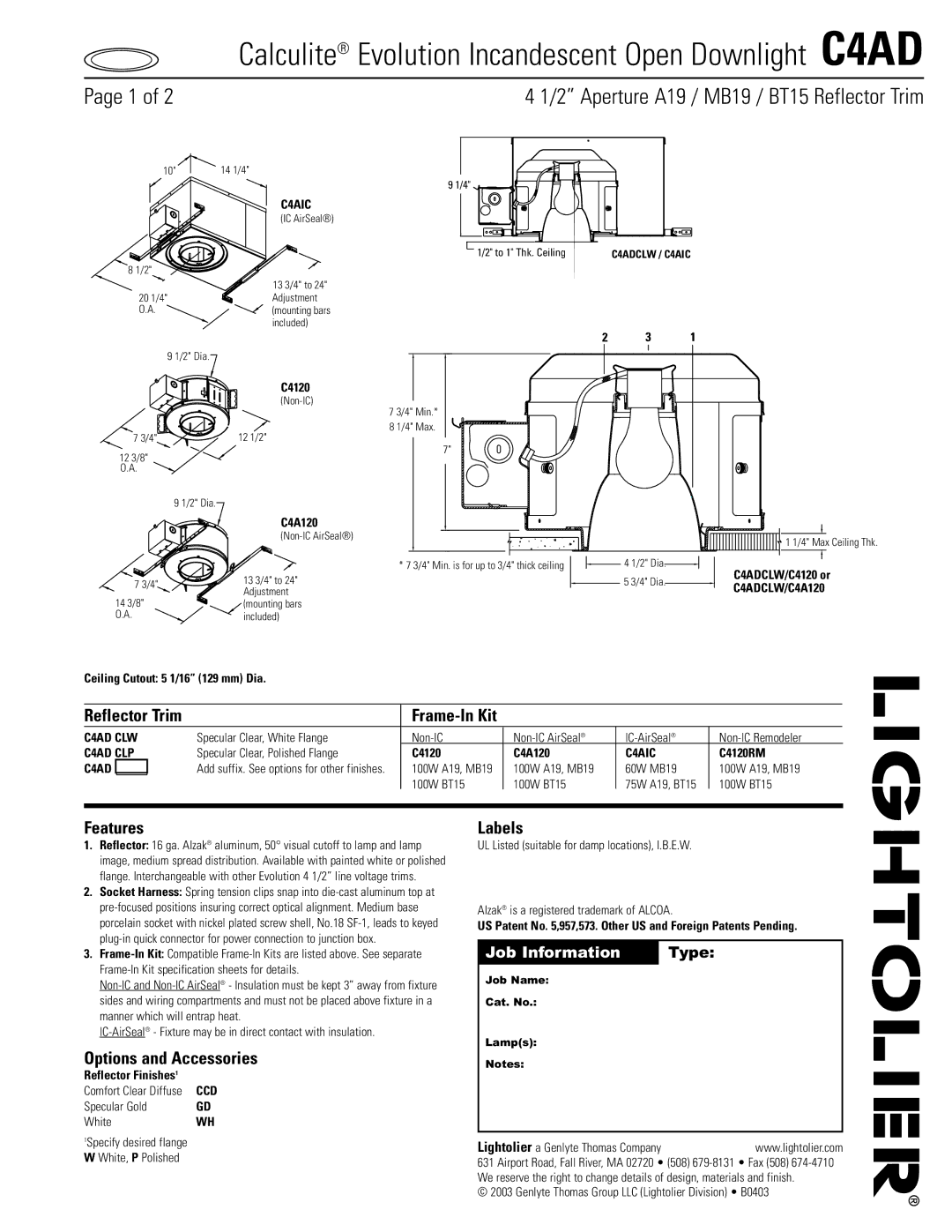

Lightolier C4AD specifications Page 1 of, 4 1/2” Aperture A19 / MB19 / BT15 Reflector Trim, Type

	Calculite® Evolution Incandescent Open Downlight C4AD
Page 1 of 2	4 1/2” Aperture A19 / MB19 / BT15 Reflector Trim

10"14 1/4"

9 1/4"

	C4AIC
	(IC AirSeal®)
	1/2" to 1" Thk. Ceiling
8 1/2"
	13 3/4" to 24"
20 1/4"	Adjustment
O.A.	(mounting bars
	included)

9 1/2" Dia.

C4120

(Non-IC)

7 3/4" Min.*

8 1/4" Max.

7 3/4" 12 1/2"

7"

12 3/8" O.A.

9 1/2" Dia.

C4A120

(Non-IC AirSeal®)

* 7 3/4" Min. is for up to 3/4" thick ceiling

7 3/4"	13 3/4" to 24"
	Adjustment
14 3/8"
	(mounting bars

O.A.included)

C4ADCLW / C4AIC

2 3 1

4 1/2" Dia.

5 3/4" Dia.

1 1/4" Max Ceiling Thk.

C4ADCLW/C4120 or

C4ADCLW/C4A120

Ceiling Cutout: 5 1/16” (129 mm) Dia.

Reflector Trim		Frame-In Kit
C4AD CLW	Specular Clear, White Flange	Non-IC	Non-IC AirSeal®	IC-AirSeal®	Non-IC Remodeler
C4AD CLP	Specular Clear, Polished Flange	C4120	C4A120	C4AIC	C4120RM
C4AD	Add suffix. See options for other finishes.	100W A19, MB19	100W A19, MB19	60W MB19	100W A19, MB19
		100W BT15	100W BT15	75W A19, BT15	100W BT15

Features

1.Reflector: 16 ga. Alzak® aluminum, 50° visual cutoff to lamp and lamp image, medium spread distribution. Available with painted white or polished flange. Interchangeable with other Evolution 4 1/2” line voltage trims.

2.Socket Harness: Spring tension clips snap into die-cast aluminum top at pre-focused positions insuring correct optical alignment. Medium base porcelain socket with nickel plated screw shell, No.18 SF-1, leads to keyed plug-in quick connector for power connection to junction box.

3.Frame-In Kit: Compatible Frame-In Kits are listed above. See separate Frame-In Kit specification sheets for details.

Non-IC and Non-IC AirSeal® - Insulation must be kept 3” away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

IC-AirSeal®- Fixture may be in direct contact with insulation.

Options and Accessories

Reflector Finishes1
Comfort Clear Diffuse	CCD
Specular Gold	GD
White	WH
1Specify desired flange
W White, P Polished

Labels

UL Listed (suitable for damp locations), I.B.E.W.

Alzak® is a registered trademark of ALCOA.

US Patent No. 5,957,573. Other US and Foreign Patents Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2003 Genlyte Thomas Group LLC (Lightolier Division) • B0403
