Lightolier C4CFL18 specifications 2Aperture Triple Tube CFL Conversion Kit

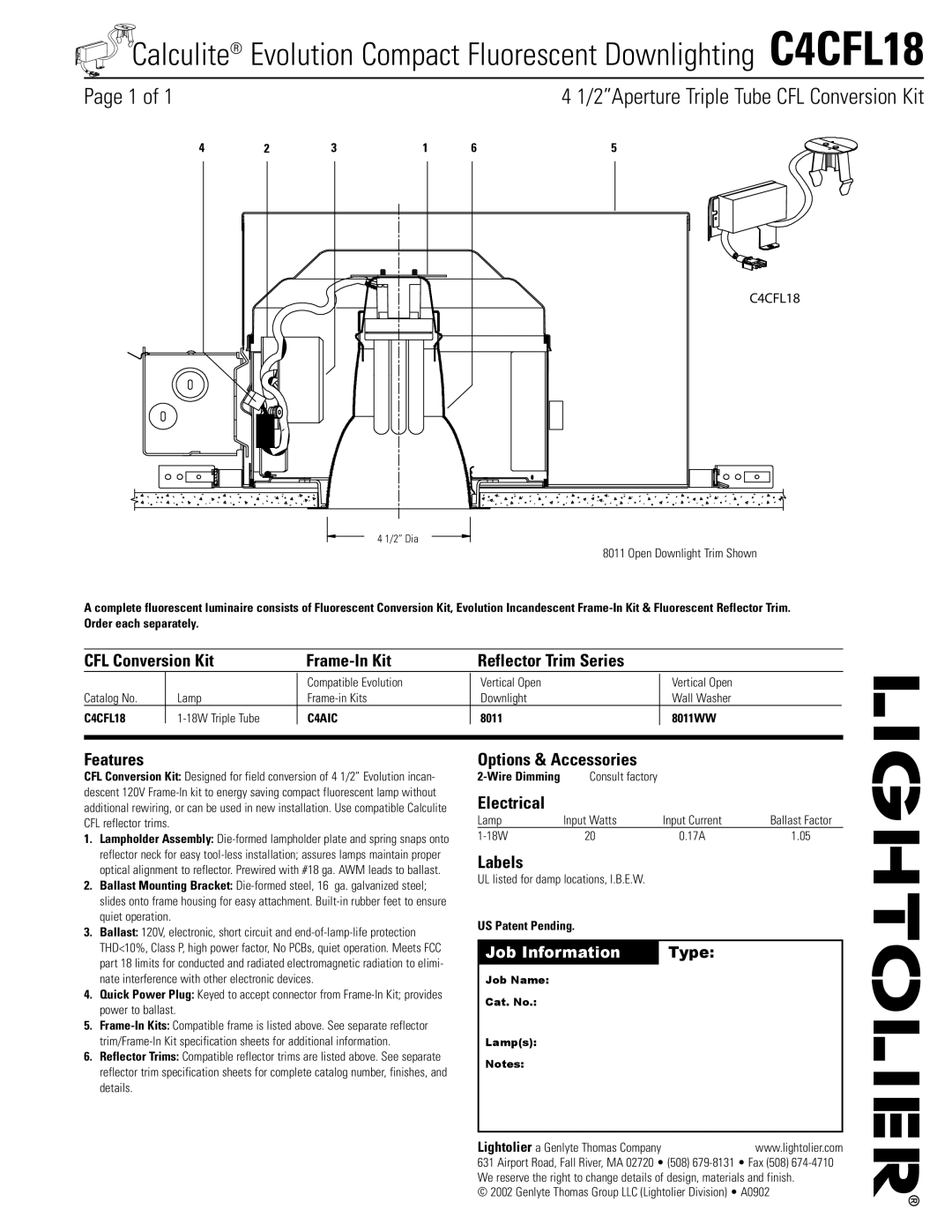

Calculite® Evolution Compact Fluorescent Downlighting C4CFL18

Page 1 of 1					4 1/2”Aperture Triple Tube CFL Conversion Kit
4	2	3	1	6	5

C4CFL18

4 1/2” Dia

8011 Open Downlight Trim Shown

A complete fluorescent luminaire consists of Fluorescent Conversion Kit, Evolution Incandescent Frame-In Kit & Fluorescent Reflector Trim. Order each separately.

CFL Conversion Kit		Frame-In Kit	Reflector Trim Series
		Compatible Evolution	Vertical Open	Vertical Open
Catalog No.	Lamp	Frame-in Kits	Downlight	Wall Washer
C4CFL18	1-18W Triple Tube	C4AIC	8011	8011WW

Features

CFL Conversion Kit: Designed for field conversion of 4 1/2” Evolution incan- descent 120V Frame-In kit to energy saving compact fluorescent lamp without additional rewiring, or can be used in new installation. Use compatible Calculite CFL reflector trims.

1.Lampholder Assembly: Die-formed lampholder plate and spring snaps onto reflector neck for easy tool-less installation; assures lamps maintain proper optical alignment to reflector. Prewired with #18 ga. AWM leads to ballast.

2.Ballast Mounting Bracket: Die-formed steel, 16 ga. galvanized steel; slides onto frame housing for easy attachment. Built-in rubber feet to ensure quiet operation.

3.Ballast: 120V, electronic, short circuit and end-of-lamp-life protection THD<10%, Class P, high power factor, No PCBs, quiet operation. Meets FCC part 18 limits for conducted and radiated electromagnetic radiation to elimi- nate interference with other electronic devices.

4.Quick Power Plug: Keyed to accept connector from Frame-In Kit; provides power to ballast.

5.Frame-In Kits: Compatible frame is listed above. See separate reflector trim/Frame-In Kit specification sheets for additional information.

6.Reflector Trims: Compatible reflector trims are listed above. See separate reflector trim specification sheets for complete catalog number, finishes, and details.

Options & Accessories

2-Wire Dimming Consult factory

Electrical

Lamp	Input Watts	Input Current	Ballast Factor
1-18W	20	0.17A	1.05

Labels

UL listed for damp locations, I.B.E.W.

US Patent Pending.

Job Information	Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
