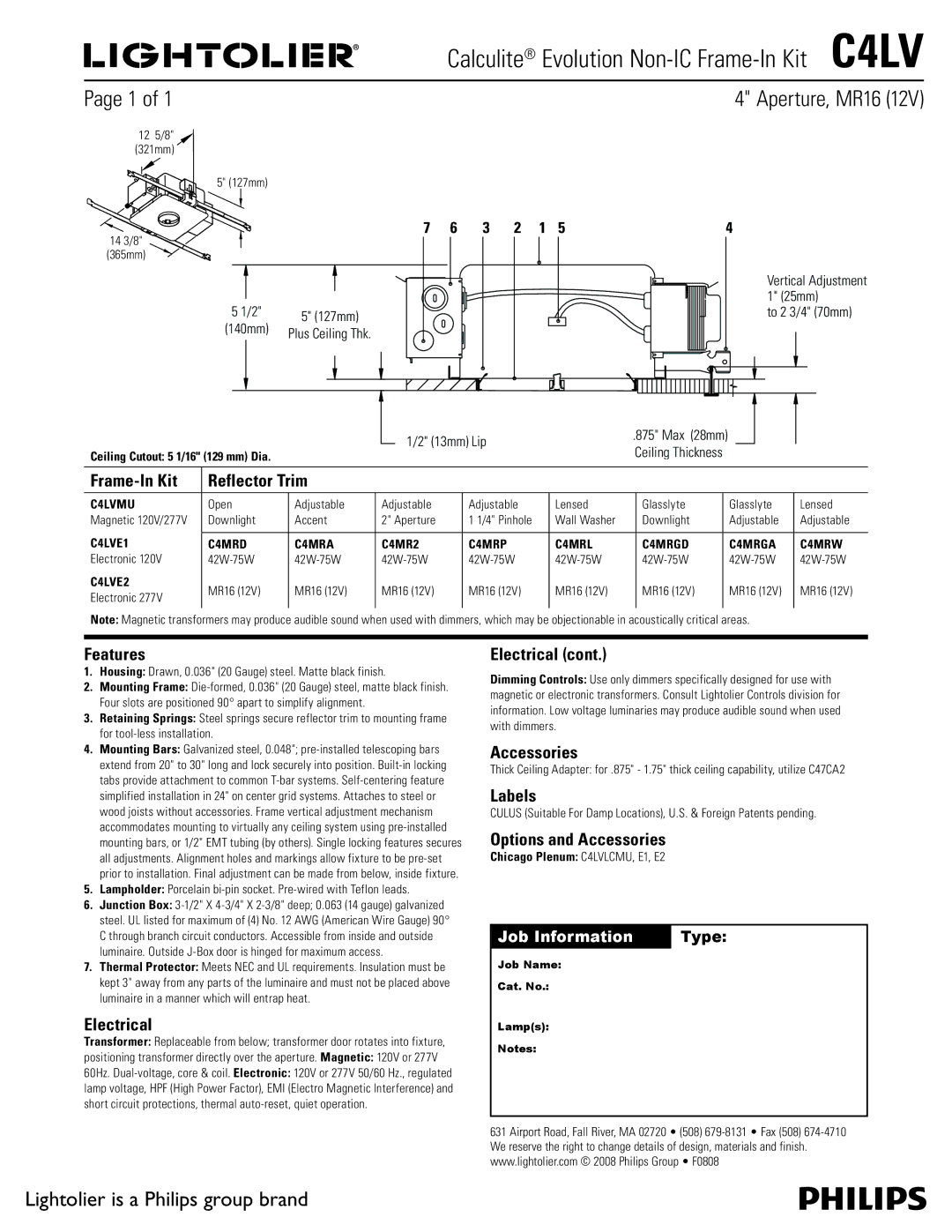

Calculite® Evolution Non-IC Frame-In Kit  C4LV

Page 1 of 1













4" Aperture, MR16 (12V)

12

5/8"















(321mm)

















5" (127mm)















14 3/8"



7

6

3

2

1

5

4

















(365mm)

































Vertical Adjustment



5 1/2"













1" (25mm)



5" (127mm)











to 2 3/4" (70mm)

(140mm)

Plus Ceiling Thk.

























































































































































1/2" (13mm) Lip



.875" Max (28mm)

















Ceiling Cutout: 5 1/16" (129 mm) Dia.











Ceiling Thickness





























































































Frame-In Kit

Reflector Trim











































































C4LVMU

Open

Adjustable



Adjustable

Adjustable

Lensed



Glasslyte



Glasslyte

Lensed

Magnetic 120V/277V

Downlight

Accent



2" Aperture

1 1/4" Pinhole

Wall Washer



Downlight



Adjustable

Adjustable

C4LVE1



































C4MRD

C4MRA



C4MR2

C4MRP

C4MRL



C4MRGD



C4MRGA

C4MRW

Electronic 120V

42W-75W

42W-75W



42W-75W

42W-75W

42W-75W



42W-75W



42W-75W

42W-75W

C4LVE2

MR16 (12V)

MR16 (12V)



MR16 (12V)

MR16 (12V)

MR16 (12V)



MR16 (12V)



MR16 (12V)

MR16 (12V)

Electronic 277V

































































































Note: Magnetic transformers may produce audible sound when used with dimmers, which may be objectionable in acoustically critical areas.

Features

1.Housing: Drawn, 0.036" (20 Gauge) steel. Matte black finish.

2.Mounting Frame: Die-formed, 0.036" (20 Gauge) steel, matte black finish. Four slots are positioned 90° apart to simplify alignment.

3.Retaining Springs: Steel springs secure reflector trim to mounting frame for tool-less installation.

4.Mounting Bars: Galvanized steel, 0.048"; pre-installed telescoping bars extend from 20" to 30" long and lock securely into position. Built-in locking tabs provide attachment to common T-bar systems. Self-centering feature simplified installation in 24" on center grid systems. Attaches to steel or wood joists without accessories. Frame vertical adjustment mechanism accommodates mounting to virtually any ceiling system using pre-installed mounting bars, or 1/2" EMT tubing (by others). Single locking features secures all adjustments. Alignment holes and markings allow fixture to be pre-set prior to installation. Final adjustment can be made from below, inside fixture.

5.Lampholder: Porcelain bi-pin socket. Pre-wired with Teflon leads.

6.Junction Box: 3-1/2" X 4-3/4" X 2-3/8" deep; 0.063 (14 gauge) galvanized steel. UL listed for maximum of (4) No. 12 AWG (American Wire Gauge) 90° C through branch circuit conductors. Accessible from inside and outside luminaire. Outside J-Box door is hinged for maximum access.

7.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from any parts of the luminaire and must not be placed above luminaire in a manner which will entrap heat.

Electrical

Transformer: Replaceable from below; transformer door rotates into fixture,

positioning transformer directly over the aperture. Magnetic: 120V or 277V

60Hz. Dual-voltage, core & coil. Electronic: 120V or 277V 50/60 Hz., regulated lamp voltage, HPF (High Power Factor), EMI (Electro Magnetic Interference) and short circuit protections, thermal auto-reset, quiet operation.

Electrical (cont.)

Dimming Controls: Use only dimmers specifically designed for use with magnetic or electronic transformers. Consult Lightolier Controls division for information. Low voltage luminaries may produce audible sound when used with dimmers.

Accessories

Thick Ceiling Adapter: for .875" - 1.75" thick ceiling capability, utilize C47CA2

Labels

CULUS (Suitable For Damp Locations), U.S. & Foreign Patents pending.

Options and Accessories

Chicago Plenum: C4LVLCMU, E1, E2

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • F0808

Lightolier is a Philips group brand
