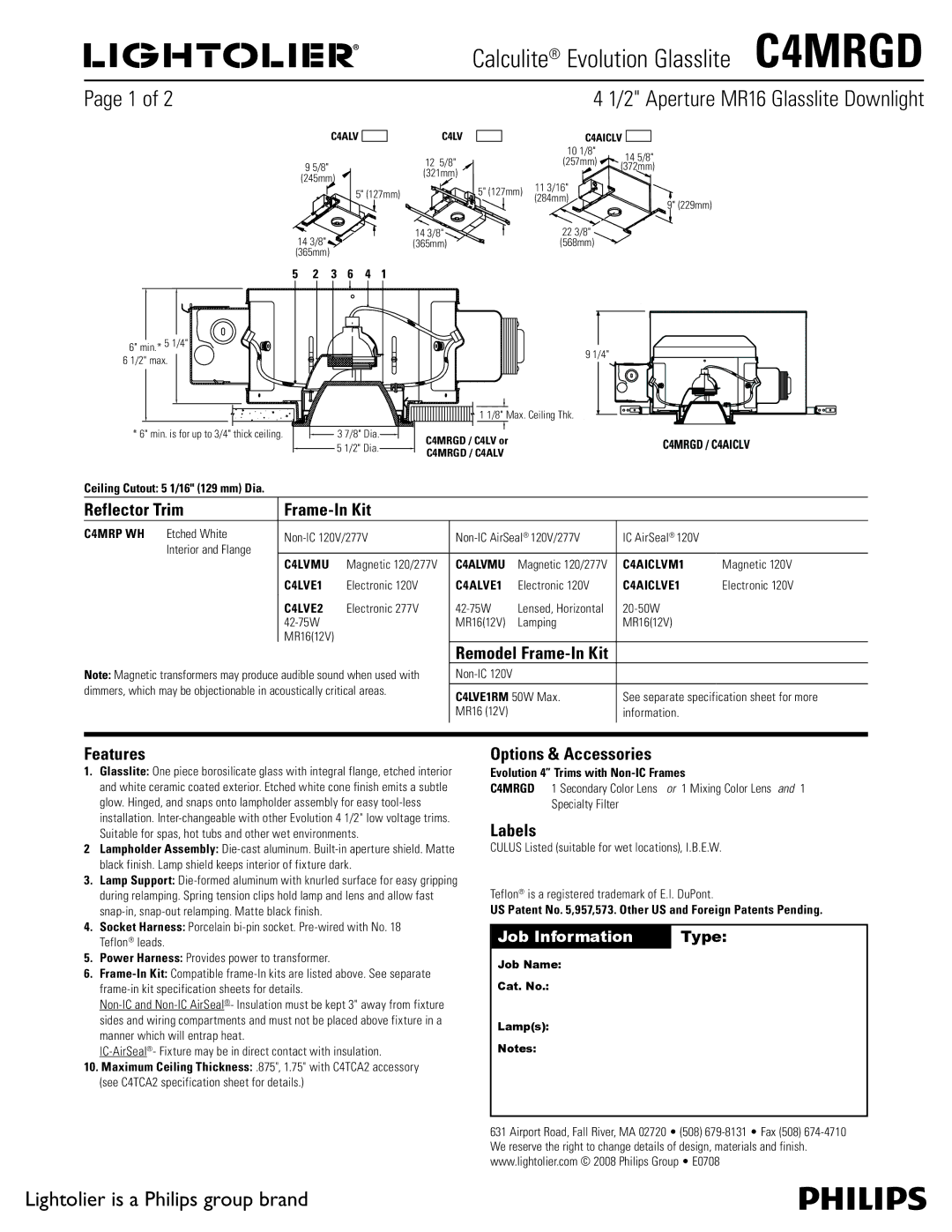

Lightolier C4MRGD specifications 4 1/2 Aperture MR16 Glasslite Downlight, Job Information, Type

			Calculite® Evolution Glasslite  C4MRGD
Page 1 of 2				4 1/2" Aperture MR16 Glasslite Downlight
C4ALV		C4LV		C4AICLV
				10 1/8"	14 5/8"
	12	5/8"		(257mm)
9 5/8"					(372mm)
	(321mm)
(245mm)
				11 3/16"
5" (127mm)			5" (127mm)
				(284mm)		9" (229mm)
14 3/8"	14 3/8"			22 3/8"
	(365mm)			(568mm)
(365mm)

5 2 3 6 4 1

6" min.* 5 1/4"

6 1/2" max.

* 6" min. is for up to 3/4" thick ceiling.	3 7/8" Dia.
	5 1/2" Dia.

1 1/8" Max. Ceiling Thk.

C4MRGD / C4LV or

C4MRGD / C4ALV

9 1/4"

C4MRGD / C4AICLV

Ceiling Cutout: 5 1/16" (129 mm) Dia.

Reflector Trim		Frame-In Kit
C4MRP WH	Etched White	Non-IC 120V/277V		Non-IC AirSeal® 120V/277V		IC AirSeal® 120V
	Interior and Flange
		C4LVMU	Magnetic 120/277V	C4ALVMU	Magnetic 120/277V	C4AICLVM1	Magnetic 120V
		C4LVE1	Electronic 120V	C4ALVE1	Electronic 120V	C4AICLVE1	Electronic 120V
		C4LVE2	Electronic 277V	42-75W	Lensed, Horizontal	20-50W
		42-75W		MR16(12V)	Lamping	MR16(12V)
		MR16(12V)
				Remodel Frame-In Kit
Note: Magnetic transformers may produce audible sound when used with				Non-IC 120V
dimmers, which may be objectionable in acoustically critical areas.				C4LVE1RM 50W Max.		See separate specification sheet for more
				MR16 (12V)		information.

Features

1.Glasslite: One piece borosilicate glass with integral flange, etched interior and white ceramic coated exterior. Etched white cone finish emits a subtle glow. Hinged, and snaps onto lampholder assembly for easy tool-less installation. Inter-changeable with other Evolution 4 1/2" low voltage trims. Suitable for spas, hot tubs and other wet environments.

2Lampholder Assembly: Die-cast aluminum. Built-in aperture shield. Matte black finish. Lamp shield keeps interior of fixture dark.

3.Lamp Support: Die-formed aluminum with knurled surface for easy gripping during relamping. Spring tension clips hold lamp and lens and allow fast snap-in, snap-out relamping. Matte black finish.

4.Socket Harness: Porcelain bi-pin socket. Pre-wired with No. 18

Teflon® leads.

5.Power Harness: Provides power to transformer.

6.Frame-In Kit: Compatible frame-In kits are listed above. See separate frame-in kit specification sheets for details.

Non-IC and Non-IC AirSeal®- Insulation must be kept 3" away from fixture

sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

IC-AirSeal®- Fixture may be in direct contact with insulation.

10.Maximum Ceiling Thickness: .875", 1.75" with C4TCA2 accessory (see C4TCA2 specification sheet for details.)

Options & Accessories

Evolution 4” Trims with Non-IC Frames

C4MRGD 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

Labels

CULUS Listed (suitable for wet locations), I.B.E.W.

Teflon® is a registered trademark of E.I. DuPont.

US Patent No. 5,957,573. Other US and Foreign Patents Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
