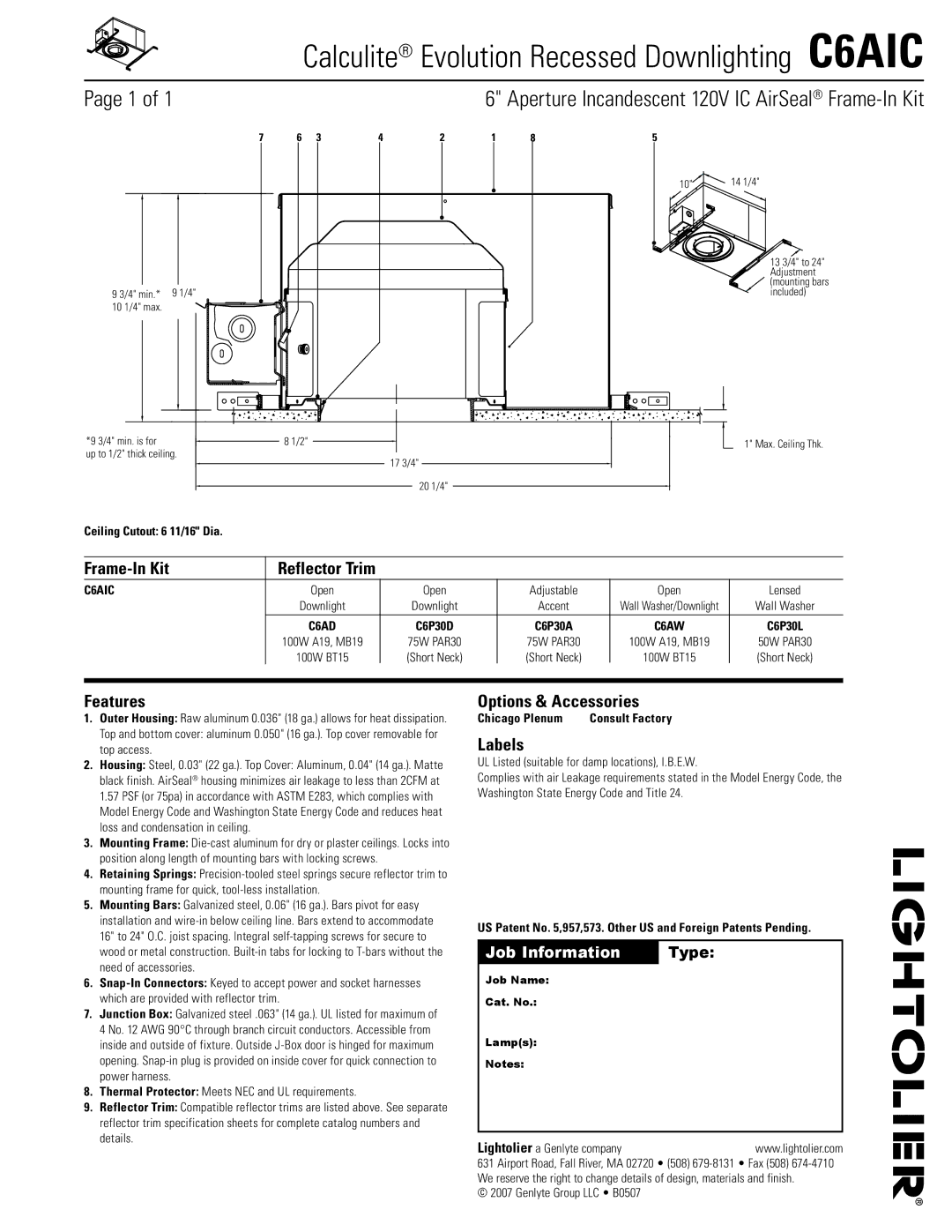

Calculite® Evolution Recessed Downlighting  C6AIC

Page of 1

7

9 3/4" min.* 9 1/4"

10 1/4" max.

6" Aperture Incandescent 120V IC AirSeal® Frame-In Kit

6

3

4

2

1

8

5

10"

14 1/4"

13 3/4" to 24" Adjustment (mounting bars included)

*9 3/4" min. is for

up to 1/2" thick ceiling.

8 1/2"

17 3/4"

20 1/4"

1" Max. Ceiling Thk.

Ceiling Cutout: 6 11/16" Dia.

Frame-In Kit

Reflector Trim









C6AIC

Open

Open

Adjustable

Open

Lensed



Downlight

Downlight

Accent

Wall Washer/Downlight

Wall Washer















C6AD

C6P30D

C6P30A

C6AW

C6P30L



100W A19, MB19

75W PAR30

75W PAR30

100W A19, MB19

50W PAR30



100W BT15

(Short Neck)

(Short Neck)

100W BT15

(Short Neck)













Features

1.Outer Housing: Raw aluminum 0.036" (18 ga.) allows for heat dissipation.

Top and bottom cover: aluminum 0.050" (16 ga.). Top cover removable for top access.

2.Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte black finish. AirSeal® housing minimizes air leakage to less than 2CFM at 1.57 PSF (or 75pa) in accordance with ASTM E283, which complies with Model Energy Code and Washington State Energy Code and reduces heat loss and condensation in ceiling.

3.Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into position along length of mounting bars with locking screws.

4.Retaining Springs: Precision-tooled steel springs secure reflector trim to mounting frame for quick, tool-less installation.

5.Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy installation and wire-in below ceiling line. Bars extend to accommodate 16" to 24" O.C. joist spacing. Integral self-tapping screws for secure to wood or metal construction. Built-in tabs for locking to T-bars without the need of accessories.

6.Snap-In Connectors: Keyed to accept power and socket harnesses which are provided with reflector trim.

7.Junction Box: Galvanized steel .063" (14 ga.). UL listed for maximum of 4 No. 12 AWG 90°C through branch circuit conductors. Accessible from inside and outside of fixture. Outside J-Box door is hinged for maximum opening. Snap-in plug is provided on inside cover for quick connection to power harness.

8.Thermal Protector: Meets NEC and UL requirements.

9.Reflector Trim: Compatible reflector trims are listed above. See separate reflector trim specification sheets for complete catalog numbers and details.

Options & Accessories

Chicago Plenum

Consult Factory

Labels

UL Listed (suitable for damp locations), I.B.E.W.

Complies with air Leakage requirements stated in the Model Energy Code, the Washington State Energy Code and Title 24.

US Patent No. 5,957,573. Other US and Foreign Patents Pending.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • B0507

Page 1
Image 1
Lightolier specifications Calculite Evolution Recessed Downlighting C6AIC

C6AIC specifications
