Calculite® Evolution Recessed Downlighting C6ALV

Page 1 of 1





6" Aperture PAR36 Low Voltage Non-IC AirSeal® Frame-In Kit

7

2

3

1

6

8

5

4

6

3/4" MIN.* 6"

7

1/4" MAX.



























* 6 3/4" min. is for

up to 3/4" thick ceiling. 7 3/4"

15 3/4"

9 1/2" Dia.

13 3/4" to 24" Adjustment (mounting bars included)

1 1/4" Max. Ceiling Thk.

Ceiling Cutout: 6 11/16" Dia.

Frame-In Kit

C6ALV

Reflector Trim

Adjustable Accent

C6P36A

35W - 75W PAR36 (12V)

25W PAR36 (5.5V)

35W - 75W AR111 (12V)

Features

1.Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte black finish. AirSeal® housing minimizes air leakage to less than 2CFM at 1.57 PSF (or 75pa).

2.Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into position along length of mounting bars with locking screws.

3.Retaining Springs: Precision-tooled steel springs secure reflector trim to mounting frame for quick, tool-less installation.

4.Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy instal- lation and wire-in below ceiling line. Bars extend to accommodate 16" to 24" O.C. joist spacing. Bars can accommodate 12" O.C. joist spacing after a slight field modification (see instruction sheet). Integral self-tapping screws for securing to wood or metal construction. Built-in tabs for locking to T-bars without the need of accessories.

5.Transformer: Magnetic, 120V/277V dual tap primary, nominal 12V and 5.5V secondary.

6.Snap-In Connectors: Keyed to accept power and socket harnesses which are provided with reflector trim.

7.Junction Box: Galvanized steel .063" (14 ga.). UL listed for maximum of 8 No. 12 AWG 90°C through branch circuit conductors. Accessible from inside and outside of fixture. Outside J-Box door is hinged for maximum opening. Snap-in plug is provided on inside cover for quick connection to power har- ness.

8.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

9.Reflector Trim: Compatible reflector trims are listed above. See separate reflector trim specification sheets for complete catalog numbers and details.

Options & Accessories

Chicago Plenum

Consult Factory

Labels

UL Listed (suitable for damp locations), I.B.E.W.

Air leakage is less than 2cfm at 75pa, tested in accordance with ASTM E-283.

US Patent No. 5,957,573. Other US and Foreign Patents Pending.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Page 1
Image 1

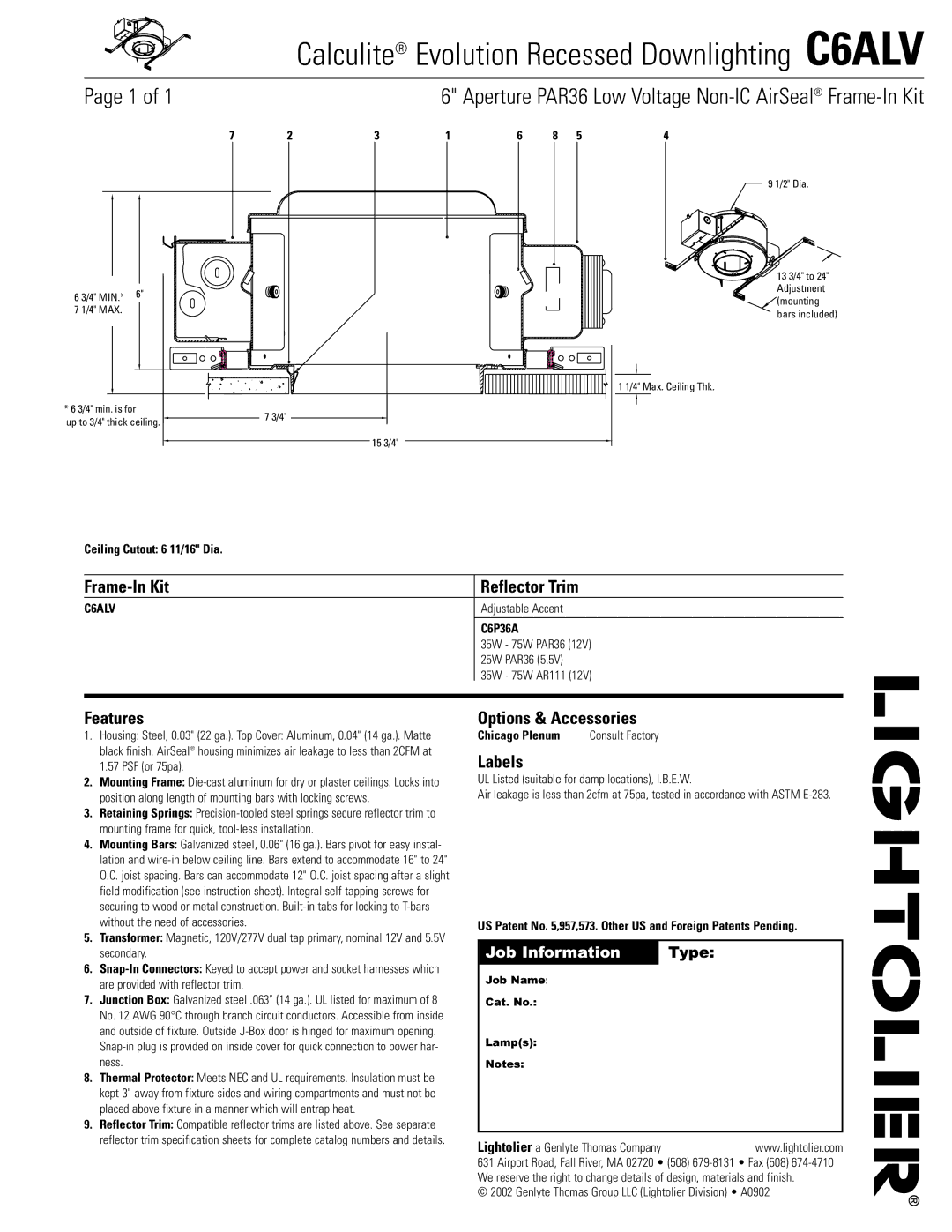

Lightolier instruction sheet Calculite Evolution Recessed Downlighting C6ALV
