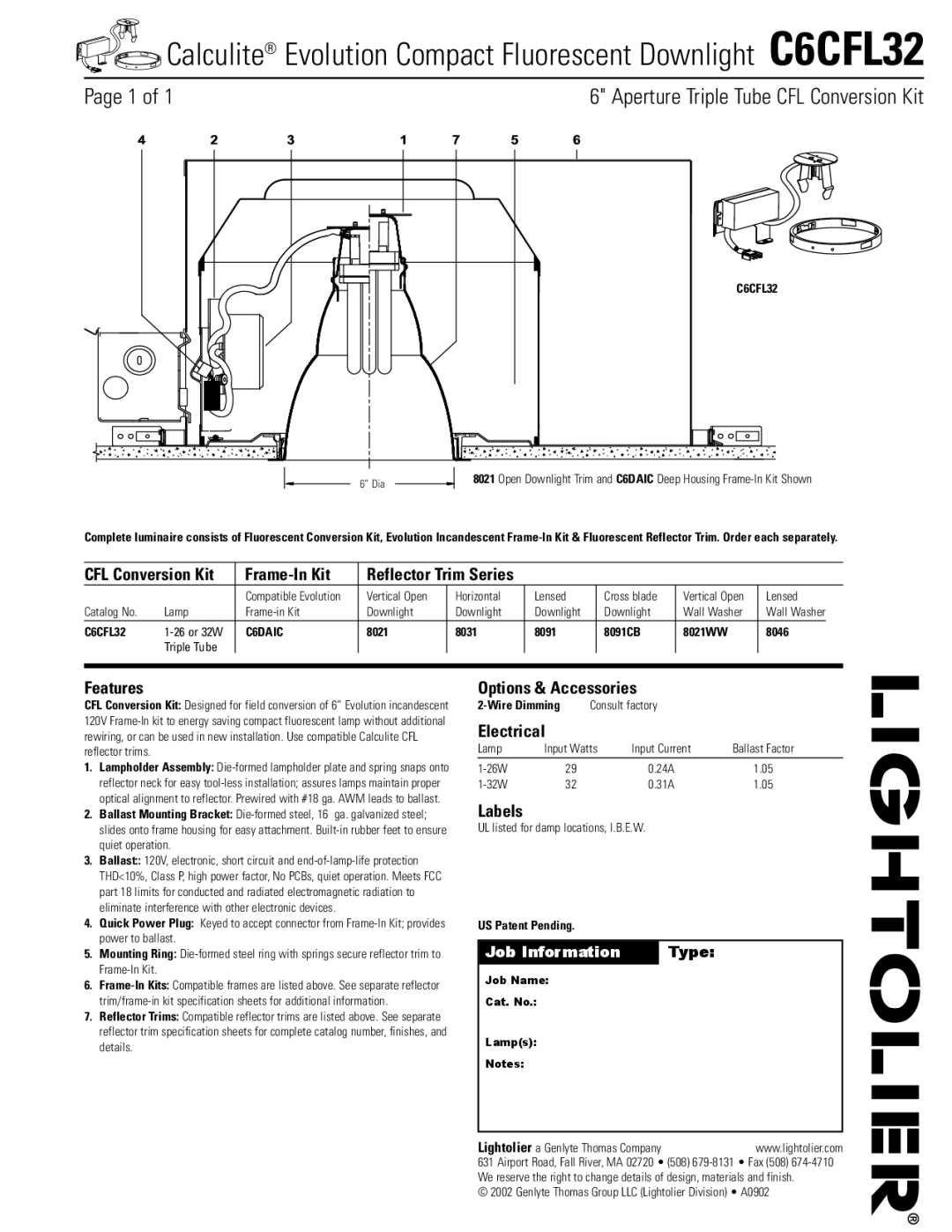

Calculite® Evolution Compact Fluorescent Downlight C6CFL32

Page 1 of 1 6" Aperture Triple Tube CFL Conversion Kit

C6CFL32

6” Dia 8021 Open Downlight Trim and C6DAIC Deep Housing Frame-In Kit Shown

Complete luminaire consists of Fluorescent Conversion Kit, Evolution Incandescent Frame-In Kit & Fluorescent Reflector Trim. Order each separately.

CFL Conversion Kit		Frame-In Kit	Reflector Trim Series
		Compatible Evolution	Vertical Open	Horizontal	Lensed	Cross blade	Vertical Open	Lensed
Catalog No.	Lamp	Frame-in Kit	Downlight	Downlight	Downlight	Downlight	Wall Washer	Wall Washer
C6CFL32	1-26 or 32W	C6DAIC	8021	8031	8091	8091CB	8021WW	8046
	Triple Tube

Features

CFL Conversion Kit: Designed for field conversion of 6” Evolution incandescent 120V Frame-In kit to energy saving compact fluorescent lamp without additional rewiring, or can be used in new installation. Use compatible Calculite CFL reflector trims.

1.Lampholder Assembly: Die-formed lampholder plate and spring snaps onto reflector neck for easy tool-less installation; assures lamps maintain proper optical alignment to reflector. Prewired with #18 ga. AWM leads to ballast.

2.Ballast Mounting Bracket: Die-formed steel, 16 ga. galvanized steel; slides onto frame housing for easy attachment. Built-in rubber feet to ensure quiet operation.

3.Ballast:: 120V, electronic, short circuit and end-of-lamp-life protection THD<10%, Class P, high power factor, No PCBs, quiet operation. Meets FCC part 18 limits for conducted and radiated electromagnetic radiation to eliminate interference with other electronic devices.

4.Quick Power Plug: Keyed to accept connector from Frame-In Kit; provides power to ballast.

5.Mounting Ring: Die-formed steel ring with springs secure reflector trim to Frame-In Kit.

6.Frame-In Kits: Compatible frames are listed above. See separate reflector trim/frame-in kit specification sheets for additional information.

7.Reflector Trims: Compatible reflector trims are listed above. See separate reflector trim specification sheets for complete catalog number, finishes, and details.

Options & Accessories

2-Wire Dimming Consult factory

Electrical

Lamp	Input Watts	Input Current	Ballast Factor
1-26W	29	0.24A	1.05
1-32W	32	0.31A	1.05

Labels

UL listed for damp locations, I.B.E.W.

US Patent Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
