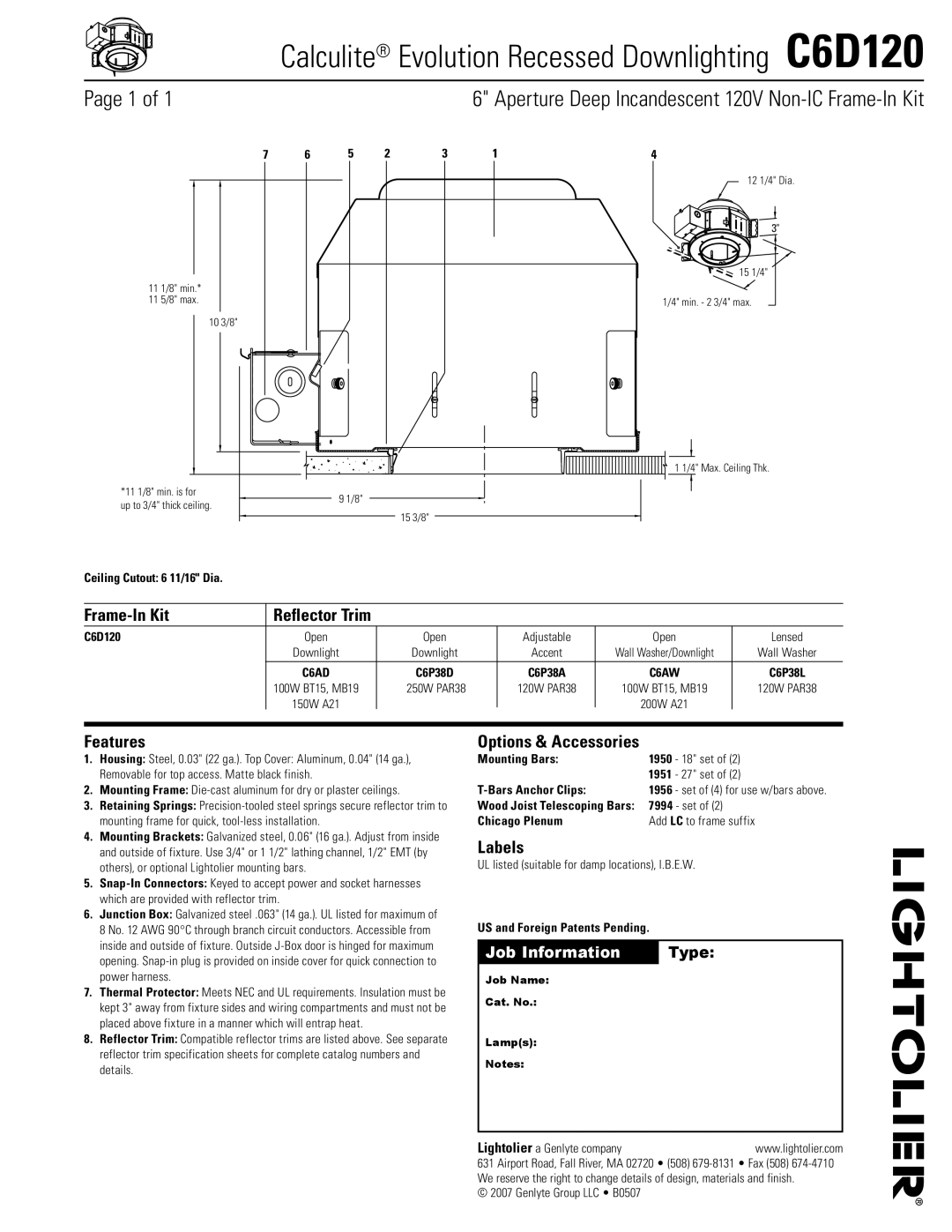

Calculite® Evolution Recessed Downlighting  C6D120

Page of 1

7 6

11 1/8" min.*

11 5/8" max.

10 3/8"

6" Aperture Deep Incandescent 120V Non-IC Frame-In Kit

5 2 3 1 4

12 1/4" Dia.

3"

15 1/4"

1/4" min. - 2 3/4" max.

*11 1/8" min. is for

up to 3/4" thick ceiling.

1 1/4" Max. Ceiling Thk.

9 1/8"

15 3/8"

Ceiling Cutout: 6 11/16" Dia.

Frame-In Kit	Reflector Trim
C6D120	Open	Open	Adjustable	Open	Lensed
	Downlight	Downlight	Accent	Wall Washer/Downlight	Wall Washer
	C6AD	C6P38D	C6P38A	C6AW	C6P38L
	100W BT15, MB19	250W PAR38	120W PAR38	100W BT15, MB19	120W PAR38
	150W A21			200W A21

Features

1.Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.), Removable for top access. Matte black finish.

2.Mounting Frame: Die-cast aluminum for dry or plaster ceilings.

3.Retaining Springs: Precision-tooled steel springs secure reflector trim to mounting frame for quick, tool-less installation.

4.Mounting Brackets: Galvanized steel, 0.06" (16 ga.). Adjust from inside and outside of fixture. Use 3/4" or 1 1/2" lathing channel, 1/2" EMT (by others), or optional Lightolier mounting bars.

5.Snap-In Connectors: Keyed to accept power and socket harnesses which are provided with reflector trim.

6.Junction Box: Galvanized steel .063" (14 ga.). UL listed for maximum of 8 No. 12 AWG 90°C through branch circuit conductors. Accessible from inside and outside of fixture. Outside J-Box door is hinged for maximum opening. Snap-in plug is provided on inside cover for quick connection to power harness.

7.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

8.Reflector Trim: Compatible reflector trims are listed above. See separate reflector trim specification sheets for complete catalog numbers and details.

Options & Accessories

Mounting Bars:	1950	- 18" set of (2)
	1951 - 27" set of (2)
T-Bars Anchor Clips:	1956	- set of (4) for use w/bars above.
Wood Joist Telescoping Bars:	7994 - set of (2)
Chicago Plenum	Add LC to frame suffix

Labels

UL listed (suitable for damp locations), I.B.E.W.

US and Foreign Patents Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
