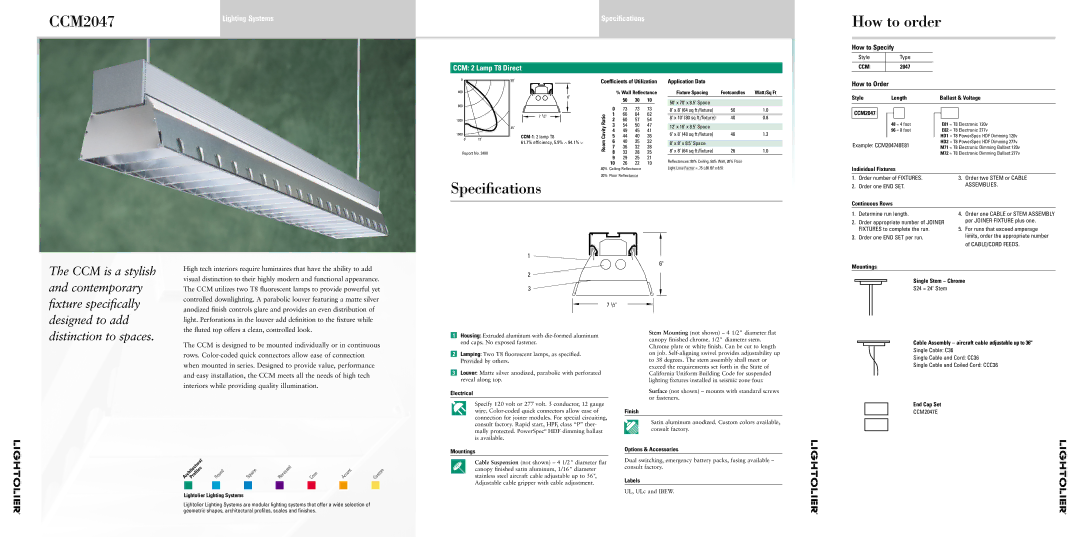

Lightolier CCM2047E brochure How to Specify, How to Order

CCM2047 Lighting Systems

Specifications

CCM: 2 Lamp T8 Direct

0		90˚		Coefficients of Utilization						Application Data
400						% Wall Reflectance				Fixture Spacing	Footcandles	Watt /Sq Ft
		6"
							50	30	10
800										50’ x 70’ x 8.5’ Space
					0	73		73	73	8’ x 8’ (64 sq ft /fixture)	50	1.0
			7 1/2"	Ratio	1	66		64	62
										8’ x 10’ (80 sq ft /fixture)	40	0.8
1200					2	60		57	54
		45˚		Cavity	3	54		50	47	12’ x 16’ x 8.5’ Space
		CCM-1: 2 lamp T8			5	44		40	36	6’ x 8’ (48 sq ft /fixture)	46	1.3
1600					4	49		45	41
0˚	15˚	61.7% efficiency, 5.9% ∧ 94.1% ∨		Room	6	40		35	32
										8’ x 8’ x 8.5’ Space
					7	36		32	28	8’ x 8’ (64 sq ft /fixture)	26	1.0
Report No. 2480					8	33		28	25
					9	29		25	21	Reflectances: 80% Ceiling, 50% Wall, 20% Floor
					10	26		22	19
				80% Ceiling Reflectance						Light Loss Factor = .75 (.88 BF x 8.5)

20% Floor Reflectance

Specifications

1

How to order

How to Specify

Style	Type
CCM	2047

How to Order

Style		Length	Ballast & Voltage
CCM2047
		48 = 4 foot		E81	= T8	Electronic 120v
		96 = 8 foot		E82	= T8	Electronic 277v
			HD1		= T8 PowerSpec HDF Dimming 120v
Example: CCM204748E81			HD2		= T8 PowerSpec HDF Dimming 277v
			M71		= T8	Electronic Dimming Ballast 120v
			M72		= T8	Electronic Dimming Ballast 277v
Individual Fixtures
1.	Order number of FIXTURES.					3. Order two STEM or CABLE
2.	Order one END SET.					ASSEMBLIES.
Continuous Rows
1.	Determine run length.					4. Order one CABLE or STEM ASSEMBLY
2.	Order appropriate number of JOINER					per JOINER FIXTURE plus one.
	FIXTURES to complete the run.					5. For runs that exceed amperage
3.	Order one END SET per run.					limits, order the appropriate number
						of CABLE/CORD FEEDS.

The CCM is a stylish and contemporary fixture specifically designed to add distinction to spaces.

High tech interiors require luminaires that have the ability to add visual distinction to their highly modern and functional appearance. The CCM utilizes two T8 fluorescent lamps to provide powerful yet controlled downlighting. A parabolic louver featuring a matte silver anodized finish controls glare and provides an even distribution of light. Perforations in the louver add definition to the fixture while the fluted top offers a clean, controlled look.

The CCM is designed to be mounted individually or in continuous rows. Color-coded quick connectors allow ease of connection when mounted in series. Designed to provide value, performance

LS6

and easy installation, the CCM meets all the needs of high tech interiors while providing quality illumination.

						6"
	2
	3	7 1/2"
■1	Housing: Extruded aluminum with die-formed aluminum						Stem Mounting (not shown) – 4 1/2" diameter flat
							canopy finished chrome. 1/2" diameter stem.
	end caps. No exposed fastener.
							Chrome plate or white finish. Can be cut to length
■2	Lamping: Two T8 fluorescent lamps, as specified.						on job. Self-aligning swivel provides adjustability up
	Provided by others.						to 38 degrees. The stem assembly shall meet or
■3	Louver: Matte silver anodized, parabolic with perforated						exceed the requirements set forth in the State of
							California Uniform Building Code for suspended
	reveal along top.						lighting fixtures installed in seismic zone four.
Electrical							Surface (not shown) – mounts with standard screws
							or fasteners.
		Specify 120 volt or 277 volt. 3 conductor, 12 gauge
		wire. Color-coded quick connectors allow ease of				Finish
		connection for joiner modules. For special circuiting,
							Satin aluminum anodized. Custom colors available,
		consult factory. Rapid start, HPF, class “P” ther-
							consult factory.
		mally protected. PowerSpec® HDF dimming ballast

Mountings

Single Stem – Chrome

S24 = 24" Stem

Cable Assembly – aircraft cable adjustable up to 36"

Single Cable: C36

Single Cable and Cord: CC36

Single Cable and Coiled Cord: CCC36

End Cap Set

CCM2047E

ArchitecturalProfiles Round Square Recessed Cove Accent Custom

Lightolier Lighting Systems

Lightolier Lighting Systems are modular lighting systems that offer a wide selection of geometric shapes, architectural profiles, scales and finishes.

	is available.
Mountings		Options & Accessories
		Dual switching, emergency battery packs, fusing available –
	Cable Suspension (not shown) – 4 1/2" diameter flat
		consult factory.
	canopy finished satin aluminum, 1/16" diameter
	stainless steel aircraft cable adjustable up to 36",	Labels
	Adjustable cable gripper with cable adjustment.
		UL, ULc and IBEW.
