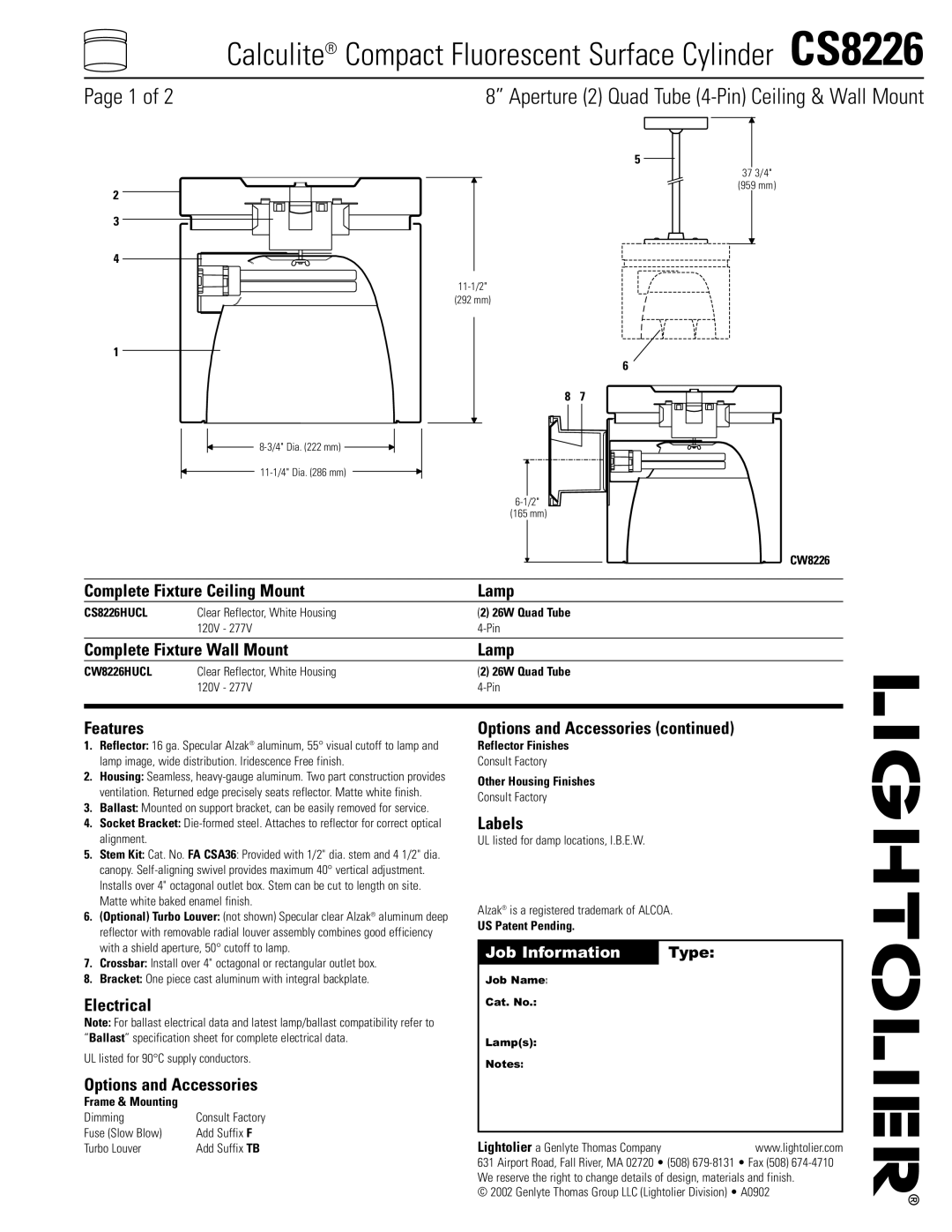

Calculite® Compact Fluorescent Surface Cylinder CS8226

Page 1 of 2

8” Aperture (2) Quad Tube (4-Pin) Ceiling & Wall Mount

5

2

3

4

11-1/2"

(292 mm)

1

6

8 7

8-3/4" Dia. (222 mm)

11-1/4" Dia. (286 mm)

6-1/2"

(165 mm)

373/4" (959 mm)

CW8226

Complete Fixture Ceiling Mount

Lamp

CS8226HUCL

Clear Reflector, White Housing

(2) 26W Quad Tube



120V - 277V

4-Pin





Complete Fixture Wall Mount

Lamp

CW8226HUCL

Clear Reflector, White Housing

(2) 26W Quad Tube



120V - 277V

4-Pin







Features

1.Reflector: 16 ga. Specular Alzak® aluminum, 55° visual cutoff to lamp and lamp image, wide distribution. Iridescence Free finish.

2.Housing: Seamless, heavy-gauge aluminum. Two part construction provides ventilation. Returned edge precisely seats reflector. Matte white finish.

3.Ballast: Mounted on support bracket, can be easily removed for service.

4.Socket Bracket: Die-formed steel. Attaches to reflector for correct optical alignment.

5.Stem Kit: Cat. No. FA CSA36: Provided with 1/2" dia. stem and 4 1/2" dia. canopy. Self-aligning swivel provides maximum 40° vertical adjustment. Installs over 4" octagonal outlet box. Stem can be cut to length on site. Matte white baked enamel finish.

6.(Optional) Turbo Louver: (not shown) Specular clear Alzak® aluminum deep reflector with removable radial louver assembly combines good efficiency with a shield aperture, 50° cutoff to lamp.

7.Crossbar: Install over 4" octagonal or rectangular outlet box.

8.Bracket: One piece cast aluminum with integral backplate.

Electrical

Note: For ballast electrical data and latest lamp/ballast compatibility refer to “Ballast” specification sheet for complete electrical data.

UL listed for 90°C supply conductors.

Options and Accessories

Frame & Mounting



Dimming

Consult Factory

Fuse (Slow Blow)

Add Suffix F

Turbo Louver

Add Suffix TB

Options and Accessories (continued)

Reflector Finishes

Consult Factory

Other Housing Finishes

Consult Factory

Labels

UL listed for damp locations, I.B.E.W.

Alzak® is a registered trademark of ALCOA.

US Patent Pending.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
