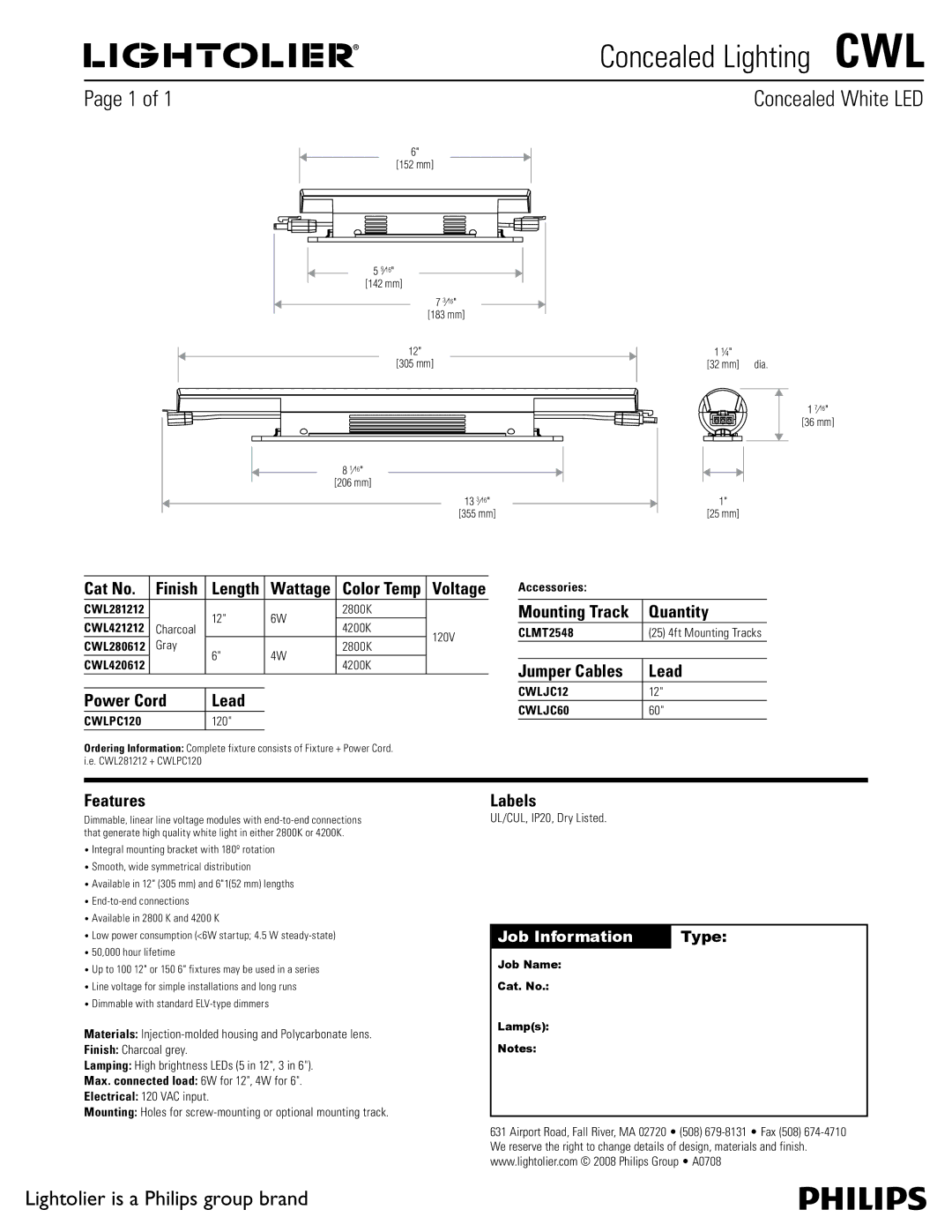

	Concealed Lighting  CWL
Page 1 of 1	Concealed White LED

6"

[152 mm]

59⁄16"

[142 mm]

73⁄16"

[183 mm]

12"

[305 mm]

81⁄16"

[206 mm]

13 3⁄16"

[355 mm]

1 ¼"

[32 mm] dia.

1 7⁄16"

[36 mm]

1"

[25 mm]

Cat No.	Finish	Length	Wattage	Color Temp	Voltage
CWL281212		12"	6W	2800K
CWL421212	Charcoal			4200K	120V
CWL280612	Gray	6"	4W	2800K
CWL420612				4200K

Power Cord	Lead
CWLPC120	120"

Accessories:

Mounting Track	Quantity
CLMT2548	(25) 4ft Mounting Tracks
Jumper Cables	Lead
CWLJC12	12"
CWLJC60	60"

Ordering Information: Complete fixture consists of Fixture + Power Cord. i.e. CWL281212 + CWLPC120

Features

Dimmable, linear line voltage modules with end-to-end connections that generate high quality white light in either 2800K or 4200K.

•Integral mounting bracket with 180º rotation

•Smooth, wide symmetrical distribution

•Available in 12" (305 mm) and 6"1(52 mm) lengths

•End-to-end connections

•Available in 2800 K and 4200 K

•Low power consumption (<6W startup; 4.5 W steady-state)

•50,000 hour lifetime

•Up to 100 12" or 150 6" fixtures may be used in a series

•Line voltage for simple installations and long runs

•Dimmable with standard ELV-type dimmers

Materials: Injection-molded housing and Polycarbonate lens.

Finish: Charcoal grey.

Lamping: High brightness LEDs (5 in 12", 3 in 6").

Max. connected load: 6W for 12", 4W for 6".

Electrical: 120 VAC input.

Mounting: Holes for screw-mounting or optional mounting track.

Lightolier is a Philips group brand

Labels

UL/CUL, IP20, Dry Listed.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • A0708
