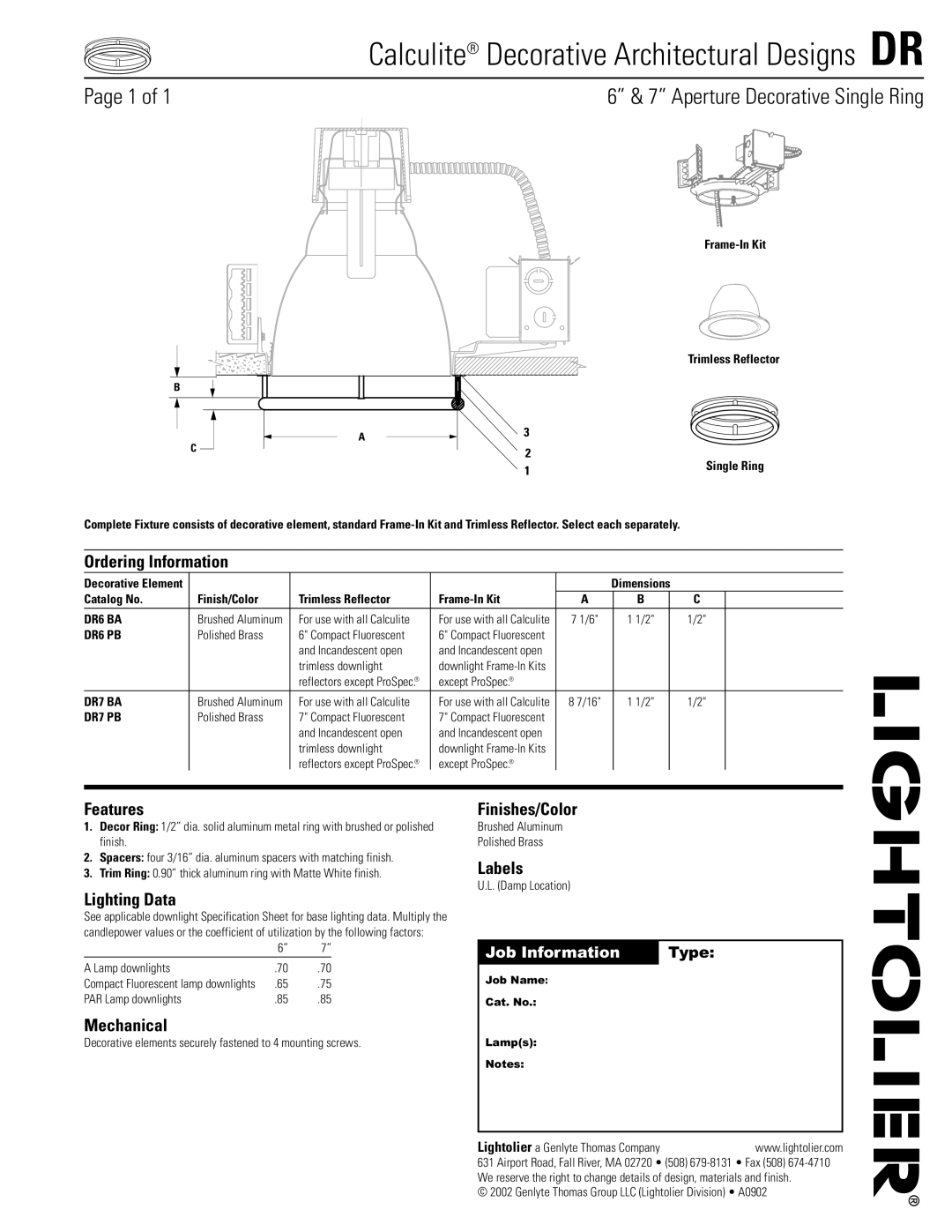

| Calculite® Decorative Architectural Designs DR |
Page 1 of 1 | 6” & 7” Aperture Decorative Single Ring |
B
C
A
Trimless Reflector
3 |
| |
2 | Single Ring | |
1 | ||
|
Complete Fixture consists of decorative element, standard
Ordering Information
Decorative Element |
|
|
|
| Dimensions |
|
| ||
Catalog No. | Finish/Color | Trimless Reflector | A |
| B |
| C |
| |
DR6 BA | Brushed Aluminum | For use with all Calculite | For use with all Calculite | 7 1/6" |
| 1 1/2" |
| 1/2" |
|
DR6 PB | Polished Brass | 6" Compact Fluorescent | 6" Compact Fluorescent |
|
|
|
|
|
|
|
| and Incandescent open | and Incandescent open |
|
|
|
|
|
|
|
| trimless downlight | downlight |
|
|
|
|
|
|
|
| reflectors except ProSpec.® | except ProSpec.® |
|
|
|
|
|
|
DR7 BA | Brushed Aluminum | For use with all Calculite | For use with all Calculite | 8 7/16" |
| 1 1/2" |
| 1/2" |
|
DR7 PB | Polished Brass | 7" Compact Fluorescent | 7" Compact Fluorescent |
|
|
|
|
|
|
|
| and Incandescent open | and Incandescent open |
|
|
|
|
|
|
|
| trimless downlight | downlight |
|
|
|
|
|
|
|
| reflectors except ProSpec.® | except ProSpec.® |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
1.Decor Ring: 1/2” dia. solid aluminum metal ring with brushed or polished finish.
2.Spacers: four 3/16” dia. aluminum spacers with matching finish.
3.Trim Ring: 0.90” thick aluminum ring with Matte White finish.
Lighting Data
See applicable downlight Specification Sheet for base lighting data. Multiply the candlepower values or the coefficient of utilization by the following factors:
6” 7”
A Lamp downlights | .70 | .70 |
Compact Fluorescent lamp downlights | .65 | .75 |
PAR Lamp downlights | .85 | .85 |
Mechanical
Decorative elements securely fastened to 4 mounting screws.
Finishes/Color
Brushed Aluminum
Polished Brass
Labels
U.L. (Damp Location)
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508)
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
