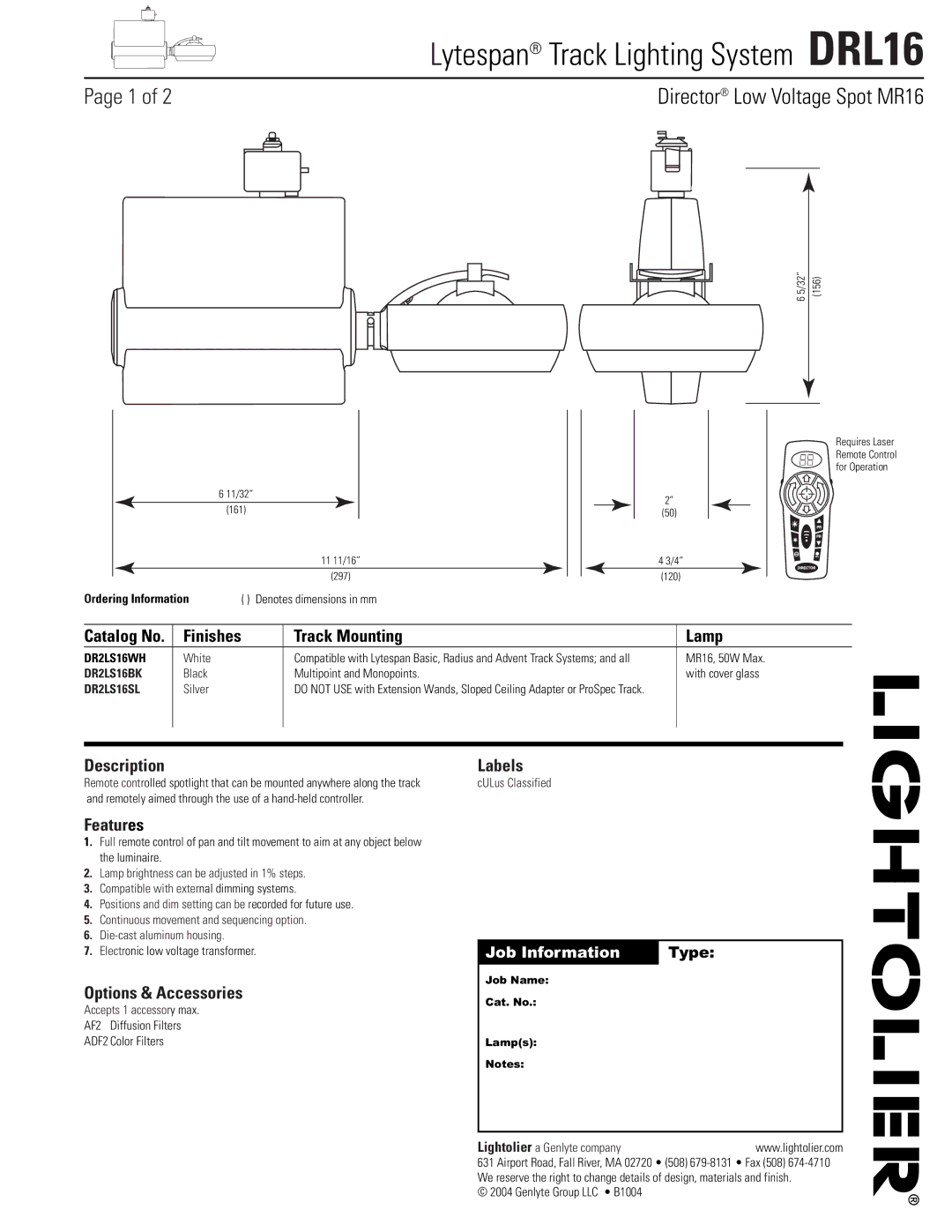

Lightolier DRL16 dimensions Page 1 of, Director, Finishes, Track Mounting, Lamp, Description

	Lytespan® Track Lighting System DRL16
	8292WE
Page 1 of 2	Director	0400
		Low Voltage Spot MR16
	®

611/32”

(161)

11 11/16”

(297)

Ordering Information ( ) Denotes dimensions in mm

2”

(50)

43/4”

(120)

5/32”	(156)
6

Requires Laser Remote Control for Operation

Catalog No.	Finishes	Track Mounting	Lamp
DR2LS16WH	White	Compatible with Lytespan Basic, Radius and Advent Track Systems; and all	MR16, 50W Max.
DR2LS16BK	Black	Multipoint and Monopoints.	with cover glass
DR2LS16SL	Silver	DO NOT USE with Extension Wands, Sloped Ceiling Adapter or ProSpec Track.

Description

Remote controlled spotlight that can be mounted anywhere along the track and remotely aimed through the use of a hand-held controller.

Features

1.Full remote control of pan and tilt movement to aim at any object below the luminaire.

2.Lamp brightness can be adjusted in 1% steps.

3.Compatible with external dimming systems.

4.Positions and dim setting can be recorded for future use.

5.Continuous movement and sequencing option.

6.Die-cast aluminum housing.

7.Electronic low voltage transformer.

Options & Accessories

Accepts 1 accessory max.

AF2 Diffusion Filters

ADF2 Color Filters

Labels

cULus Classified

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2004 Genlyte Group LLC • B1004
