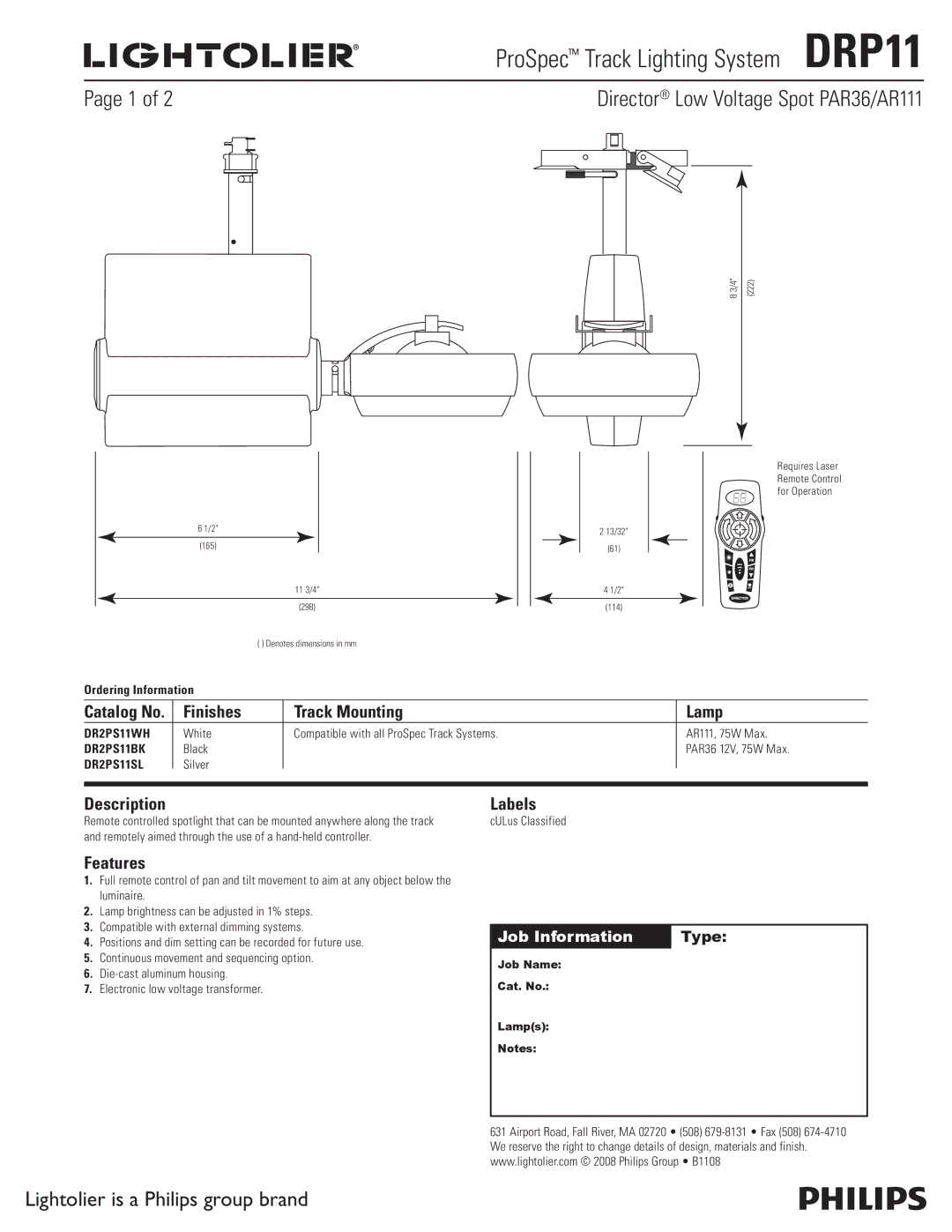

ProSpecTrack Lighting System  DRP11























































































































































































































Page 1 of 2



















































Director® Low Voltage Spot PAR36/AR111





























































































































































































































































































































































































































































8 3/4"

(222)

Requires Laser Remote Control for Operation

6 1/2"

2 13/32"











(165)













(61)











11 3/4"

4 1/2"



















(298)

(114)





( ) Denotes dimensions in mm

Ordering Information

Catalog No.



Finishes

Track Mounting

Lamp

DR2PS11WH



White

Compatible with all ProSpec Track Systems.

AR111, 75W Max.

DR2PS11BK



Black



PAR36 12V, 75W Max.

DR2PS11SL



Silver











Description

Remote controlled spotlight that can be mounted anywhere along the track and remotely aimed through the use of a hand-held controller.

Features

1.Full remote control of pan and tilt movement to aim at any object below the luminaire.

2.Lamp brightness can be adjusted in 1% steps.

3.Compatible with external dimming systems.

4.Positions and dim setting can be recorded for future use.

5.Continuous movement and sequencing option.

6.Die-cast aluminum housing.

7.Electronic low voltage transformer.

Labels

cULus Classified

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • B1108

Lightolier is a Philips group brand

Page 1
Image 1
Lightolier dimensions ProSpec Track Lighting System DRP11, Lightolier is a Philips group brand

DRP11 specifications

The Lightolier DRP11 is a cutting-edge recessed IP65-rated downlight designed to enhance both residential and commercial spaces with its superior lighting capabilities. One of the main features of the DRP11 is its versatility in application. It seamlessly integrates into various environments, offering ample illumination while maintaining an aesthetically pleasing design. Whether installed in offices, retail spaces, or homes, the DRP11 delivers performance and elegance.

The DRP11 utilizes advanced LED technology, providing energy efficiency that significantly reduces power consumption compared to traditional lighting solutions. With a lumen output of up to 800 lumens, it ensures that spaces remain well-lit while contributing to lower electricity bills. Additionally, the product boasts a long lifespan of over 50,000 hours, which means less frequent replacements and reduced maintenance costs for users.

One of the standout characteristics of the DRP11 is its adjustable color temperature options. Users can select from a range of color temperatures, typically from 2700K to 5000K, allowing for customization to suit different moods or settings. This feature not only enhances the functionality of the light but also contributes to creating the right ambiance in any space.

The Lightolier DRP11 is also known for its ease of installation. It comes with a recessed mount that simplifies the process, making it an ideal choice for both new construction and retrofit applications. The spring clips ensure a secure fit in various ceiling types, ensuring that the downlight remains stable and efficient.

Furthermore, the DRP11 is designed with glare reduction in mind. Its thoughtfully engineered reflector minimizes harsh brightness, providing a soft illumination that enhances visibility without causing discomfort to the eyes. This feature is particularly useful in environments where prolonged exposure to artificial lighting is common.

In terms of durability, the IP65 rating signifies that the DRP11 is resistant to dust and water, making it suitable for use in areas where moisture may be a concern, such as bathrooms or kitchens. This robustness further extends the range of applications for which the DRP11 can be utilized.

In summary, the Lightolier DRP11 combines versatility, energy efficiency, and customizable lighting options, making it an ideal choice for those seeking both functionality and elegance in their lighting solutions. Its advanced technologies and thoughtful design cater to modern lighting needs, ensuring that it remains relevant in an evolving market.
