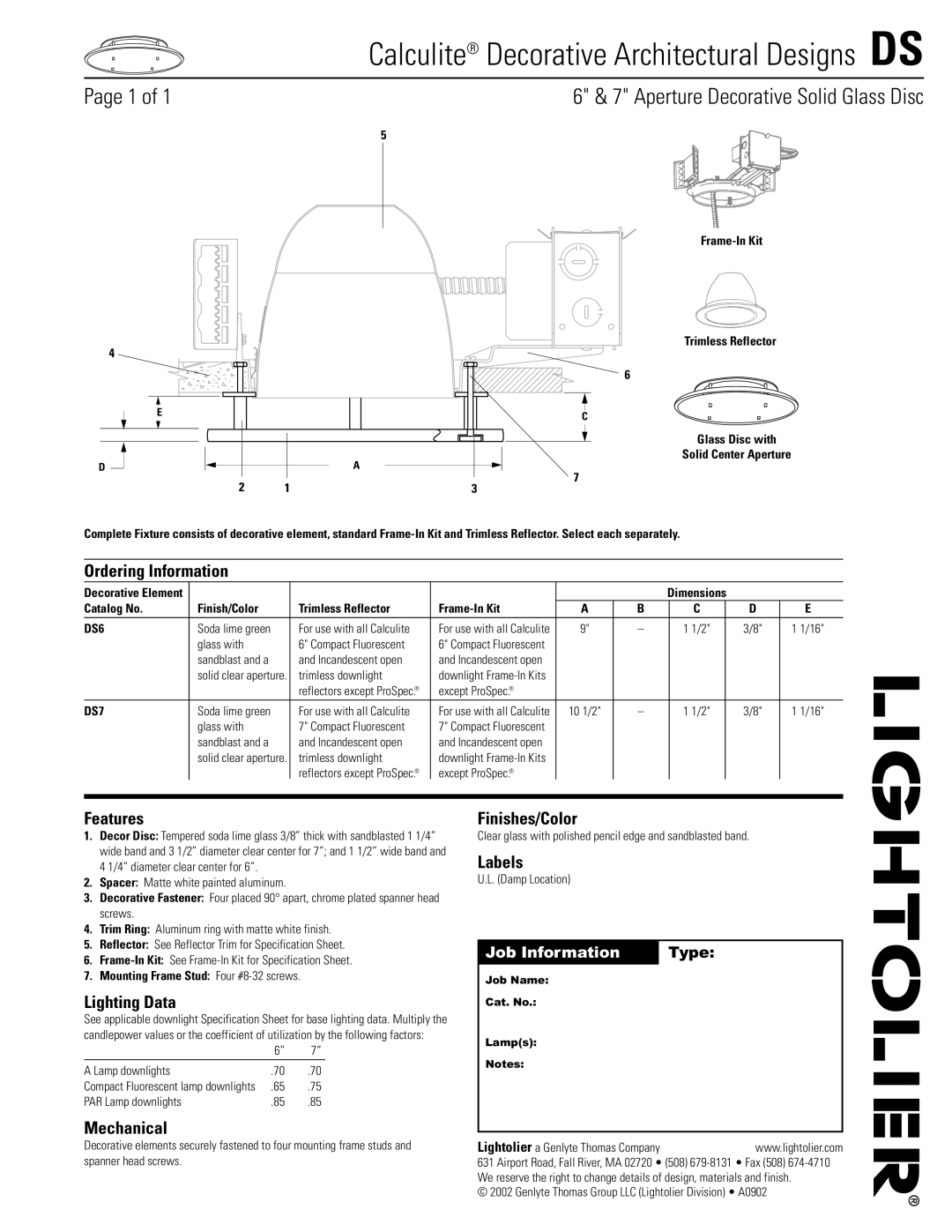

Calculite® Decorative Architectural Designs DS

Page 1 of 1

6" & 7" Aperture Decorative Solid Glass Disc

4

E

D

5

A

2

1

3

Frame-In Kit

Trimless Reflector

6

C

Glass Disc with

Solid Center Aperture

7

Complete Fixture consists of decorative element, standard Frame-In Kit and Trimless Reflector. Select each separately.

Ordering Information

Decorative Element











Dimensions





Catalog No.

Finish/Color

Trimless Reflector

Frame-In Kit

A

B



C



D

E

DS6

Soda lime green

For use with all Calculite

For use with all Calculite

9"



1 1/2"



3/8"

1 1/16"



glass with

6" Compact Fluorescent

6" Compact Fluorescent

















sandblast and a

and Incandescent open

and Incandescent open

















solid clear aperture.

trimless downlight

downlight Frame-In Kits



















reflectors except ProSpec.®

except ProSpec.®















DS7

Soda lime green

For use with all Calculite

For use with all Calculite

10 1/2"



1 1/2"



3/8"

1 1/16"



glass with

7" Compact Fluorescent

7" Compact Fluorescent

















sandblast and a

and Incandescent open

and Incandescent open

















solid clear aperture.

trimless downlight

downlight Frame-In Kits



















reflectors except ProSpec.®

except ProSpec.®





































Features

1.Decor Disc: Tempered soda lime glass 3/8” thick with sandblasted 1 1/4” wide band and 3 1/2” diameter clear center for 7”; and 1 1/2” wide band and 4 1/4” diameter clear center for 6”.

2.Spacer: Matte white painted aluminum.

3.Decorative Fastener: Four placed 90° apart, chrome plated spanner head screws.

4.Trim Ring: Aluminum ring with matte white finish.

5.Reflector: See Reflector Trim for Specification Sheet.

6.Frame-In Kit: See Frame-In Kit for Specification Sheet.

7.Mounting Frame Stud: Four #8-32 screws.

Lighting Data

See applicable downlight Specification Sheet for base lighting data. Multiply the candlepower values or the coefficient of utilization by the following factors:

6” 7”

A Lamp downlights

.70

.70

Compact Fluorescent lamp downlights

.65

.75

PAR Lamp downlights

.85

.85

Mechanical

Decorative elements securely fastened to four mounting frame studs and spanner head screws.

Finishes/Color

Clear glass with polished pencil edge and sandblasted band.

Labels

U.L. (Damp Location)

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Page 1
Image 1
Lightolier specifications Calculite Decorative Architectural Designs DS, Aperture Decorative Solid Glass Disc

DS specifications
