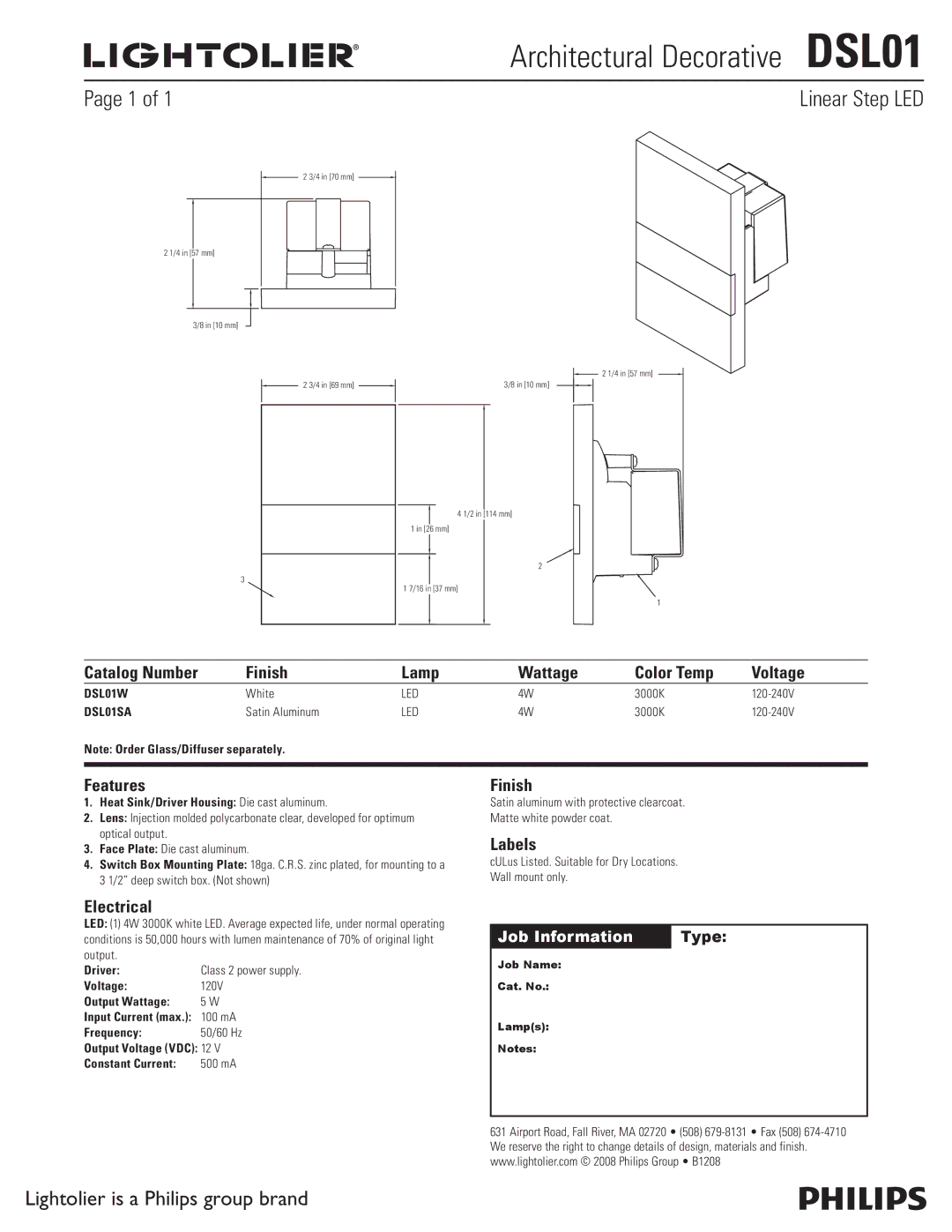

| Architectural Decorative DSL01 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Linear Step LED |
2 3/4 in [70 mm]
2 1/4 in [57 mm]
3/8 in [10 mm]
2 3/4 in [69 mm] |
| 3/8 in [10 mm] |
|
|
|
4 1/2 in [114 mm]
1 in [26 mm]
2
3
1 7/16 in [37 mm]
2 1/4 in [57 mm]
1
Catalog Number | Finish | Lamp | Wattage | Color Temp | Voltage |
DSL01W | White | LED | 4W | 3000K | |
DSL01SA | Satin Aluminum | LED | 4W | 3000K |
Note: Order Glass/Diffuser separately.
Features
1.Heat Sink/Driver Housing: Die cast aluminum.
2.Lens: Injection molded polycarbonate clear, developed for optimum optical output.
3.Face Plate: Die cast aluminum.
4.Switch Box Mounting Plate: 18ga. C.R.S. zinc plated, for mounting to a 3 1/2” deep switch box. (Not shown)
Finish
Satin aluminum with protective clearcoat. Matte white powder coat.
Labels
cULus Listed. Suitable for Dry Locations. Wall mount only.
Electrical
LED: (1) 4W 3000K white LED. Average expected life, under normal operating conditions is 50,000 hours with lumen maintenance of 70% of original light
output. |
|
Driver: | Class 2 power supply. |
Voltage: | 120V |
Output Wattage: | 5 W |
Input Current (max.): | 100 mA |
Frequency: | 50/60 Hz |
Output Voltage (VDC): 12 V | |
Constant Current: | 500 mA |
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
