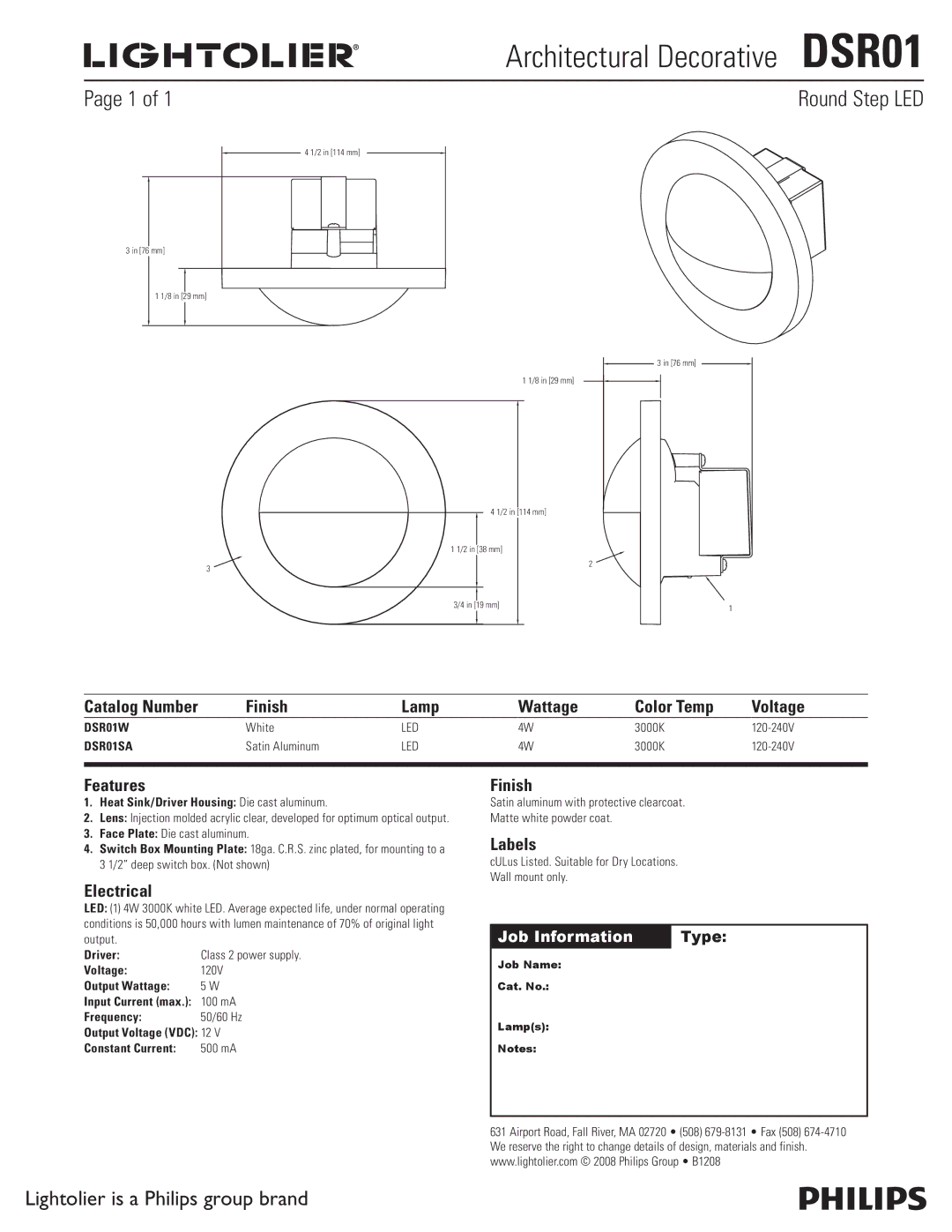

Architectural Decorative  DSR01

Page 1 of 1

Round Step LED

4 1/2 in [114 mm]

3 in [76 mm]

1 1/8 in [29 mm]

3 in [76 mm]

1 1/8 in [29 mm]

4 1/2 in [114 mm]

1 1/2 in [38 mm]

3

2



3/4 in [19 mm]

1



Catalog Number

Finish

Lamp

Wattage

Color Temp

Voltage

DSR01W

White

LED

4W

3000K

120-240V

DSR01SA

Satin Aluminum

LED

4W

3000K

120-240V













Features

1.Heat Sink/Driver Housing: Die cast aluminum.

2.Lens: Injection molded acrylic clear, developed for optimum optical output.

3.Face Plate: Die cast aluminum.

4.Switch Box Mounting Plate: 18ga. C.R.S. zinc plated, for mounting to a 3 1/2” deep switch box. (Not shown)

Electrical

LED: (1) 4W 3000K white LED. Average expected life, under normal operating conditions is 50,000 hours with lumen maintenance of 70% of original light

output.



Driver:

Class 2 power supply.

Voltage:

120V

Output Wattage:

5 W

Input Current (max.):

100 mA

Frequency:

50/60 Hz

Output Voltage (VDC): 12 V

Constant Current:

500 mA

Finish

Satin aluminum with protective clearcoat. Matte white powder coat.

Labels

cULus Listed. Suitable for Dry Locations. Wall mount only.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • B1208

Lightolier is a Philips group brand
