Lightolier EXS2GFSVA2U4BX Options/Accessories, Specifications Continued, Job Information

Section 1A/Folio F60-10

SILVERESCENT EXS2GFSVA2U4BX

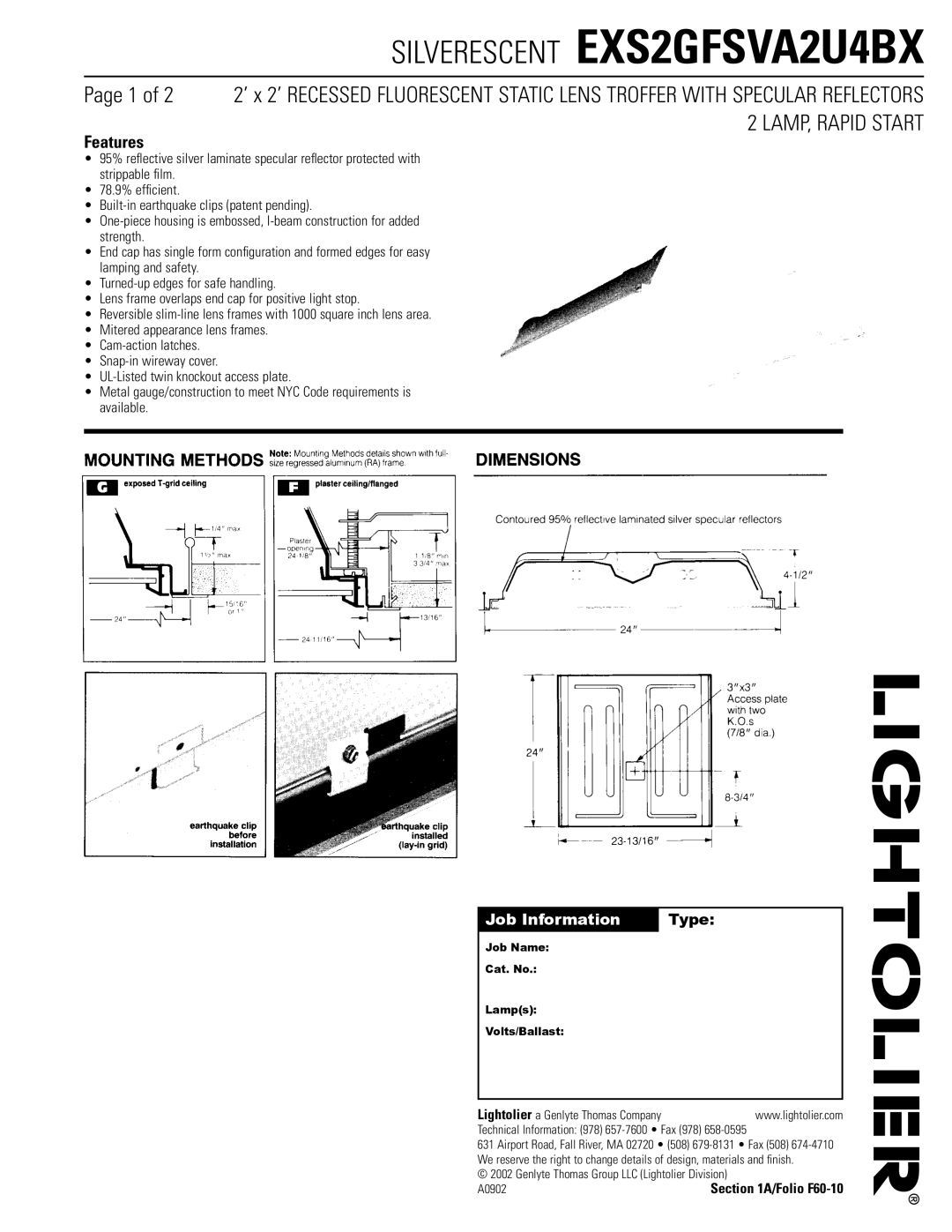

Page 2 of 2 2’ x 2’ RECESSED FLUORESCENT STATIC LENS TROFFER WITH SPECULAR REFLECTORS 2 LAMP, RAPID START

NOTE To meet NYC Code requirements, prefix catalog number with (NY). For NYC, some construction features do not apply

OPTIONS/ACCESSORIES

SPECIAL LENSES: Substitute VB for .125” nominal pattern 12 with 7.8 oz aver- age weight per square foot. Substitute VI for .125” nominal pattern 12 with 6.8 oz average weight per square foot.

ACCESS PLATES: Top wiring access plate is shipped with fixture as standard. When access plates are required In advance for wiring convenience, specify separately. Order Catalog Number ACP2.

CONTINUOUS ROW INSTALLATION: For F type fixtures, half-width flanges are required between fixtures. Order Catalog Number 2FC trim (each joint). PLASTER FRAMES: F type fixtures do not include plaster frames. For individual or continuous mounting, specify PF24 universal frame per fixture.

ELECTRICAL WIRING OPTIONS: Consult factory.

FUSING:. Internal fast-blow fusing SUFFIX: GLR Internal slow-blow fusing SUFFIX: GMF

RADIO INTERFERENCE FILTER: 120 or 277volt, 50 or 60 Hz One per fixture

standard SUFFIX: RF.

SPECIFICATIONS

PERFORMANCE: In an installation of 2 lamp 40W Iuminaires in a room cavity ratio of 1, with reflectance 80% ceiling, 50% wall, 20% floor, the C.U. shall not be less than .84. To reduce glare, the VCP shall not be less than 40 either lengthwise or crosswise (at 100fc level) and the average brightness at 65° shall not exceed 920 footlamberts, To control veiling reflections, Iuminaire output In the 30°-90° zone shall be not less than 67.5%.

SPECIFICATIONS (CONTINUED)

MATERIALS: Chassis parts are die-formed code gauge cold rolled steel. Housing is embossed for rigidity wlfh all edges turned-up for safe handllng. Lens frames — (FS) flush full-size steel frame, (RA) splay regressed full-size aluml- num frame

FINISH: Chassis white baked acrylic enamel. Phosphate undercoating.

REFLECTOR: Silver metalized film with 95% reflectivity (94% mlnlmum), Iaminated to steel by a thermoset cross Iinked adhesive that eliminates delam- mation. Surface is protected during handling by a strippable plastlc film LENS: Extruded virgin acrylic, 3/16“ square based female cones, running 45° to the panel edge, .095” nominal thickness (similar to pattern 12)

ELECTRICAL: Rapid start HPF, BX (Biax Type) thermally protected class “P” bal- last C.B.M. certified by E.T.L If K.O. is within 3“ of ballast, use wire suitable for at least 90°.

LABELS: I.B.E.W. Listed by Underwriters Laboratories.

Job Information	Type:
Lightolier a Genlyte Thomas Company	www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) A0902
