14 Cell Louver, 90% Downlight, 10% Uplight



48" Length 4 Lamp T5/T8, 96" Length 4 Lamp T5/T8 in Tandem

Features

•Energy savings replacement for HID Low or High Bay.

•Ideal for stores, schools, labs, warehouses.

•90% downlight, 10% uplight.

•89.0% efficient (4 lamp 54W T5). 79.4% efficient (4 lamp 32W T8).

•1.1 spacing mounting ratio (4 lamp 54W T5).

•1.0 spacing mounting ratio (4 lamp 32W T8).

•Can be pendant or surface mounted.

•48" or 96" modular lengths.

•95% reflective Specular Aluminum top Reflector.

•20 gauge steel housing. 18 gauge steel ends.

•22 gauge steel side reflectors.

•Flat white acrylic baked enamel, post painted.

•Louver can hinge from either side.

•Louver safety chain standard.

•Removeable upper end cap for thru wiring.

•Can be stem or cable mounted at fixture joints.

•K.O. in upper end cap for occupancy sensor.

•Heavy duty coupler available.

•Meets NYC Code requirements.

Mounting Methods

can be stem mounted at fixture joints

can be suspended with chain hanger sets Catalog No.

AH5 CSP

optional occupancy sensor see folio OA60-10

can be cable mounted at fixture joints

heavy duty coupler, required for continuous row mounting.

Catalog No.

EY COUPLER

Luminaire-Mounted Motion Sensor

360° coverage, up to 45 ft. mounting distance. Field installed. Catalog Number: FHB360.

•Line voltage accepts 120 through 347 volt applications.

•Uses passive infrared (PIR) technology shielded by a fresnel lens; upon detection of infrared energy levels, the sensor is triggered and switches the light on.

•Light shuts off after a time delay unit that is factory preset at 10 minutes, manually adjustable from 30 sec. to 20 min. using tool included.

•Mounts on either end using 7/8" knockouts provided.

Dimensions

5-3/16"

(132mm)

8-15/16" (227mm)

4-3/8”

S Hook 7/8” Dia. K.O. (111mm) Slots (8)

3-1/8”

(81mm)

11/16” Dia. K.O.











(2 Places)



39-3/8” (999mm)











41-3/4” (1059mm)













48” (1220mm)

















4-3/8”

















7/8” Dia. K.O.

(111mm)

S Hook









3-1/8”

Slots (8)



(2 places)







(81mm)













11/16” Dia.





















K.O.











(2 Places)













48” (1220mm)





















87-3/8” (2219mm)





















89-3/4" (2279mm)





















96" (2441mm)















Job Information

Type:

Job Name:



Cat. No.:



Lamp(s):



Volts/Ballast:







1/06

Lightolier a Genlyte company

www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2005 a Genlyte company

Section 5/Folio K60-25

Page 1 Page 2
Page 1

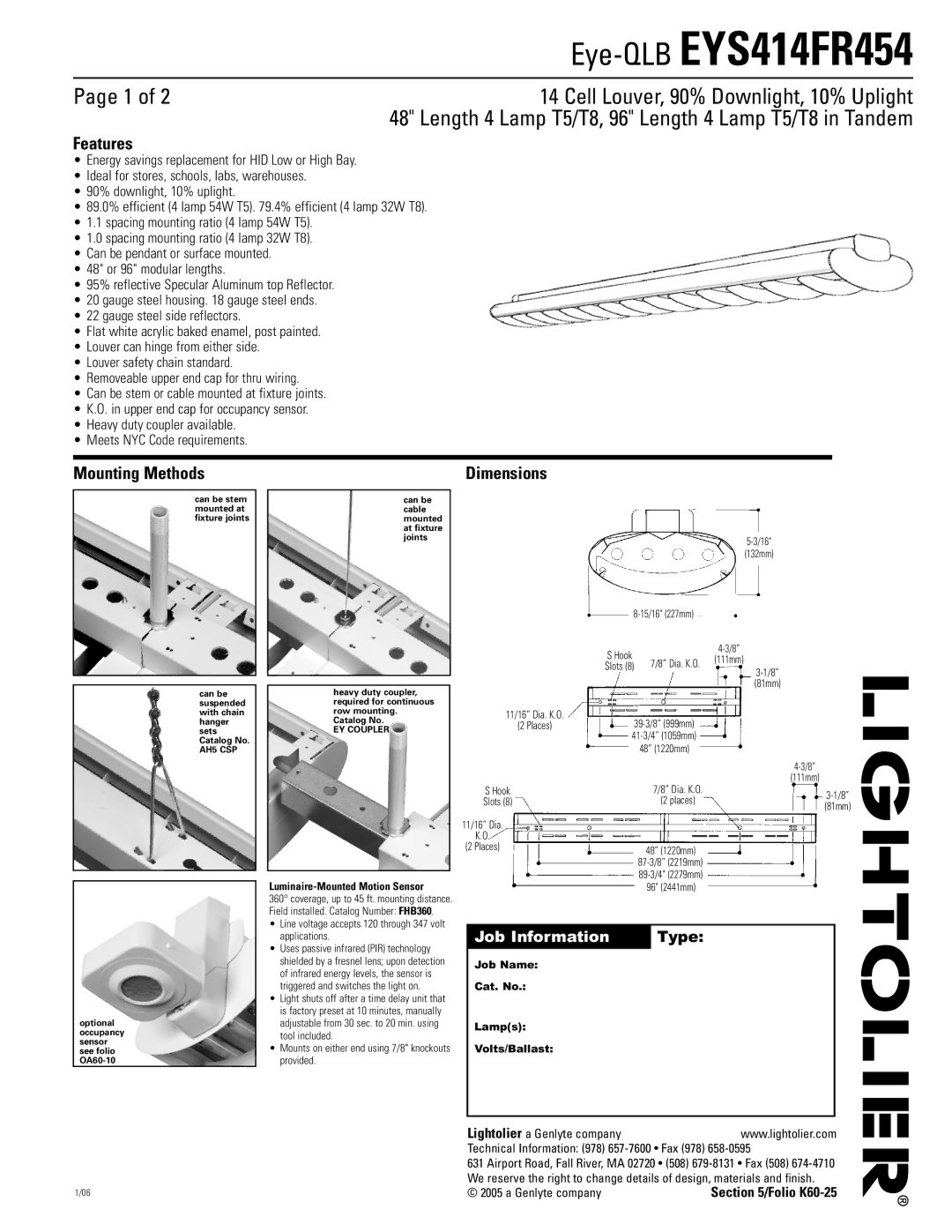

Image 1
