	Lighting Systems F7000-24

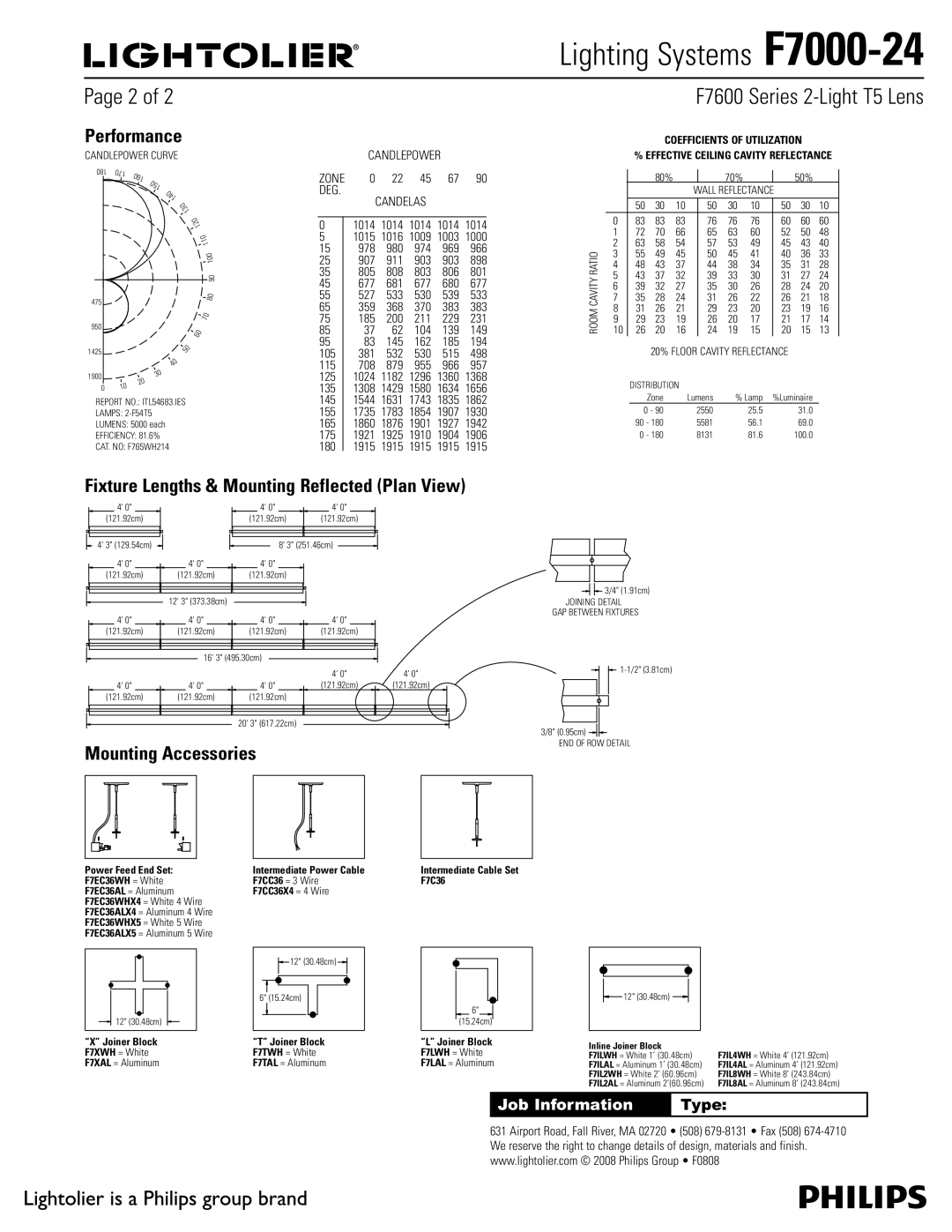

1BHF  PG 	' 4FSJFT -JHIU 5 -FOT
	Armstrong® 5FDI;POFÜ $PNQBUJCMF

6.88” (17.48cm)

54

1.63” (4.14cm)

6

1

Ordering InformationFamilySeries

F7	6
	6 = Lens

Complete Ordering Instructions below.

Type

5

5 = Extruded

Lens

Lamps

2

2 = 2 Lamps

Color		Wattage	Voltage
AL = Aluminum	1	= 28W	1 = 120v
WH = White	2	= 54W	2 = 277v
	3 = 28W Dimming
	4	= 28W EM
	5 = 54W Dimming
	6	= 54W EM

Length

4

4= 4’ (121.92cm)

Options

X4 = 4 Through

Wires

X5 = 5 Through

Wires

DS = Dual Switch

Features

1.Housing: Single piece of high purity extruded aluminum, a portion from recycled material.

2.Housing End: Die-cast aluminum, welded in place.

3.End Cap: Die-cast aluminum. Encloses the suspension cable and power feed cord for the end of the run.

4.Lamps: F28T5 or F54T5HO as specified. By others. Installed from the ceil- ing side of the luminaire.

5.Ballast: Electronic. Meets ANSI starting, end-of-life protection and sound rating specifications. Low THD.

6.Shielding: Extruded acrylic with suspended bead texture; inset metal rod.

Electrical

Connections: 18 gauge pre-wired with polarized cannon plug connectors for simultaneous mechanical/electrical connection.

Emergency Battery Pack: 90 minute operation, 700 lumens for 54W and 520 lumens for 28W.

Dimming: Advance Mark X standard (no additional wires required); use

compatible dimmer. Dimming ballasts using additional control wires (eg Lutron Hi-Lume or ECO-10, Osram) can be used; consult factory and use X4

or X5 power feeds with additional leads, as appropriate. Ballast not to exceed 1.25” (3.18cm) wide by 1.20” (3.05cm) high.

iGEN: F7000 accepts iGEN (DALI) with supplemental 2-wire control technology. Use with X5 power feed.

Power Tray: Code-gauge, die-formed steel, pre-paint white enamel finish; secured by quarter-turn fasteners for easy access to wiring. Holds ballasts, sock- ets, and wiring. Accepts ballasts up to 1.25” (3.18cm) wide by 1.20” (3.05cm) high. Power Feeds: Standard 18/3 power feed is rated for 10 amps. X4 power feed

is 18/4 and is rated for 7 amps. Observe amperage limitations and

provide additional Intermediate Power Cables, as required. When providing

an additional power feed, the through wiring from the previous module must be disconnected from the cannon plug and capped.

Dual Switching: Use DS option for separate switching of the lamp rows. includes a 4th through wire. Use X4 power feed.

Factory installed ballast disconnect allows the ballast to be disconnected from and reconnected to incoming power under load without turning the entire circuit off.

Finish

Powder-coated, baked enamel, white or aluminum, as specified.

Mounting

Cable suspension is on 48” (121.92cm) and 96” (243.84cm) centers and consists of

a4 1/2” (11.43cm) diameter canopy finished white enamel and a 1/16” (0.16cm) diameter stainless steel aircraft cable adjustable up to 36” (91.44cm).

Labels

UL, cUL and I.B.E.W.

Ordering Instructions

Individual Fixtures:

1.Order one MODULE.

2.Order one POWER FEED END SET.

Continuous Rows:

1.Order the appropriate number of MODULES for the complete run.

2.Order one POWER FEED END SET.

3.Order one INTERMEDIATE CABLE SET per MODULE minus one.

4.For runs that exceed amperage limits, order the appropriate number of CABLE/CORD SETs.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:


"JSQPSU
3PBE
'BMM
3JWFS
."

t


t
'BY



We reserve the right to change details of design, materials and finish.
