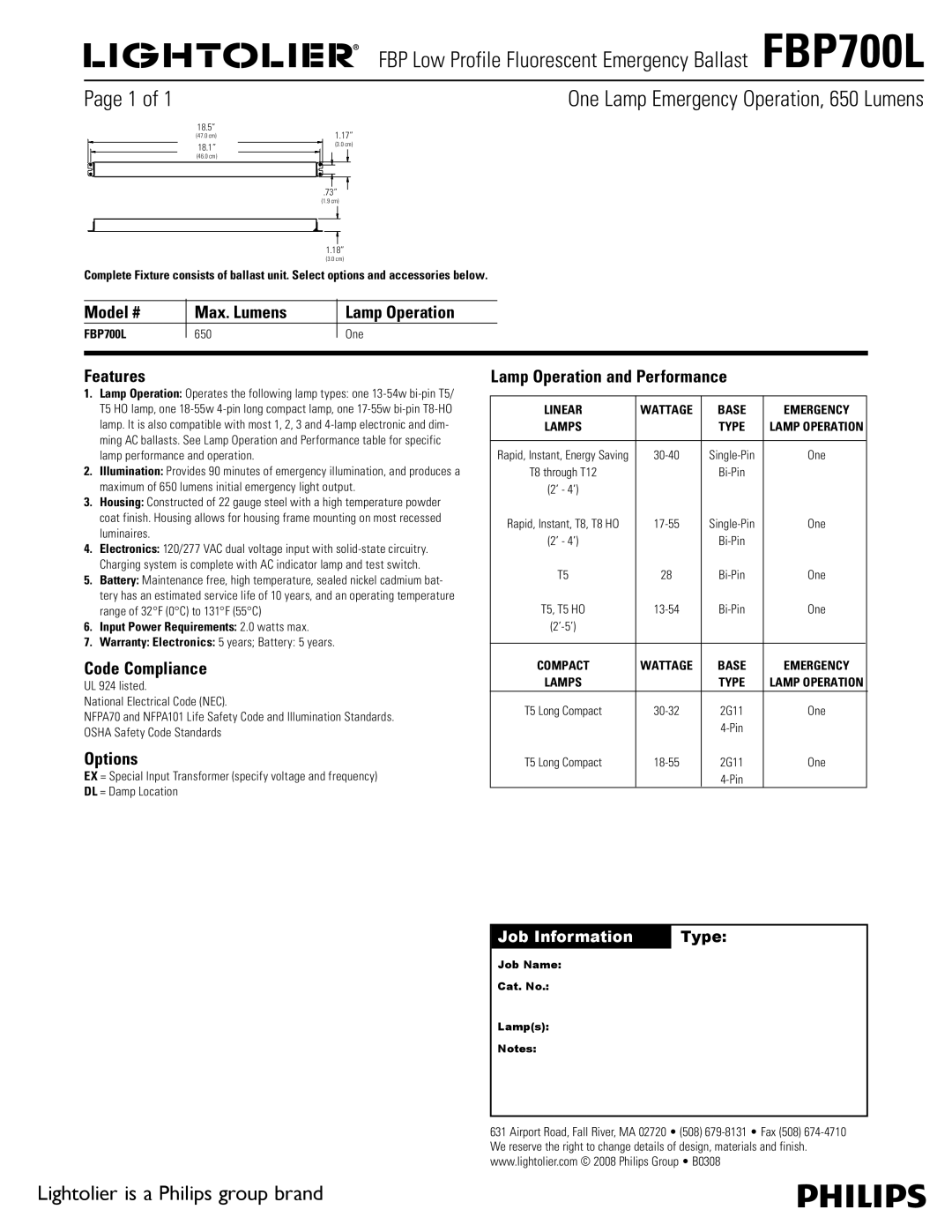

FBP Low Profile Fluorescent Emergency BallastFBP700L































































































































































Page 1 of 1

























One Lamp Emergency Operation, 650 Lumens

















18.5”























1.17”















(47.0 cm)







































18.1”























(3.0 cm)



























































(46.0 cm)



























.73”

(1.9 cm)

1.18”

(3.0 cm)

Complete Fixture consists of ballast unit. Select options and accessories below.

Model #



Max. Lumens



Lamp Operation



FBP700L



650



One

















Features

1.Lamp Operation: Operates the following lamp types: one 13-54w bi-pin T5/ T5 HO lamp, one 18-55w 4-pin long compact lamp, one 17-55w bi-pin T8-HO lamp. It is also compatible with most 1, 2, 3 and 4-lamp electronic and dim- ming AC ballasts. See Lamp Operation and Performance table for specific lamp performance and operation.

2.Illumination: Provides 90 minutes of emergency illumination, and produces a maximum of 650 lumens initial emergency light output.

3.Housing: Constructed of 22 gauge steel with a high temperature powder coat finish. Housing allows for housing frame mounting on most recessed luminaires.

4.Electronics: 120/277 VAC dual voltage input with solid-state circuitry. Charging system is complete with AC indicator lamp and test switch.

5.Battery: Maintenance free, high temperature, sealed nickel cadmium bat- tery has an estimated service life of 10 years, and an operating temperature range of 32°F (0°C) to 131°F (55°C)

6.Input Power Requirements: 2.0 watts max.

7.Warranty: Electronics: 5 years; Battery: 5 years.

Code Compliance

UL 924 listed.

National Electrical Code (NEC).

NFPA70 and NFPA101 Life Safety Code and Illumination Standards. OSHA Safety Code Standards

Options

EX = Special Input Transformer (specify voltage and frequency) DL = Damp Location

Lamp Operation and Performance

LINEAR

WATTAGE

BASE

EMERGENCY

LAMPS



TYPE

LAMP OPERATION









Rapid, Instant, Energy Saving

30-40

Single-Pin

One

T8 through T12



Bi-Pin



(2’ - 4’)







Rapid, Instant, T8, T8 HO

17-55

Single-Pin

One

(2’ - 4’)



Bi-Pin



T5

28

Bi-Pin

One

T5, T5 HO

13-54

Bi-Pin

One

(2’-5’)







COMPACT

WATTAGE

BASE

EMERGENCY

LAMPS



TYPE

LAMP OPERATION

T5 Long Compact

30-32

2G11

One





4-Pin



T5 Long Compact

18-55

2G11

One





4-Pin



Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • B0308

Lightolier is a Philips group brand
