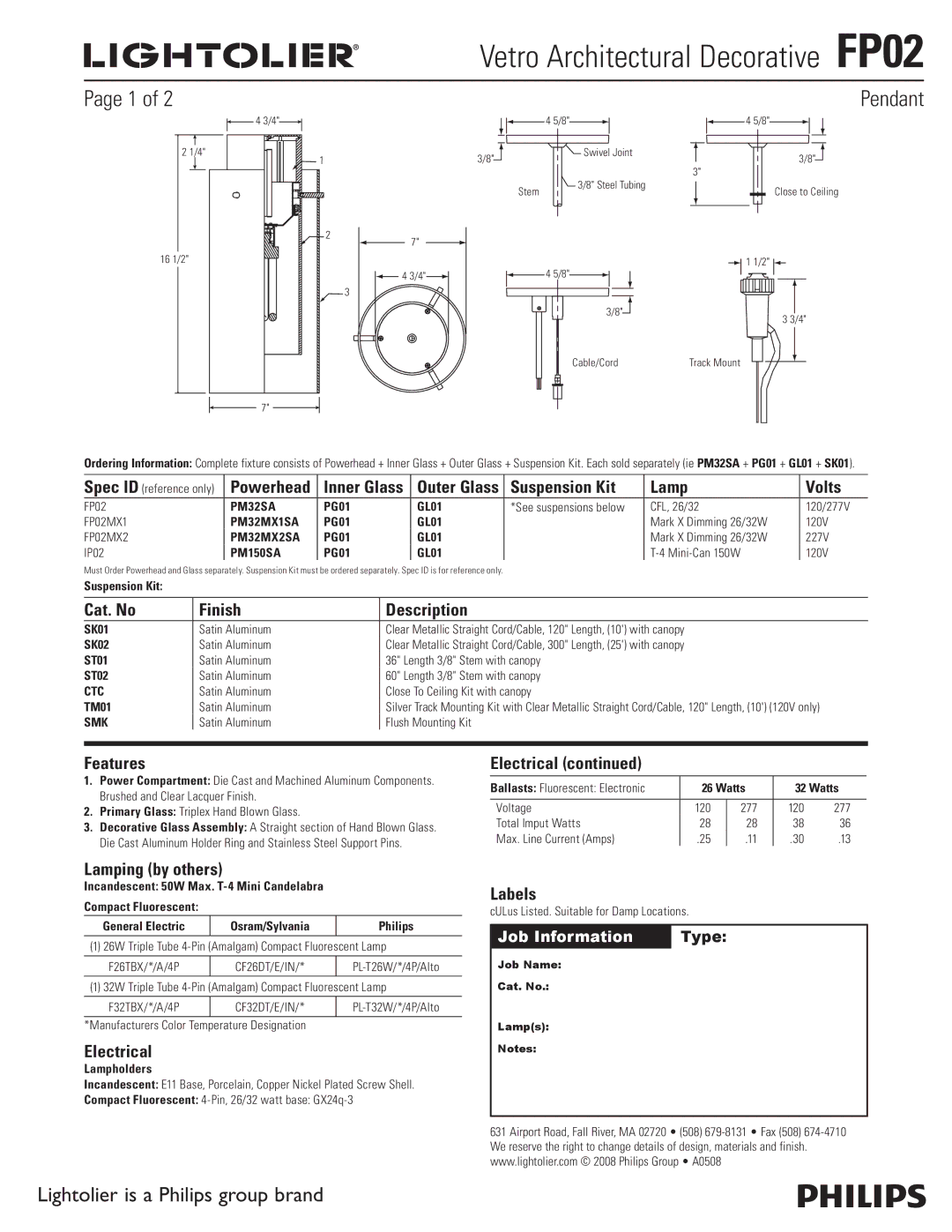

Vetro Architectural Decorative  FP02

Page 1 of 2

4 3/4"

21/4"

16 1/2"

7"

1

2

3

7"

4 3/4"

Pendant

		4 5/8"	4 5/8"
3/8"		Swivel Joint	3/8"
			3"
	Stem	3/8" Steel Tubing	Close to Ceiling
		4 5/8"	1 1/2"
		3/8"	3 3/4"
		Cable/Cord	Track Mount

Ordering Information: Complete fixture consists of Powerhead + Inner Glass + Outer Glass + Suspension Kit. Each sold separately (ie PM32SA + PG01 + GL01 + SK01).

Spec ID (reference only)	Powerhead	Inner Glass	Outer Glass	Suspension Kit	Lamp	Volts
FP02	PM32SA	PG01	GL01	*See suspensions below	CFL, 26/32	120/277V
FP02MX1	PM32MX1SA	PG01	GL01		Mark X Dimming 26/32W	120V
FP02MX2	PM32MX2SA	PG01	GL01		Mark X Dimming 26/32W	227V
IP02	PM150SA	PG01	GL01		T-4 Mini-Can 150W	120V

Must Order Powerhead and Glass separately. Suspension Kit must be ordered separately. Spec ID is for reference only.

Suspension Kit:

Cat. No	Finish	Description
SK01	Satin Aluminum	Clear Metallic Straight Cord/Cable, 120" Length, (10') with canopy
SK02	Satin Aluminum	Clear Metallic Straight Cord/Cable, 300" Length, (25') with canopy
ST01	Satin Aluminum	36" Length 3/8" Stem with canopy
ST02	Satin Aluminum	60" Length 3/8" Stem with canopy
CTC	Satin Aluminum	Close To Ceiling Kit with canopy
TM01	Satin Aluminum	Silver Track Mounting Kit with Clear Metallic Straight Cord/Cable, 120" Length, (10') (120V only)
SMK	Satin Aluminum	Flush Mounting Kit

Features

1.Power Compartment: Die Cast and Machined Aluminum Components. Brushed and Clear Lacquer Finish.

2.Primary Glass: Triplex Hand Blown Glass.

3.Decorative Glass Assembly: A Straight section of Hand Blown Glass. Die Cast Aluminum Holder Ring and Stainless Steel Support Pins.

Lamping (by others)

Incandescent: 50W Max. T-4 Mini Candelabra

Compact Fluorescent:

General Electric	Osram/Sylvania	Philips
(1) 26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F26TBX/*/A/4P	CF26DT/E/IN/*	PL-T26W/*/4P/Alto
(1) 32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F32TBX/*/A/4P	CF32DT/E/IN/*	PL-T32W/*/4P/Alto

*Manufacturers Color Temperature Designation

Electrical

Lampholders

Incandescent: E11 Base, Porcelain, Copper Nickel Plated Screw Shell.

Compact Fluorescent: 4-Pin, 26/32 watt base: GX24q-3

Electrical (continued)

Ballasts: Fluorescent: Electronic	26 Watts		32 Watts
Voltage	120	277	120	277
Total Imput Watts	28	28	38	36
Max. Line Current (Amps)	.25	.11	.30	.13

Labels

cULus Listed. Suitable for Damp Locations.

Job Information	Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
