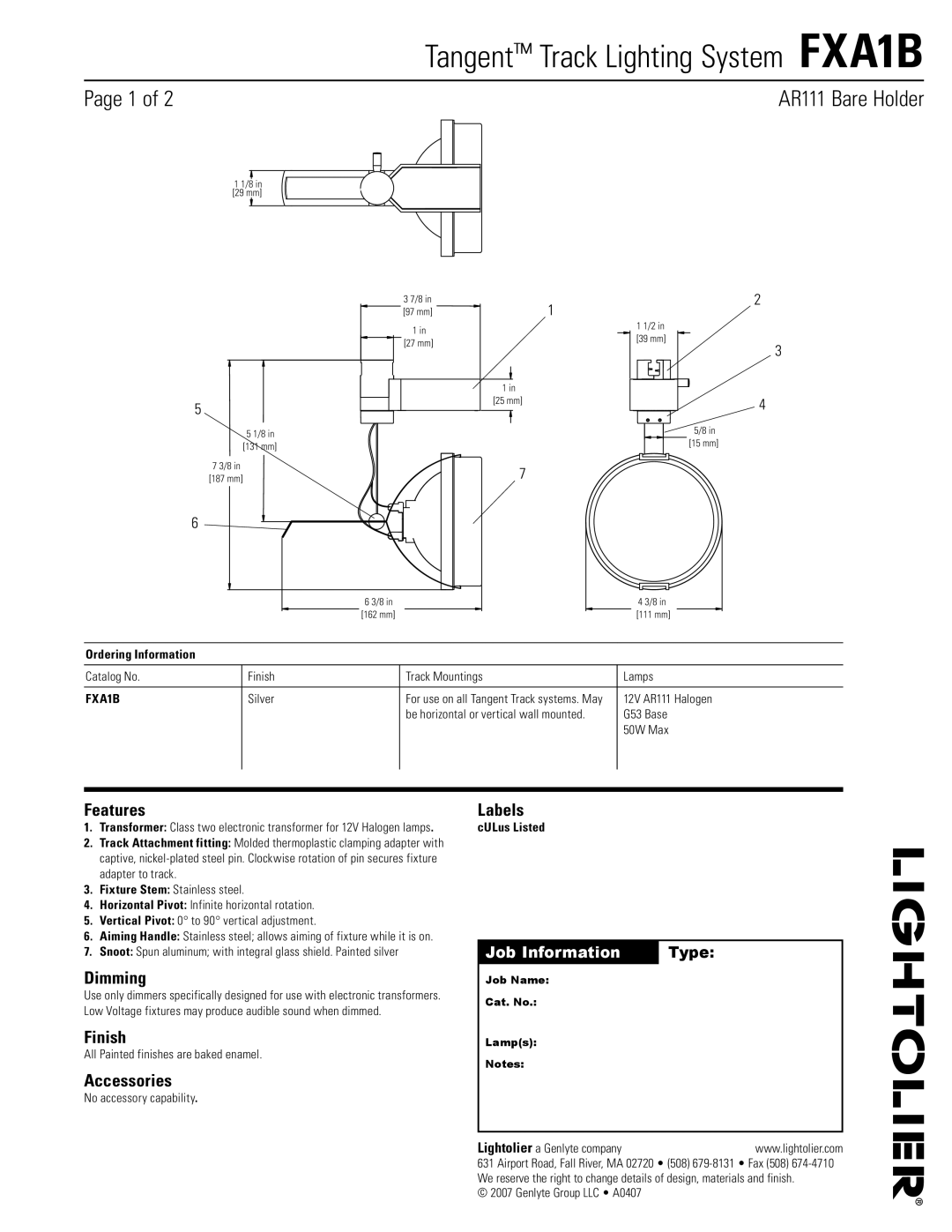

	Tangent™ Track Lighting System  FXA1B
Page of 2	AR111 Bare Holder

1 1/8 in

[29 mm]

3 7/8 in	1
[97 mm]

1 in	1 1/2 in
	[39 mm]
[27 mm]

	1 in
5	[25 mm]

2

3

4

	5 1/8 in	5/8 in
		[15 mm]
	[131 mm]
7 3/8 in		7
[187 mm]

6

		6 3/8 in		4 3/8 in
		[162 mm]		[111 mm]
Ordering Information
Catalog No.	Finish		Track Mountings	Lamps
FXA1B	Silver		For use on all Tangent Track systems. May	12V AR111 Halogen
			be horizontal or vertical wall mounted.	G53 Base
				50W Max

Features

1.Transformer: Class two electronic transformer for 12V Halogen lamps.

2.Track Attachment fitting: Molded thermoplastic clamping adapter with captive, nickel-plated steel pin. Clockwise rotation of pin secures fixture adapter to track.

3.Fixture Stem: Stainless steel.

4.Horizontal Pivot: Infinite horizontal rotation.

5.Vertical Pivot: 0° to 90° vertical adjustment.

6.Aiming Handle: Stainless steel; allows aiming of fixture while it is on.

7.Snoot: Spun aluminum; with integral glass shield. Painted silver

Dimming

Use only dimmers specifically designed for use with electronic transformers. Low Voltage fixtures may produce audible sound when dimmed.

Finish

All Painted finishes are baked enamel.

Accessories

No accessory capability.

Labels

cULus Listed

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • A0407
