INSTRUCTIONSHEETNO

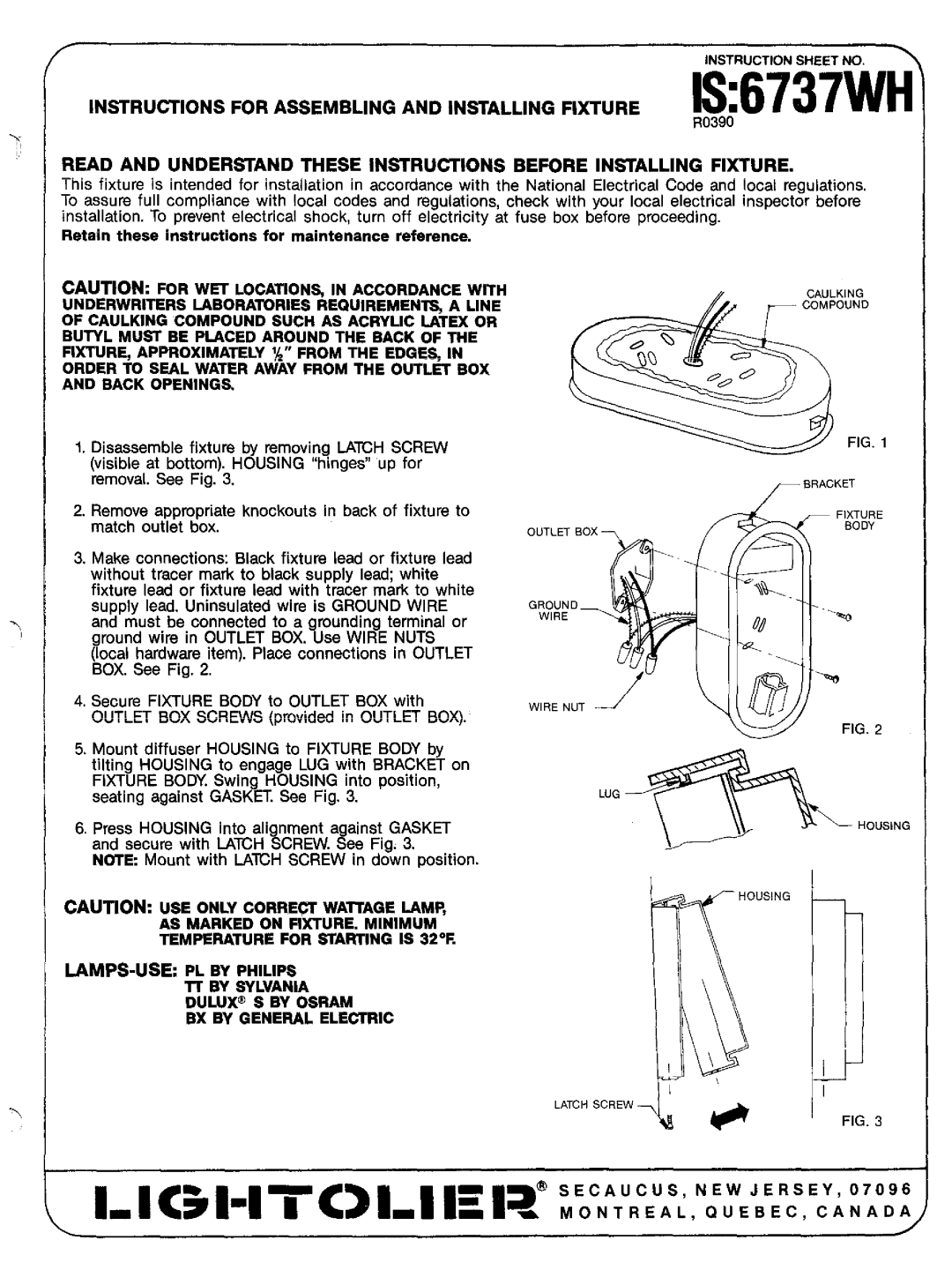

INSTRUCTIONS FOR ASSEMBLING AND INSTALLING FIXTURE IS:6737WH

R0390

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.

This fixture is intended for installation in accordance with the National Electrical Code and local regulations,

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To Drevent electrical shock, turn off electricity at fuse box before Droceedirm.

Retain these i&truotions for maintenance reference.

3

1, Diaaesemble fixture by removing LATCH SCREW

(visible at bottom). HOUSING “hinges” up for removal. See Fig. 3.

2.Remove appropriate knockouts in back of fixture to match outlet box.

3.Make connections Black fixture lead or fixture lead without tracer mark to black supply lea@ white fixtUre lead or fixture lead with tracer mark to white

eupply lead. Uninsulated wire is GROUND WIRE

and must be connected to a grounding terminal or ground wire in OUTLET BOX. Use WIRE NUTS

(local hardware item). Place connections in OUTLET BOX. See Fig. 2,

4, Secure FIXTURE BODY to OUTLET BOX with OUTLET BOX SCREWS (provided in OUTLET BOX).

5.Mount diffuser HOUSING to FIXTURE BODY by tilting HOUSING to engage LUG with BRACKET on FIXTURE BODY. Swing HOUSING into poeition, seating against GASKET See Fig. 3.

6.Press HOUSING into alignment againet GASKET and secure with LATCH SCREW. See Fig. 3.

N~E Mount with LATCH SCREW in down position.

CAUTION: USE ONLY CORRECT WAlTAGE LAMP,

AS MARKED ON FIXTURE. MINIMUM

TEMPERATURE FOR STARTING IS 32°E

LAMPS-USE PL SY PHILIPS lT BY SYLVANIA

DU LUX@ S BY OSRAM

BX BY GENERAL ELECTRIC

BRACKET

/“-

OUTLET

GROUN

WIRE

WIRE NUT — /\

FIG. 2

LUG

\

— HOUSING

m

– HOUSING .

h\ \ \

l

\’

LATCH SCREW –

I

—

FIG. 3

Page 1 Page 1
Page 1
